Product Model
vspa-b-p53u-a1
Selling Points
- 1The Festo VSPA-B-P53U-A1 offers precise control of air flow with a standard nominal flow rate of 1000 l/min, ensuring optimal performance in various industrial applications.
- 2Built with a piston gate valve design and made from die-cast aluminum, this valve provides durability and resistance to corrosion, making it suitable for demanding industrial environments.
- 3The valve can be mounted in any position, offering flexibility in system design and installation. Its compact size (26 mm width) makes it ideal for space-constrained applications.
- 4Designed to operate within Zone 2 (ATEX) and Zone 22 (ATEX) environments, this valve ensures safety in potentially explosive atmospheres. It also features a mechanical spring return for reliable operation.
- 5With a service life value of 67 million cycles, the VSPA-B-P53U-A1 is a well-tried component for safety-related applications. It adheres to ISO 13849-1 safety standards, ensuring reliability and longevity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/3, pressurized | Actuation type | Pneumatic |
Width | 26mm | Standard nominal flow rate | 1000l/min |
Pneumatic working port | Sub-base, size 26 mm according to ISO 15407-1 Connecting plate size 01 according to VDMA 24563 G1/4 | Operating pressure | -0.9bar 16bar |
Structural design | Piston gate valve | Reset method | Mechanical spring |
Nominal width | 9mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Conforms to standard | ISO 15407-1 VDMA 24563 | Type of control | Direct |

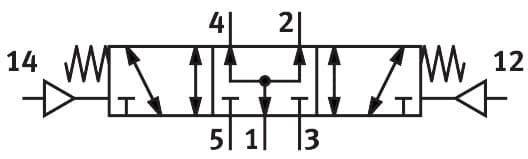

Flow direction | Reversible | Symbol | 00991022 |
Lap | Overlap | Pilot pressure | 3bar 10bar |
Flow rate of pneumatic valve | 1400l/min | Flow rate of pneumatic valve on individual sub-base | 1100l/min |
Optimized flow rate of pneumatic valve pneumatically concatenated flow | 1000l/min | Switching time off | 32ms |
On switching time | 13ms | Explosion prevention and protection | Zone 2 (ATEX) Zone 22 (ATEX) |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -10°C 60°C | Relative air humidity | 0 - 90 % |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -10°C 60°C |
Max. tightening torque for valve mounting | 1.8Nm 2.2Nm | Product weight | 180g |
Pilot air port 12 | Sub-base, size 26 mm as per ISO 15407-1 | Pilot air port 14 | Sub-base, size 26 mm as per ISO 15407-1 |
Pneumatic connection 1 | Sub-base, size 26 mm as per ISO 15407-1 | Pneumatic connection 2 | Sub-base, size 26 mm as per ISO 15407-1 |
Pneumatic connection 3 | Sub-base, size 26 mm as per ISO 15407-1 | Pneumatic connection 4 | Sub-base, size 26 mm as per ISO 15407-1 |
Pneumatic connection 5 | Sub-base, size 26 mm as per ISO 15407-1 | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Die-cast aluminum |
Material of screws | Steel Galvanized | Manufacturer ID | 546718 |
