Product Model
vspa-b-t32c-a1
Selling Points
- 1The Festo VSPA-B-T32C-A1 is a 2x3/2 closed, monostable pneumatic solenoid valve designed for precise control in industrial applications. It offers reliable and efficient operation with a standard nominal flow rate of 900 l/min, standardized to DIN 1343.
- 2This valve features pneumatic actuation, ensuring smooth and reliable operation. Its compact construction width of 26 mm makes it suitable for a variety of industrial settings where space is limited.
- 3The VSPA-B-T32C-A1 is part of the VSPA series, known for its standards-based directional control valves. It complies with all specifications in data sheets, catalogues, user documentation, and general operating conditions, ensuring high performance and reliability.
- 4Manufactured in Germany, the Festo VSPA-B-T32C-A1 is built to meet the highest standards of quality and performance. Its monostable design provides consistent and predictable valve behavior, making it ideal for applications requiring precise control.
- 5The Festo VSPA-B-T32C-A1 is available in multiples of one unit, making it easy to integrate into your industrial setup. Its availability ensures that you can always find the right quantity to meet your needs, whether you're starting a new project or scaling up an existing one.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 2x3/2, closed, monostable | Actuation type | Pneumatic |
Width | 26mm | Standard nominal flow rate | 900l/min |
Pneumatic working port | Sub-base, size 26 mm according to ISO 15407-1 Connecting plate size 01 according to VDMA 24563 G1/4 | Operating pressure | 2bar 10bar |
Structural design | Piston gate valve | Reset method | Pneumatic spring |
Nominal width | 9mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Conforms to standard | ISO 15407-1 VDMA 24563 | Type of control | Direct |

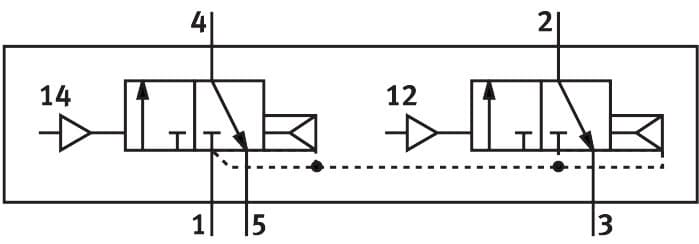

Flow direction | Non-reversible | Symbol | 00991986 |
Lap | Overlap | Pilot pressure | 2bar 10bar |
Flow rate of pneumatic valve | 1250l/min | Flow rate of pneumatic valve on individual sub-base | 1000l/min |
Optimized flow rate of pneumatic valve pneumatically concatenated flow | 900l/min | Switching time off | 28ms |
On switching time | 15ms | Explosion prevention and protection | Zone 2 (ATEX) Zone 22 (ATEX) |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -10°C 60°C | Relative air humidity | 0 - 90 % |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -10°C 60°C |
Max. tightening torque for valve mounting | 1.8Nm 2.2Nm | Product weight | 180g |
Pilot air port 12 | Sub-base, size 26 mm as per ISO 15407-1 | Pilot air port 14 | Sub-base, size 26 mm as per ISO 15407-1 |
Pneumatic connection 1 | Sub-base, size 26 mm as per ISO 15407-1 | Pneumatic connection 2 | Sub-base, size 26 mm as per ISO 15407-1 |
Pneumatic connection 3 | Sub-base, size 26 mm as per ISO 15407-1 | Pneumatic connection 4 | Sub-base, size 26 mm as per ISO 15407-1 |
Pneumatic connection 5 | Sub-base, size 26 mm as per ISO 15407-1 | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Die-cast aluminum |
Material of screws | Steel Galvanized | Manufacturer ID | 546711 |
Specifications may be subject to change without notice
