Product Model
vsva-b-b52-zh-a2-1r2l
Selling Points
- 1The VSVA-B-B52-ZH-A2-1R2L solenoid valve offers a 5/2 double solenoid function, ensuring reliable and precise control in pneumatic systems.
- 2This valve is electrically actuated, providing efficient and precise operation with a 24V DC operating voltage range.
- 3With a standard nominal flow rate of 550L/min, this valve is designed to handle high-pressure applications, making it suitable for various industrial uses.
- 4The VSVA-B-B52-ZH-A2-1R2L conforms to ISO 15407-1 and VDMA 24563 standards, ensuring compatibility with a wide range of pneumatic systems.
- 5Featuring a piston gate valve design with soft sealing principles and IP65 degree of protection, this valve is built to withstand harsh industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, bistable | Actuation type | Electrical |
Width | 18mm | Standard nominal flow rate | 550l/min |
Pneumatic working port | Sub-base, size 18 mm as per ISO 15407-1 Connecting plate size 02 according to VDMA 24563 | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Certification | C-Tick c UL us - Recognized (OL) | CE marking (see declaration of conformity) | As per EU EMC directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Degree of protection | IP65 |
Nominal width | 5mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Conforms to standard | ISO 15407-1 VDMA 24563 | Manual override | Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | External |

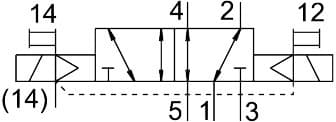

Flow direction | Reversible | Symbol | 00992941 |
Lap | Overlap | Reverse polarity protection | for all electrical connections |
Additional functions | Holding current reduction Safety shut-down | Signal status display | LED |
Pilot pressure MPa | 0.3MPa 0.8MPa | Pilot pressure | 3bar 8bar |
Flow rate of pneumatic valve | 750l/min | Flow rate of pneumatic valve on individual sub-base | 550l/min |
Optimized flow rate of pneumatic valve pneumatically concatenated flow | 550l/min | Changeover time | 10ms |
DC operating voltage range | 21.6V 26.4V | Duty cycle | 100% |
Max. positive test pulse with 0 signal | 500μs | Max. negative test pulse on 1 signal | 500μs |
Coil characteristics | 24 V DC: low-current phase 1.0 W, high-current phase 2.4 W | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
Relative air humidity | 0 - 90 % | Protection against direct and indirect contact | PELV |
Ambient temperature | -5°C 50°C | Max. tightening torque for valve mounting | 0.9Nm 1.1Nm |
Product weight | 140g | Electrical connection | 4-pin M8x1 Central plug Round design |
Type of mounting | On sub-base | Note on materials | RoHS-compliant |
Manufacturer ID | 534786 |
Specifications may be subject to change without notice
