Product Model
vsva-b-b52-zh-a2-1r5l
Selling Points

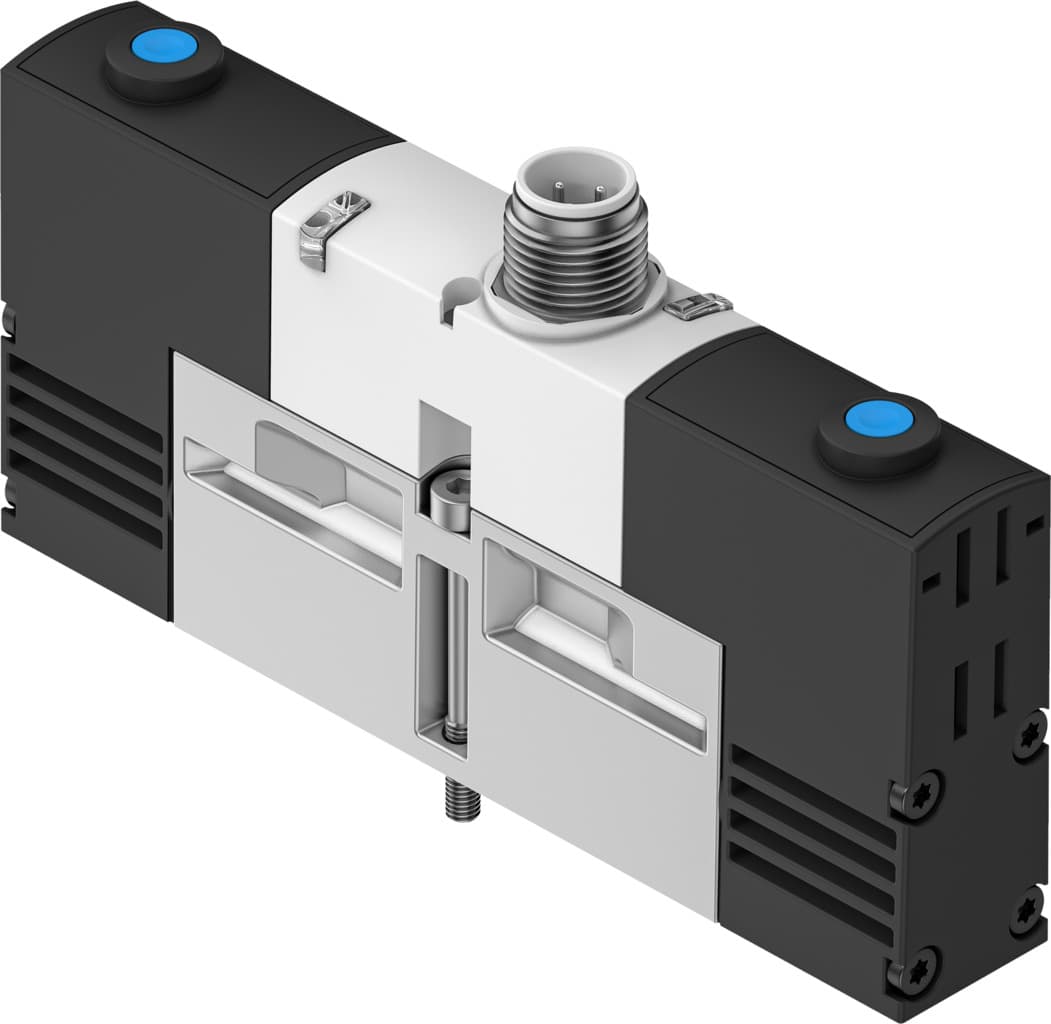

- 1The Festo VSVA-B-B52-ZH-A2-1R5L solenoid valve is a 5/2 bistable, electrically actuated valve with a standard nominal flow rate of 550 l/min, making it ideal for various pneumatic applications.
- 2This valve features a piston gate construction, ensuring robust performance and reliability. It is certified to international standards, including C-Tick, c UL us - Recognized (OL), and CE marking.
- 3The VSVA-B-B52-ZH-A2-1R5L operates within a wide temperature range of -5 °C to 50 °C and can handle relative humidity up to 90%. It also offers protection against direct and indirect contact with an IP65 rating.
- 4This solenoid valve supports reversible flow direction and comes with an external pilot air supply port. It includes additional functions like holding current reduction and safety shut-down with LED signal status display.
- 5The Festo VSVA-B-B52-ZH-A2-1R5L is designed for easy installation, with a sub-base size of 18 mm as per ISO 15407-1 and a connecting plate size 02 according to VDMA 24563. It is also RoHS-compliant.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, bistable | Actuation type | Electrical |
Width | 18mm | Standard nominal flow rate | 550l/min |
Pneumatic working port | Sub-base, size 18 mm as per ISO 15407-1 Connecting plate size 02 according to VDMA 24563 | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Certification | C-Tick c UL us - Recognized (OL) | CE marking (see declaration of conformity) | As per EU EMC directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Degree of protection | IP65 |
Nominal width | 5mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Conforms to standard | ISO 15407-1 VDMA 24563 | Manual override | Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | External |
Flow direction | Reversible | Symbol | 00992941 |
Lap | Overlap | Reverse polarity protection | for all electrical connections |
Additional functions | Holding current reduction Safety shut-down | Signal status display | LED |
Pilot pressure MPa | 0.3MPa 0.8MPa | Pilot pressure | 3bar 8bar |
Flow rate of pneumatic valve | 750l/min | Flow rate of pneumatic valve on individual sub-base | 550l/min |
Optimized flow rate of pneumatic valve pneumatically concatenated flow | 550l/min | Changeover time | 10ms |
DC operating voltage range | 21.6V 26.4V | Duty cycle | 100% |
Max. positive test pulse with 0 signal | 500μs | Max. negative test pulse on 1 signal | 500μs |
Coil characteristics | 24 V DC: low-current phase 1.0 W, high-current phase 2.4 W | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
Relative air humidity | 0 - 90 % | Protection against direct and indirect contact | PELV |
Ambient temperature | -5°C 50°C | Max. tightening torque for valve mounting | 0.9Nm 1.1Nm |
Product weight | 140g | Electrical connection | 3-pin M12x1 Central plug Round design |
Type of mounting | On sub-base | Note on materials | RoHS-compliant |
Manufacturer ID | 546779 |
Specifications may be subject to change without notice
