Product Model

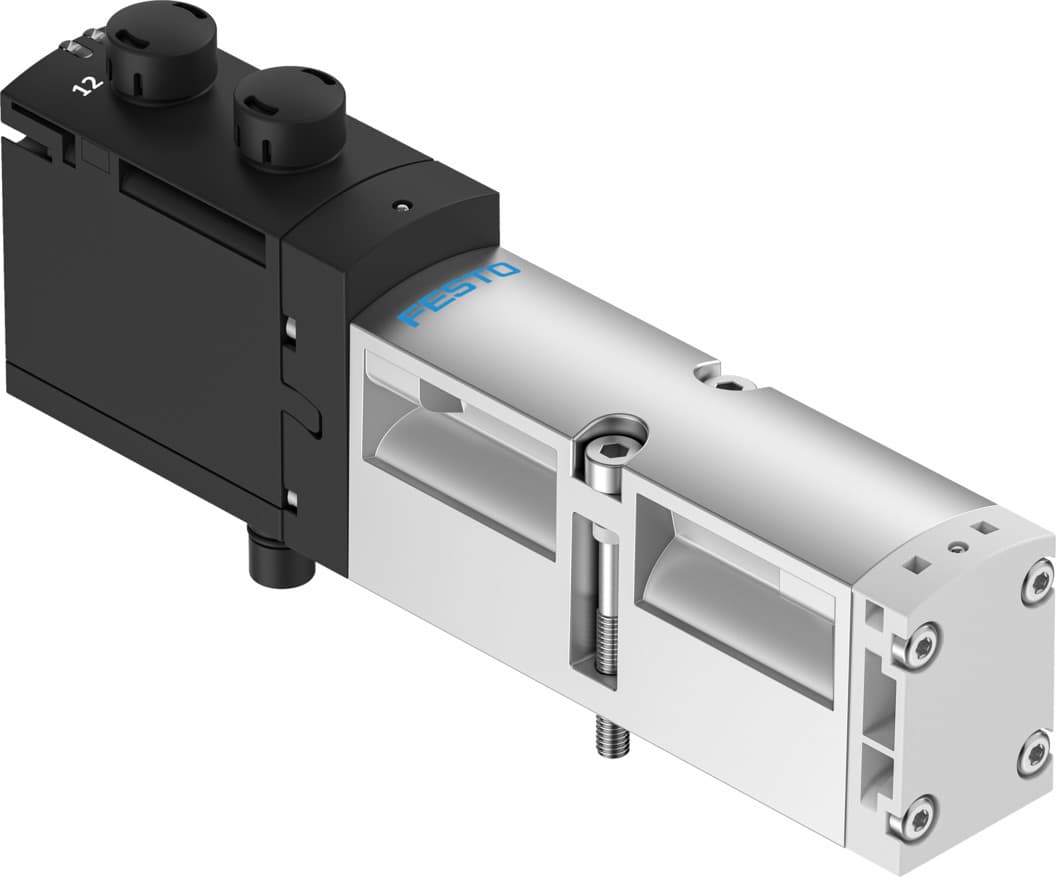

vsva-b-d52-zd-a1-1t1l
Selling Points
- 1The Festo VSVA-B-D52-ZD-A1-1T1L solenoid valve is designed to meet stringent safety standards, ensuring reliable operation in demanding industrial environments.
- 2This valve features electrical actuation, providing precise control and quick switching times, making it suitable for a wide range of applications.
- 3The 5/2 bistable-dominant function allows the valve to remain in its switching position even after signal switch-off, enhancing system stability and efficiency.
- 4With a standard nominal flow rate of 1300 L/min, the VSVA-B-D52-ZD-A1-1T1L is capable of handling high fluid flow rates, making it ideal for applications requiring significant fluid movement.
- 5Built with robust design characteristics, including vibration resistance and shock resistance, this valve ensures durability and longevity in various operating conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, bistable, dominant | Actuation type | Electrical |
Width | 26mm | Standard nominal flow rate | 1100l/min |
Pneumatic working port | Sub-base, size 26 mm according to ISO 15407-1 Connecting plate size 01 according to VDMA 24563 G1/4 | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Certification | c UL us - Recognized (OL) | Degree of protection | IP65 NEMA 4 |
Exhaust air function | With flow control option Via throttle plate Via individual sub-base | Sealing principle | Soft |
Mounting position | Any | Manual override | Detenting Non-detenting Covered |
Type of control | Pilot-controlled | Pilot air supply port | External Internal |
Flow direction | Any | Symbol | 00992937 |
Lap | Overlap | Signal status display | LED |
Pilot pressure MPa | 0.3MPa 1MPa | Pilot pressure | 3bar 10bar |
Flow rate of pneumatic valve | 1400l/min | Flow rate of pneumatic valve on individual sub-base | 1200l/min |
Optimized flow rate of pneumatic valve, pneumatically concatenated flow | 1350l/min | Optimized flow rate of pneumatic valve pneumatically concatenated flow | 1100l/min |
Changeover time | 21ms | Duty cycle | 100% |
Max. positive test pulse with 0 signal | 1500μs | Max. negative test pulse on 1 signal | 1200μs |
Max. current consumption | 72mA | Nominal operating voltage DC | 24V |
Coil characteristics | 24 V DC: 1.3 W | Surge resistance | 2.5kV |
Contamination level | 3 | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Relative air humidity | 0 - 90 % | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 50°C | Product weight | 276g |
Electrical connection | Plug-in as per ISO 15407-2 | Type of mounting | On sub-base |
Pilot air port 12/14 | Sub-base, size 26 mm as per ISO 15407-2 | Pilot exhaust air port 82/84 | Ducted Not ducted as per standard Optionally: |
Pneumatic connection 1 | Sub-base, size 26 mm as per ISO 15407-2 | Pneumatic connection 2 | Sub-base, size 26 mm as per ISO 15407-2 |
Pneumatic connection 3 | Sub-base, size 26 mm as per ISO 15407-2 | Pneumatic connection 4 | Sub-base, size 26 mm as per ISO 15407-2 |
Pneumatic connection 5 | Sub-base, size 26 mm as per ISO 15407-2 | Note on materials | RoHS-compliant |
Seals material | FPM HNBR NBR | Housing material | Die-cast aluminum PA |
Material of screws | Steel, galvanized | Manufacturer ID | 539157 |
Specifications may be subject to change without notice
