Product Model
vsva-bk-m52-md-d1-1b2
Selling Points

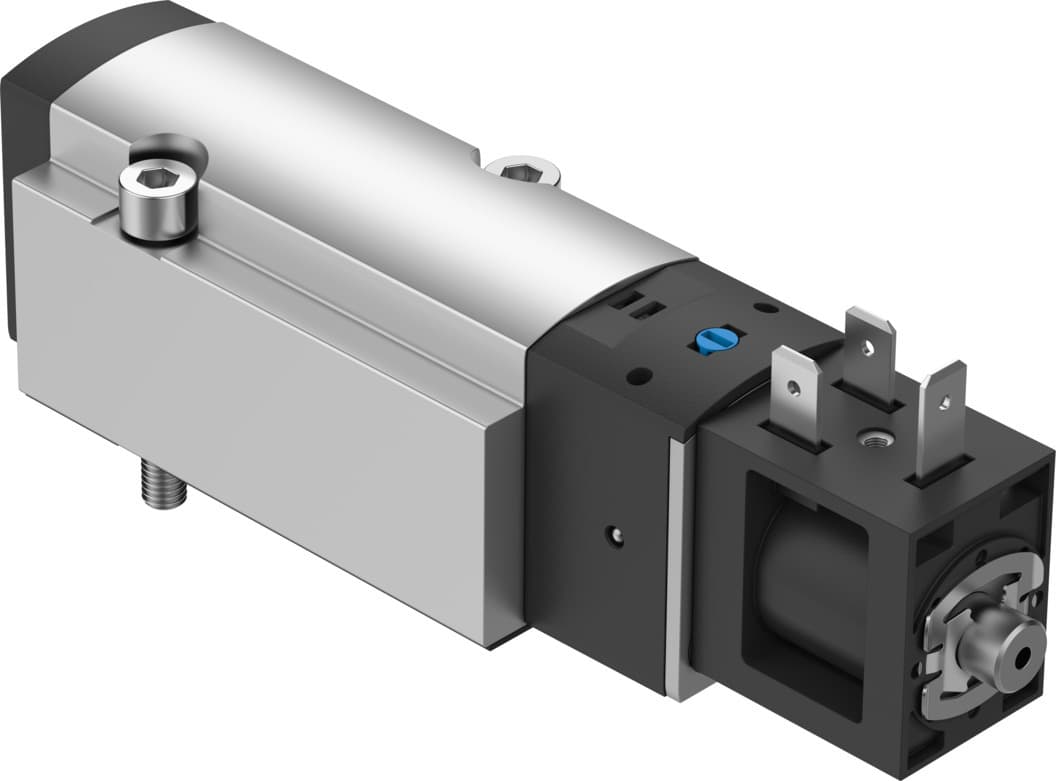

- 1The Festo VSVA-BK-M52-MD-D1-1B2 is a 5/2-way monostable solenoid valve, ensuring precise control and reliable operation in various industrial applications.
- 2With a standard nominal flow rate of 1200 l/min and a valve size of 42 mm, this valve is ideal for high-flow applications, providing efficient pneumatic performance.
- 3The valve operates at 24V DC, with a permissible voltage fluctuation of +/- 10%, making it suitable for a wide range of electrical systems.
- 4Designed with a piston slide and sealing ring, this valve offers soft mounting and excellent sealing principles, ensuring minimal leakage and optimal performance.
- 5The Festo VSVA-BK-M52-MD-D1-1B2 meets stringent standards, including ISO 5599-1 and VDMA24364 zone III, ensuring high-quality construction and reliability in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Width | 38mm | Valve size | 42mm |
Standard nominal flow rate | 1200l/min | Pneumatic working port | Sub-base, size 1 according to ISO 5599-1 |
Operating voltage | 24V DC | Operating pressure | 3bar 8bar |
Structural design | Piston slide with sealing ring | Reset method | Mechanical spring |
Degree of protection | IP65 With plug socket as per IEC 60529 | Nominal width | 6.3mm |
Width dimension | 43mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Conforms to standard | ISO 5599-1 | Manual override | Detenting Non-detenting |
ISO code | 152 | Type of control | Pilot-controlled |
Pilot air supply port | Internal | Flow direction | Non-reversible |
Symbol | 00991003 | Lap | Underlap |
Signal status display | With accessories | b-value | 0.26 |
C value | 5.88l/sbar | Flow rate of pneumatic valve | 1343l/min |
Flow rate of pneumatic valve on individual sub-base | 1342l/min | Optimized flow rate of pneumatic valve pneumatically concatenated flow | 1313l/min |
Switching time off | 20.9ms | On switching time | 19.9ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 2500μs |
Max. negative test pulse on 1 signal | 1100μs | Nominal operating voltage DC | 24V |
Coil characteristics | 24 V DC: 3.3 W | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
Temperature of medium | -5°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 50°C | Max. tightening torque for valve mounting | 5Nm |
Product weight | 324g | Electrical connection | Form B As per industrial standard (11 mm) |
Type of mounting | On sub-base | Venting hole connection | Not ducted |
Pneumatic connection 1 | Sub-base, size 1 as per ISO 5599-1 | Pneumatic connection 2 | Sub-base, size 1 as per ISO 5599-1 |
Pneumatic connection 3 | Sub-base, size 1 as per ISO 5599-1 | Pneumatic connection 4 | Sub-base, size 1 as per ISO 5599-1 |
Pneumatic connection 5 | Sub-base, size 1 as per ISO 5599-1 | Note on materials | RoHS-compliant |
Seals material | HNBR NBR | Housing material | Wrought aluminum alloy |
Piston slide material | Wrought aluminum alloy | Material of screws | Steel, galvanized |
Manufacturer ID | 8166594 |
Specifications may be subject to change without notice
