Product Model

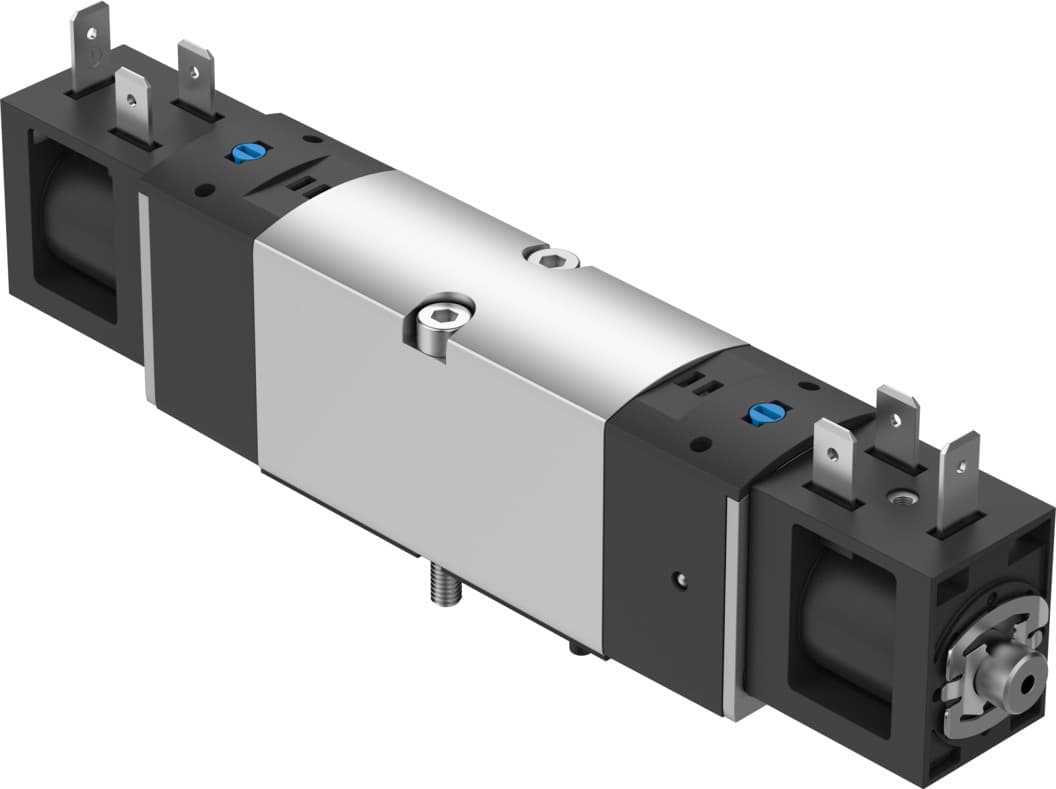

vsva-bk-p53e-d-a1-1b2
Selling Points
- 1High-Performance Valve: The Festo VSVA-BK-P53E-D-A1-1B2 solenoid valve offers a standard nominal flow rate of 900 l/min, ensuring efficient operation in various industrial settings.
- 2Electric Actuation: With electric actuation, this valve provides fast and reliable control, making it suitable for applications requiring precise timing and minimal downtime.
- 3Compact Design: The valve measures 26 mm in size, making it a compact solution for space-constrained environments while maintaining high performance.
- 4Robust Construction: Built with a piston slide and sealing ring, this valve ensures long-lasting operation under various operating pressures (0.3 MPa to 0.8 MPa) and temperatures (-5°C to 50°C).
- 5Compliance and Safety: The VSVA-BK-P53E-D-A1-1B2 conforms to ISO 15407-1/-2 standards and has a degree of protection IP65, ensuring it meets stringent safety and performance requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/3, exhausted | Actuation type | Electrical |
Valve size | 26mm | Standard nominal flow rate | 900l/min |
Pneumatic working port | Sub-base, size 26 mm according to ISO 15407-1 | Operating voltage | 24V DC |
Operating pressure | 3bar 8bar | Structural design | Piston slide with sealing ring |
Reset method | Mechanical spring | Degree of protection | IP65 With plug socket as per IEC 60529 |
Nominal width | 6.4mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Conforms to standard | ISO 15407-1 | Manual override | Detenting Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | Internal |
Flow direction | Non-reversible | Symbol | 00991082 |
Lap | Underlap | Signal status display | With accessories |
b-value | 0.29 | C value | 3.99l/sbar |
Flow rate of pneumatic valve | 924l/min | Flow rate of pneumatic valve on individual sub-base | 924l/min |
Optimized flow rate of pneumatic valve pneumatically concatenated flow | 885l/min | Switching time off | 36.2ms |
On switching time | 11.9ms | Changeover time | 18.9ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 2500μs |
Max. negative test pulse on 1 signal | 1100μs | Nominal operating voltage DC | 24V |
Coil characteristics | 24 V DC: 3.3 W | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
Temperature of medium | -5°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 50°C | Max. tightening torque for valve mounting | 2.4Nm |
Product weight | 320g | Electrical connection | Form B As per industrial standard (11 mm) |
Type of mounting | On sub-base | Venting hole connection | Not ducted |
Pneumatic connection 1 | Sub-base, size 26 mm as per ISO 15407-1 | Pneumatic connection 2 | Sub-base, size 26 mm as per ISO 15407-1 |
Pneumatic connection 3 | Sub-base, size 26 mm as per ISO 15407-1 | Pneumatic connection 4 | Sub-base, size 26 mm as per ISO 15407-1 |
Pneumatic connection 5 | Sub-base, size 26 mm as per ISO 15407-1 | Note on materials | RoHS-compliant |
Seals material | HNBR NBR | Housing material | Wrought aluminum alloy |
Piston slide material | Wrought aluminum alloy | Material of screws | Steel, galvanized |
Manufacturer ID | 8150872 |
Specifications may be subject to change without notice
