Product Model

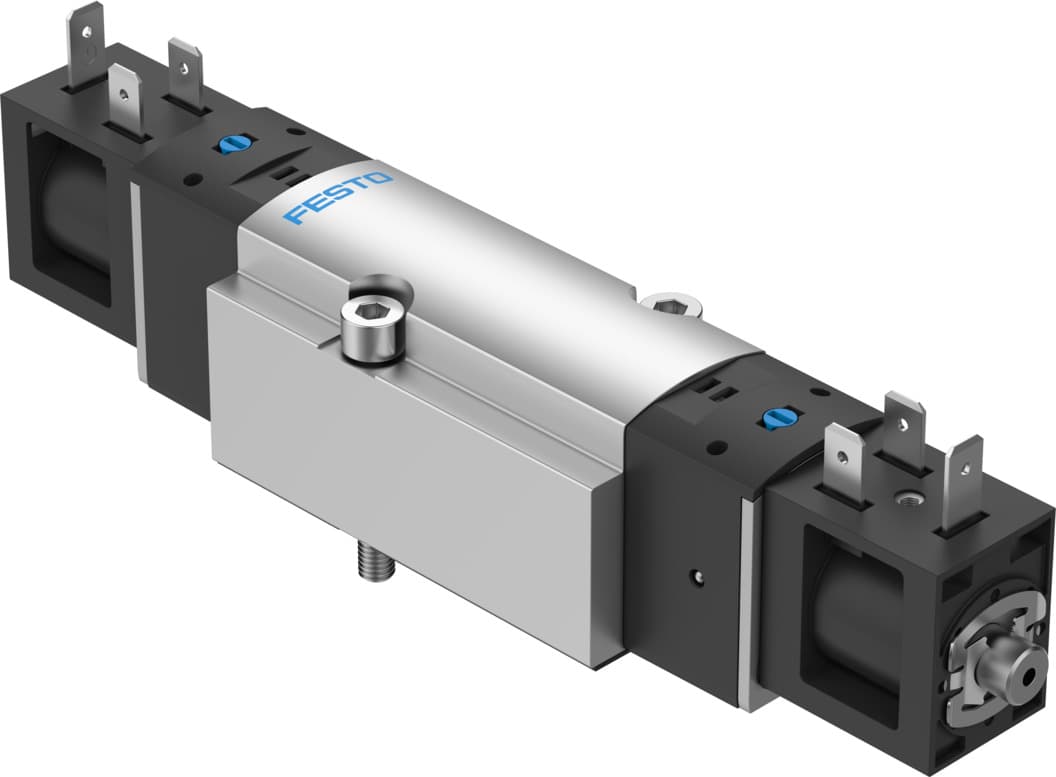

vsva-bk-p53e-d-d1-1b2
Selling Points
- 1The VSVA-BK-P53E-D-D1-1B2 solenoid valve offers a standard nominal flow rate of 1200 l/min, making it ideal for high-demand applications.
- 2This valve is electrically actuated, providing precise control and quick switching times of 37.4 ms off and 12.4 ms on.
- 3Built with a piston slide and sealing ring, this valve ensures reliable operation and is designed to withstand operating pressures up to 0.8 MPa (8 bar).
- 4The VSVA-BK-P53E-D-D1-1B2 can be mounted on any sub-base, offering flexibility in system design and installation.
- 5Conforming to ISO 5599-1 and IP65, this valve meets stringent standards for pneumatic systems, ensuring compatibility and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/3, exhausted | Actuation type | Electrical |
Width | 38mm | Valve size | 42mm |
Standard nominal flow rate | 1200l/min | Pneumatic working port | Sub-base, size 1 according to ISO 5599-1 |
Operating voltage | 24V DC | Operating pressure | 3bar 8bar |
Structural design | Piston slide with sealing ring | Reset method | Mechanical spring |
Degree of protection | IP65 With plug socket as per IEC 60529 | Nominal width | 6.3mm |
Width dimension | 43mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Conforms to standard | ISO 5599-1 | Manual override | Detenting Non-detenting |
ISO code | 157 | Type of control | Pilot-controlled |
Pilot air supply port | Internal | Flow direction | Non-reversible |
Symbol | 00991082 | Lap | Underlap |
Signal status display | With accessories | b-value | 0.26 |
C value | 5.63l/sbar | Flow rate of pneumatic valve | 1289l/min |
Flow rate of pneumatic valve on individual sub-base | 1289l/min | Optimized flow rate of pneumatic valve pneumatically concatenated flow | 1283l/min |
Switching time off | 37.4ms | On switching time | 12.4ms |
Changeover time | 18.9ms | Duty cycle | 100% |
Max. positive test pulse with 0 signal | 2500μs | Max. negative test pulse on 1 signal | 1100μs |
Nominal operating voltage DC | 24V | Coil characteristics | 24 V DC: 3.3 W |
Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364 zone III | Temperature of medium | -5°C 50°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
Max. tightening torque for valve mounting | 5Nm | Product weight | 402g |
Electrical connection | Form B As per industrial standard (11 mm) | Type of mounting | On sub-base |
Venting hole connection | Not ducted | Pneumatic connection 1 | Sub-base, size 1 as per ISO 5599-1 |
Pneumatic connection 2 | Sub-base, size 1 as per ISO 5599-1 | Pneumatic connection 3 | Sub-base, size 1 as per ISO 5599-1 |
Pneumatic connection 4 | Sub-base, size 1 as per ISO 5599-1 | Pneumatic connection 5 | Sub-base, size 1 as per ISO 5599-1 |
Note on materials | RoHS-compliant | Seals material | HNBR NBR |
Housing material | Wrought aluminum alloy | Piston slide material | Wrought aluminum alloy |
Material of screws | Steel, galvanized | Manufacturer ID | 8166595 |
Specifications may be subject to change without notice
