Product Model
vsva-b-m52-azh-a1-1ac1
Selling Points

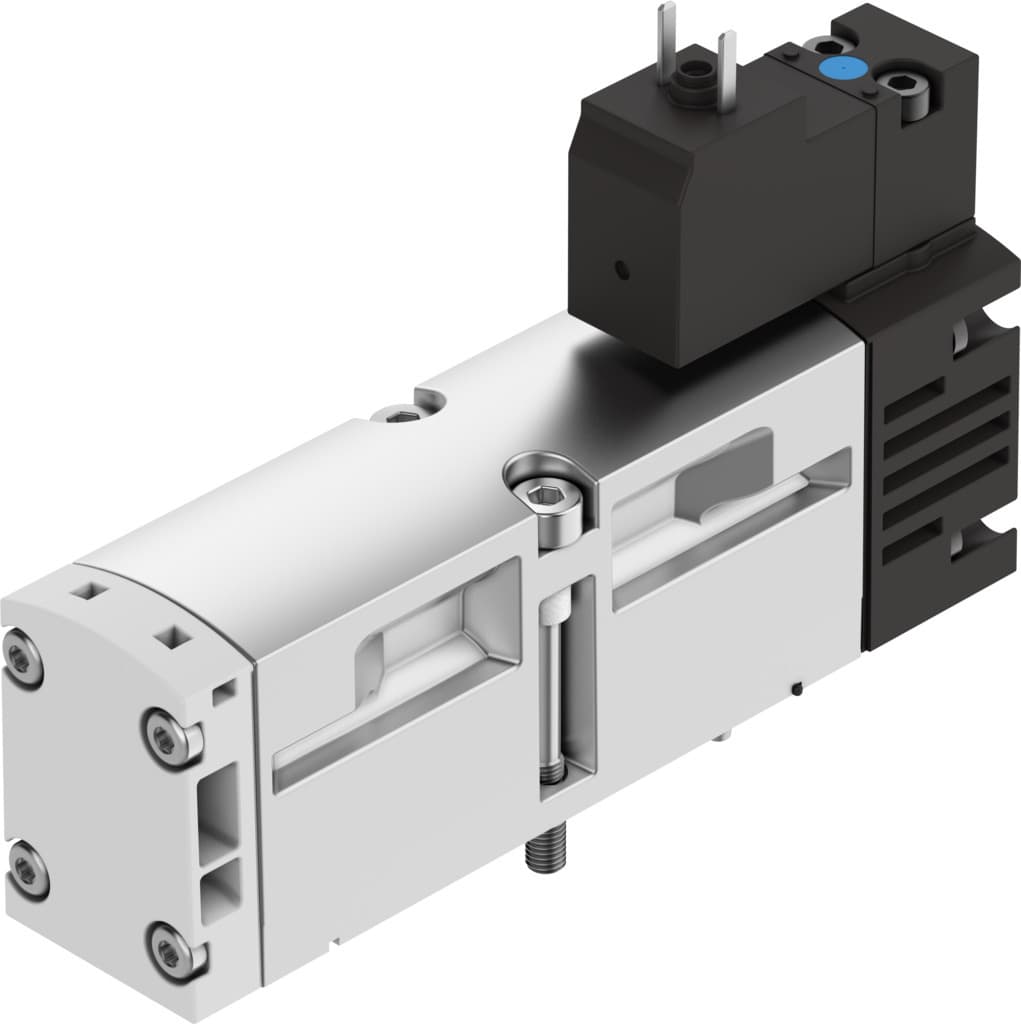

- 1The Festo VSVA-B-M52-AZH-A1-1AC1 air solenoid valve offers a 5/2 monostable function, ensuring reliable and precise control in pneumatic systems.
- 2With an electrical actuation type, this valve is easy to integrate into various automation setups, providing efficient and consistent operation.
- 3The valve features a standard nominal flow rate of 1100 l/min, making it suitable for high-flow applications in industrial settings.
- 4Designed with a piston slide structure and air spring reset, this valve ensures smooth operation and reliable performance under various pressure conditions.
- 5The VSVA-B-M52-AZH-A1-1AC1 is built with an IP65/NEMA 4 protection class, ensuring durability and resistance to environmental factors in industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Valve size | 26mm | Standard nominal flow rate | 1100l/min |
Pneumatic working port | Sub-base, size 26 mm according to ISO 15407-1 Connecting plate size 01 according to VDMA 24563 G1/4 | Operating voltage | 24V AC |
Operating pressure | -0.9bar 16bar | Structural design | Piston gate valve |
Reset method | Pneumatic spring | Degree of protection | IP65 NEMA 4 |
Nominal width | 9mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Conforms to standard | ISO 15407-1 VDMA 24563 | Manual override | Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | External |
Flow direction | Reversible | Symbol | 00991050 |
Lap | Overlap | Signal status display | LED |
Pilot pressure MPa | 0.3MPa 1MPa | Pilot pressure | 3bar 10bar |
Flow rate of pneumatic valve | 1400l/min | Flow rate of pneumatic valve on individual sub-base | 1100l/min |
Optimized flow rate of pneumatic valve pneumatically concatenated flow | 1100l/min | Switching time off | 43ms |
On switching time | 35ms | Duty cycle | 100% |
Coil characteristics | 24 V AC: 50/60 Hz, initial power 3.1 VA, holding power 2.3 VA | Permissible voltage fluctuations | -15 % / +10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Relative air humidity | 0 - 90 % |
Noise level | 85dB(A) | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 50°C | Max. tightening torque for valve mounting | 2Nm |
Product weight | 180g | Electrical connection | Form C as per DIN EN 175301-803 Without PE conductor |
Type of mounting | On sub-base | Auxiliary pilot air port 12 | Sub-base, size 26 mm as per ISO 15407-1 |
Auxiliary pilot air port 14 | Sub-base, size 26 mm as per ISO 15407-1 | Pilot exhaust air port 82/84 | Ducted Not ducted as per standard |
Pneumatic connection 1 | Sub-base, size 26 mm as per ISO 15407-1 | Pneumatic connection 2 | Sub-base, size 26 mm as per ISO 15407-1 |
Pneumatic connection 3 | Sub-base, size 26 mm as per ISO 15407-1 | Pneumatic connection 4 | Sub-base, size 26 mm as per ISO 15407-1 |
Pneumatic connection 5 | Sub-base, size 26 mm as per ISO 15407-1 | Pilot interface | as per ISO 15218 |
Note on materials | RoHS-compliant | Seals material | HNBR NBR |
Housing material | Die-cast aluminum | Material of screws | Steel Galvanized |
Manufacturer ID | 547118 |
Specifications may be subject to change without notice
