Product Model
vsva-b-m52-m-a1-p1
Selling Points
- 1/2-Way Monostable Valve Function: The VSVA-B-M52-M-A1-P1 offers a reliable 5/2-way monostable valve function, ensuring precise control over pneumatic drives.
- 2Electric Actuation: With electric actuation, this valve provides quick and efficient operation, making it suitable for a wide range of industrial applications.
- 3High Flow Rate: The valve features a standard nominal flow rate of 1100 l/min, making it ideal for applications requiring high flow rates.
- 4Robust Design: Constructed with a piston gate valve design and mechanical spring reset, this valve ensures durability and reliability in harsh environments.
- 5Compliance with Standards: The VSVA-B-M52-M-A1-P1 conforms to ISO 15407-1 and VDMA 24563 standards, ensuring compatibility with various industrial systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Valve size | 26mm | Standard nominal flow rate | 1100l/min |
Pneumatic working port | Sub-base, size 26 mm according to ISO 15407-1 Connecting plate size 01 according to VDMA 24563 G1/4 | Operating pressure | 3bar 10bar |
Structural design | Piston gate valve | Reset method | Mechanical spring |
Certification | c UL us - Recognized (OL) | Degree of protection | IP65 NEMA 4 |
Nominal width | 9mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Conforms to standard | ISO 15407-1 VDMA 24563 | Type of control | Pilot-controlled |
Pilot air supply port | Internal | Flow direction | Non-reversible |

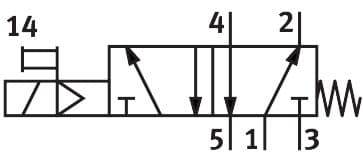

Symbol | 00991003 | Lap | Overlap |
Signal status display | LED | Pilot pressure MPa | 0.3MPa 1MPa |
Pilot pressure | 3bar 10bar | Flow rate of pneumatic valve | 1400l/min |
Flow rate of pneumatic valve on individual sub-base | 1100l/min | Optimized flow rate of pneumatic valve pneumatically concatenated flow | 1100l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Relative air humidity | 0 - 90 % |
Noise level | 85dB(A) | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 50°C | Max. tightening torque for valve mounting | 1.8Nm 2.2Nm |
Product weight | 142g | Type of mounting | On sub-base |
Auxiliary pilot air port 12 | Sub-base, size 26 mm as per ISO 15407-1 | Auxiliary pilot air port 14 | Sub-base, size 26 mm as per ISO 15407-1 |
Pilot exhaust air port 82/84 | Ducted Not ducted as per standard | Pneumatic connection 1 | Sub-base, size 26 mm as per ISO 15407-1 |
Pneumatic connection 2 | Sub-base, size 26 mm as per ISO 15407-1 | Pneumatic connection 3 | Sub-base, size 26 mm as per ISO 15407-1 |
Pneumatic connection 4 | Sub-base, size 26 mm as per ISO 15407-1 | Pneumatic connection 5 | Sub-base, size 26 mm as per ISO 15407-1 |
Pilot interface | as per ISO 15218 | Note on materials | RoHS-compliant |
Seals material | HNBR NBR | Housing material | Die-cast aluminum |
Material of screws | Steel Galvanized | Manufacturer ID | 546741 |
Specifications may be subject to change without notice
