Product Model

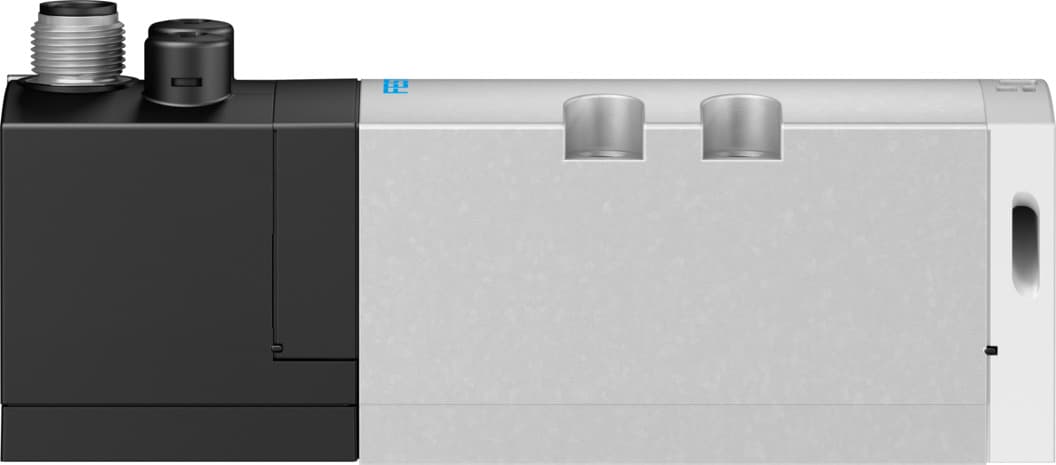

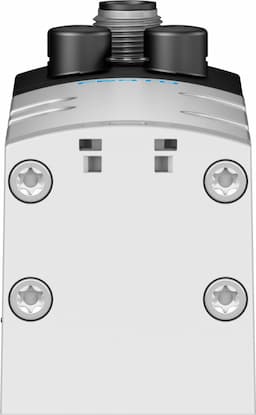

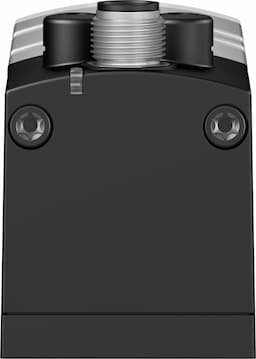

vsva-b-m52-md-d1-1r5l
Selling Points
- 1Efficiently controls fluid flow with a reliable 5/2 monostable valve function.
- 2Easy to integrate with electrical systems for precise control.
- 3Standard nominal flow rate of 1300 l/min ensures efficient fluid management.
- 4Built with a piston slide design and mechanical spring reset for durability.
- 5Provides excellent protection against dust and water, ensuring long-lasting performance in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Width | 42mm | Standard nominal flow rate | 1300l/min |
Pneumatic working port | Sub-base, size 1 according to ISO 5599-1 G1/4 | Operating voltage | 24V DC |
Operating pressure | 3bar 10bar | Structural design | Piston gate valve |
Reset method | Mechanical spring | Certification | c UL us - Recognized (OL) |
Degree of protection | IP65 NEMA 4 | Nominal width | 11mm |
Width dimension | 43mm | Exhaust air function | With flow control option Via throttle plate Via individual sub-base |
Sealing principle | Soft | Mounting position | Any |
Conforms to standard | ISO 5599-1 | Manual override | Detenting Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | Internal |
Flow direction | Non-reversible | Symbol | 00991003 |
Lap | Overlap | Signal status display | LED |
Flow rate of pneumatic valve | 2000l/min | Flow rate of pneumatic valve on individual sub-base | 1400l/min |
Optimized flow rate of pneumatic valve pneumatically concatenated flow | 1300l/min | Switching time off | 60ms |
On switching time | 22ms | Duty cycle | 100% |
Max. positive test pulse with 0 signal | 1400μs | Max. negative test pulse on 1 signal | 900μs |
Coil characteristics | 24 V DC: 1.6 W | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Relative air humidity | 0 - 90 % |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
Product weight | 426g | Electrical connection | 3-pin M12x1 Central plug Round design |
Type of mounting | On sub-base | Pneumatic connection 1 | Sub-base, size 1 as per ISO 5599-1 |
Pneumatic connection 2 | Sub-base, size 1 as per ISO 5599-1 | Pneumatic connection 3 | Sub-base, size 1 as per ISO 5599-1 |
Pneumatic connection 4 | Sub-base, size 1 as per ISO 5599-1 | Pneumatic connection 5 | Sub-base, size 1 as per ISO 5599-1 |
Note on materials | RoHS-compliant | Seals material | FPM HNBR NBR |
Housing material | Die-cast aluminum PA | Material of screws | Steel Galvanized |
Manufacturer ID | 561363 |
Specifications may be subject to change without notice
