Product Model

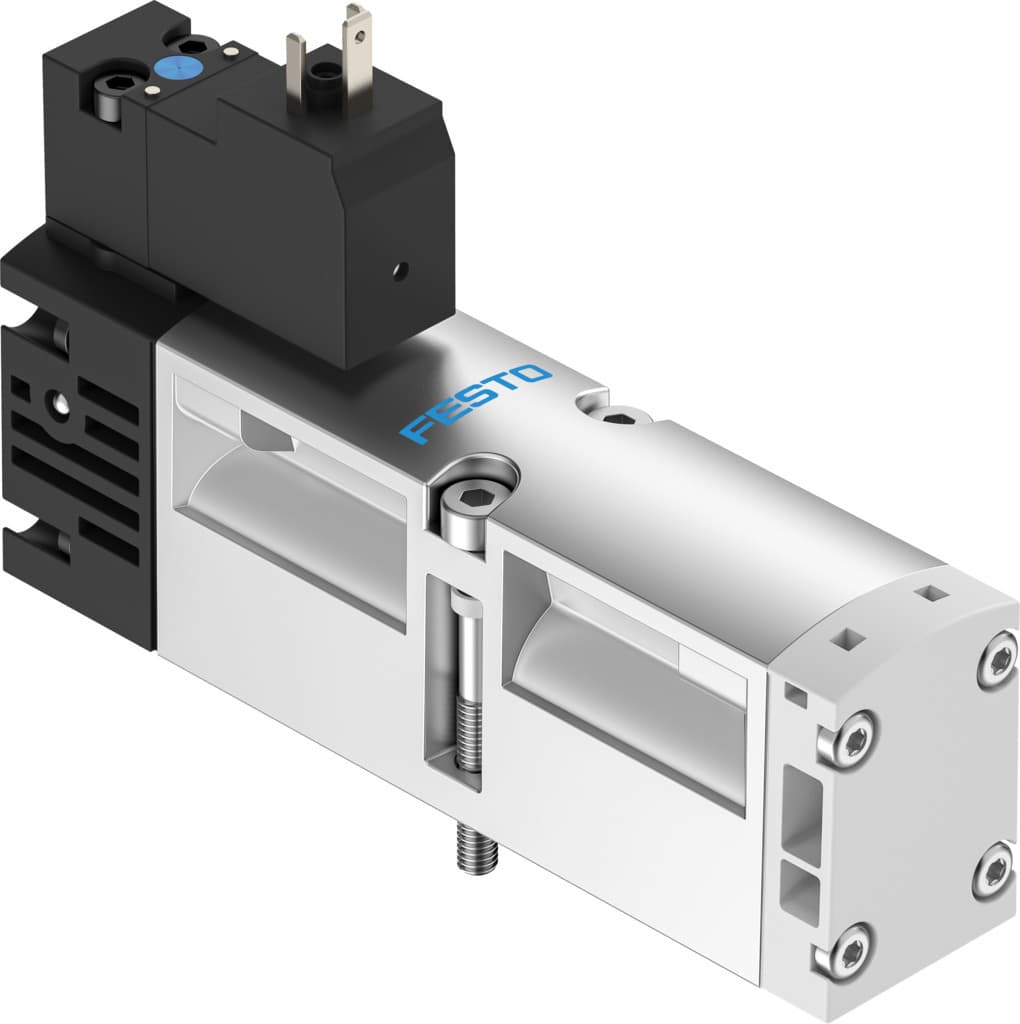

vsva-b-m52-mh-a1-2ac1
Selling Points
- 1The Festo VSVA-B-M52-MH-A1-2AC1 solenoid valve offers a 5/2 monostable function, ensuring reliable and precise control in pneumatic systems. Its electrical actuation type provides efficient operation with minimal power consumption.
- 2With a standard nominal flow rate of 1100 l/min, this valve is suitable for a wide range of industrial applications, including manufacturing, automation, and process control.
- 3The valve is designed with a piston gate valve structure and features a mechanical spring reset method, ensuring consistent performance and easy maintenance.
- 4The Festo VSVA-B-M52-MH-A1-2AC1 meets stringent safety standards, including IP65 and NEMA 4 protection classes, ensuring durability in harsh environments.
- 5This solenoid valve supports optional flow control and exhaust-air functions, allowing for customizable solutions to meet specific application requirements. It also features soft sealing principles for enhanced reliability and longevity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Valve size | 26mm | Standard nominal flow rate | 1100l/min |
Pneumatic working port | Sub-base, size 26 mm according to ISO 15407-1 Connecting plate size 01 according to VDMA 24563 G1/4 | Operating voltage | 110V AC |
Operating pressure | 3bar 10bar | Structural design | Piston gate valve |
Reset method | Mechanical spring | CE marking (see declaration of conformity) | As per EU low voltage directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC | Degree of protection | IP65 NEMA 4 |
Nominal width | 9mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Conforms to standard | ISO 15407-1 VDMA 24563 | Manual override | Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | Internal |
Flow direction | Non-reversible | Symbol | 00991003 |
Lap | Overlap | Signal status display | LED |
Pilot pressure MPa | 0.3MPa 1MPa | Pilot pressure | 3bar 10bar |
Flow rate of pneumatic valve | 1400l/min | Flow rate of pneumatic valve on individual sub-base | 1100l/min |
Optimized flow rate of pneumatic valve pneumatically concatenated flow | 1100l/min | Switching time off | 56ms |
On switching time | 26ms | Duty cycle | 100% |
Coil characteristics | 110 V AC: 50/60 Hz, initial power 2.9 VA, holding power 2.1 VA | Permissible voltage fluctuations | -15 % / +10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Relative air humidity | 0 - 90 % |
Noise level | 85dB(A) | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 50°C | Max. tightening torque for valve mounting | 2Nm |
Product weight | 180g | Electrical connection | Form C With PE conductor as per DIN EN 175301-803 |
Type of mounting | On sub-base | Auxiliary pilot air port 12 | Sub-base, size 26 mm as per ISO 15407-1 |
Auxiliary pilot air port 14 | Sub-base, size 26 mm as per ISO 15407-1 | Pilot exhaust air port 82/84 | Ducted Not ducted as per standard |
Pneumatic connection 1 | Sub-base, size 26 mm as per ISO 15407-1 | Pneumatic connection 2 | Sub-base, size 26 mm as per ISO 15407-1 |
Pneumatic connection 3 | Sub-base, size 26 mm as per ISO 15407-1 | Pneumatic connection 4 | Sub-base, size 26 mm as per ISO 15407-1 |
Pneumatic connection 5 | Sub-base, size 26 mm as per ISO 15407-1 | Pilot interface | as per ISO 15218 |
Note on materials | RoHS-compliant | Seals material | HNBR NBR |
Housing material | Die-cast aluminum | Material of screws | Steel Galvanized |
Manufacturer ID | 547180 |
Specifications may be subject to change without notice
