Product Model
vsva-b-m52-mh-a2-1ac1
Selling Points

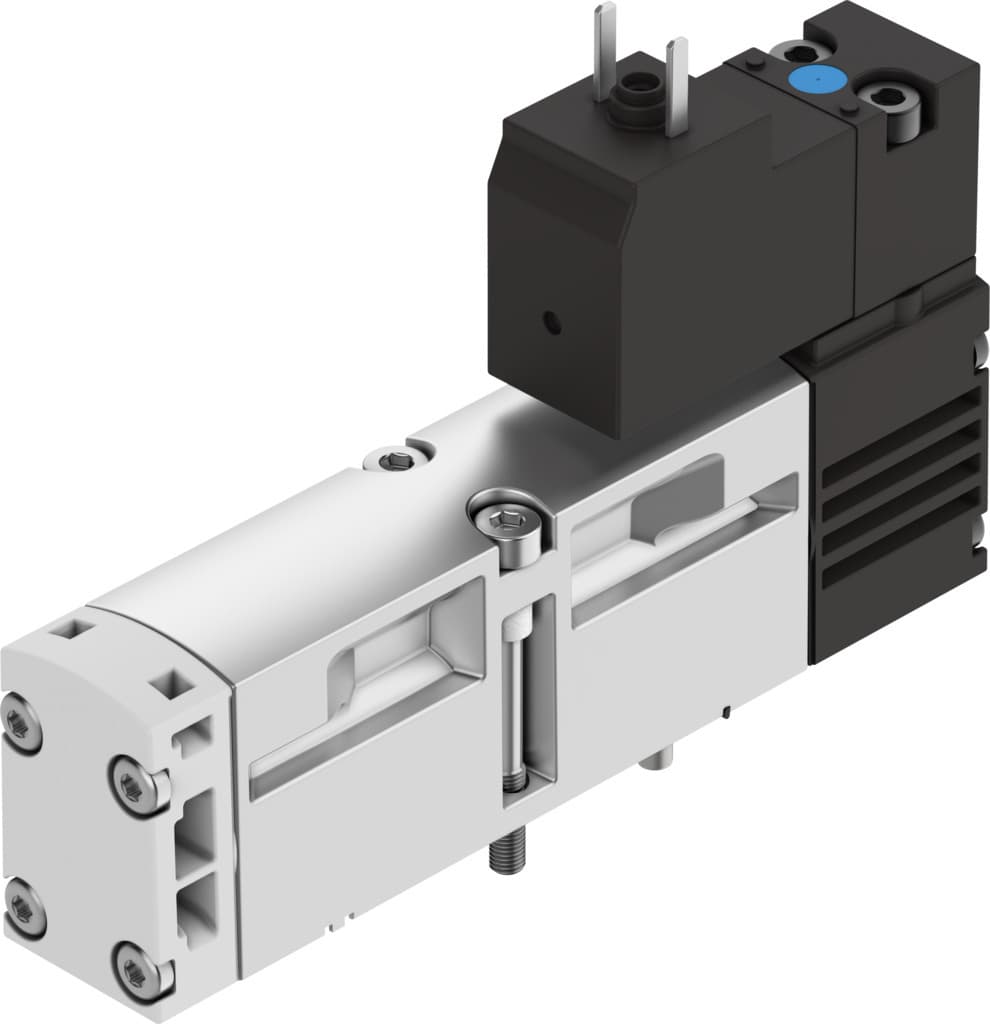

- 1The Festo VSVA-B-M52-MH-A2-1AC1 solenoid valve is a 5/2-way monostable valve, ensuring precise control in pneumatic systems. Its electric actuation type provides reliable operation.
- 2With a standard nominal flow rate of 550 liters per minute, this valve is suitable for a wide range of applications, from industrial automation to medical equipment.
- 3The valve features a piston gate design and mechanical spring reset, ensuring consistent performance and durability. It also meets IP65 and NEMA 4 protection standards.
- 4The Festo VSVA-B-M52-MH-A2-1AC1 solenoid valve is designed with a soft sealing principle, reducing wear and tear. It also includes an optional mounting position for flexibility in installation.
- 5This valve conforms to ISO 15407-1 and VDMA 24563 standards, ensuring compatibility with various pneumatic systems. It also features a non-detenting manual override for easy operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Valve size | 18mm | Standard nominal flow rate | 550l/min |
Pneumatic working port | Sub-base, size 18 mm as per ISO 15407-1 Connecting plate size 02 according to VDMA 24563 G1/8 | Operating voltage | 24V AC |
Operating pressure | 3bar 10bar | Structural design | Piston gate valve |
Reset method | Mechanical spring | Degree of protection | IP65 NEMA 4 |
Nominal width | 5mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Conforms to standard | ISO 15407-1 VDMA 24563 | Manual override | Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | Internal |
Flow direction | Non-reversible | Symbol | 00991003 |
Lap | Overlap | Signal status display | LED |
Pilot pressure MPa | 0.3MPa 1MPa | Pilot pressure | 3bar 10bar |
Flow rate of pneumatic valve | 750l/min | Flow rate of pneumatic valve on individual sub-base | 550l/min |
Optimized flow rate of pneumatic valve pneumatically concatenated flow | 550l/min | Switching time off | 35ms |
On switching time | 17ms | Duty cycle | 100% |
Coil characteristics | 24 V AC: 50/60 Hz, initial power 3.1 VA, holding power 2.3 VA | Permissible voltage fluctuations | -15 % / +10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Relative air humidity | 0 - 90 % |
Noise level | 85dB(A) | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 50°C | Max. tightening torque for valve mounting | 1Nm |
Product weight | 127g | Electrical connection | Form C as per DIN EN 175301-803 Without PE conductor |
Type of mounting | On sub-base | Auxiliary pilot air port 12 | Sub-base, size 18 mm as per ISO 15407-1 |
Auxiliary pilot air port 14 | Sub-base, size 18 mm as per ISO 15407-1 | Pilot exhaust air port 82/84 | Ducted Not ducted as per standard |
Pneumatic connection 1 | Sub-base, size 18 mm as per ISO 15407-1 | Pneumatic connection 2 | Sub-base, size 18 mm as per ISO 15407-1 |
Pneumatic connection 3 | Sub-base, size 18 mm as per ISO 15407-1 | Pneumatic connection 4 | Sub-base, size 18 mm as per ISO 15407-1 |
Pneumatic connection 5 | Sub-base, size 18 mm as per ISO 15407-1 | Pilot interface | as per ISO 15218 |
Note on materials | RoHS-compliant | Seals material | HNBR NBR |
Housing material | Die-cast aluminum | Material of screws | Steel Galvanized |
Manufacturer ID | 547101 |
