Product Model

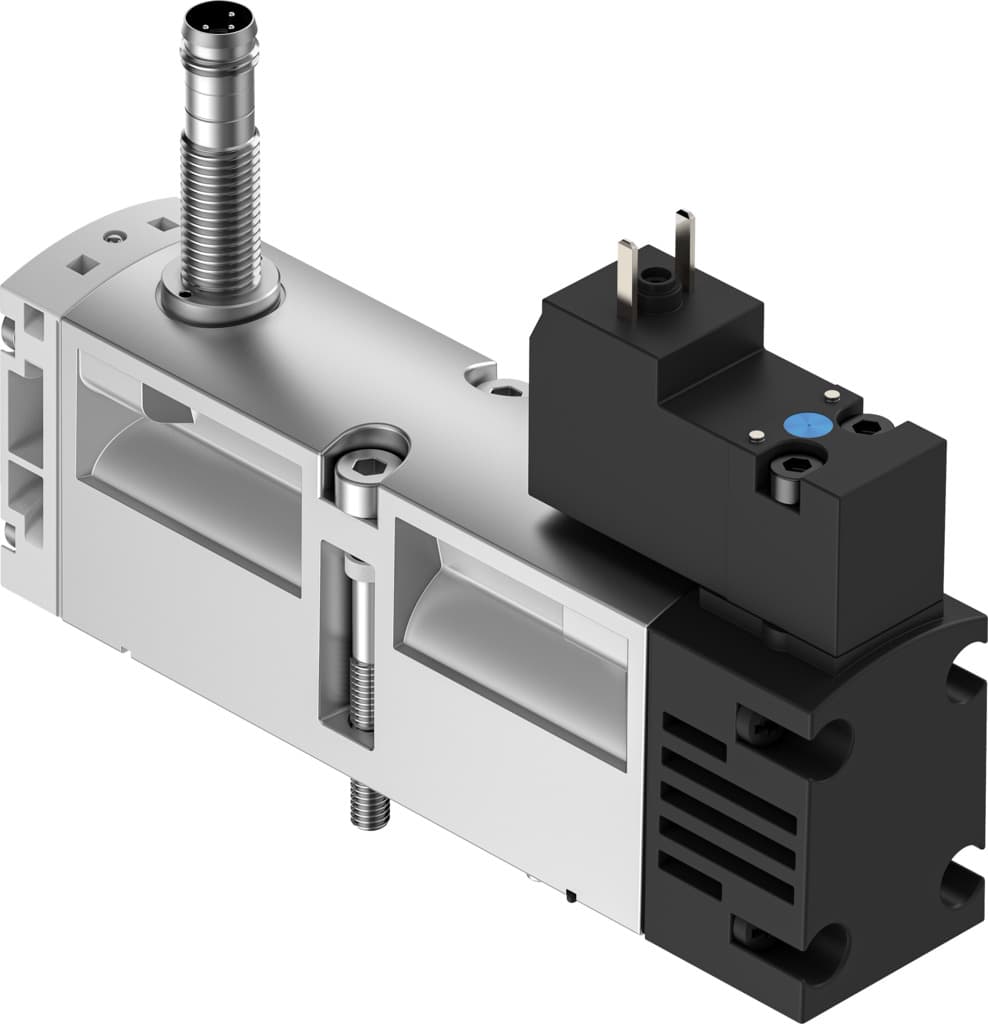

vsva-b-m52-mz-a1-1c1-app
Selling Points
- 1High flow rate of 1,100 l/min for efficient air control.
- 2Robust design with mechanical spring return and vibration resistance.
- 3Compliance with ISO 15407-1 and CE mark for safety and reliability.
- 4Compact size with a width of 26 mm, suitable for various industrial applications.
- 5Easy integration with external pilot air supply for flexible control options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Width | 26mm | Standard nominal flow rate | 1100l/min |
Pneumatic working port | Sub-base, size 26 mm according to ISO 15407-1 Connecting plate size 01 according to VDMA 24563 G1/4 | Operating voltage | 24V DC |
Operating pressure | -0.9bar 16bar | Structural design | Piston gate valve |
Reset method | Mechanical spring | Certification | C-Tick c UL us - Recognized (OL) |
KC characters | KC EMC | CE marking (see declaration of conformity) | As per EU EMC directive |
Certificate issuing authority | UL MH19482 | UKCA marking (see declaration of conformity) | To UK instructions for EMC |
Degree of protection | IP65 NEMA 4 | Nominal width | 9mm |
Exhaust air function | With flow control option Via throttle plate Via individual sub-base | Sealing principle | Soft |
Mounting position | Any | Conforms to standard | ISO 15407-1 VDMA 24563 |
Manual override | Covered | Type of control | Pilot-controlled |
Pilot air supply port | External | Flow direction | Any |
Symbol | 00997391 | Measuring principle | Inductive |
Lap | Overlap | Sensor reverse polarity protection | For all electrical connections |
Signal status display | With accessories | Switching position sensing | Normal position with sensor |
Sensor switching status indication | LED | Pilot pressure MPa | 0.3MPa 1MPa |
Pilot pressure | 3bar 10bar | Flow rate of pneumatic valve | 1400l/min |
Flow rate of pneumatic valve on individual sub-base | 1100l/min | Optimized flow rate of pneumatic valve pneumatically concatenated flow | 1100l/min |
Switching time off | 41ms | On switching time | 21ms |
Pneumatic valve - sensor ON switching time | 60ms | Pneumatic valve - sensor switching time off | 11ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 1800μs |
Max. negative test pulse on 1 signal | 800μs | Nominal operating voltage DC | 24V |
Switching output | PNP | Coil characteristics | 24 V DC: 1.8 W |
Permissible voltage fluctuations | -15 % / +10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
Relative air humidity | 0 - 90 % | Noise level | 85dB(A) |
Ambient temperature | -5°C 50°C | Max. tightening torque for valve mounting | 1.8Nm 2.2Nm |
Product weight | 289g | DC sensor operating voltage range | 10V 30V |
Sensor short circuit protection | Pulsed | Sensor idle current | 10mA |
Max. output current, sensor | 200mA | Sensor max. switching frequency | 5000Hz |
Sensor residual ripple | ± 10 % | Sensor voltage drop | 2V |
Electrical connection | Form C as per EN 175301-803 Without PE conductor | Sensor connection | Plug 3-pin M8x1 |
Type of mounting | On sub-base | Pilot air port 12/14 | Sub-base, size 26 mm as per ISO 15407-1 |
Pilot exhaust air port 82/84 | Ducted Not ducted Optionally: | Pneumatic connection 1 | Sub-base, size 26 mm as per ISO 15407-1 |
Pneumatic connection 2 | Sub-base, size 26 mm as per ISO 15407-1 | Pneumatic connection 3 | Sub-base, size 26 mm as per ISO 15407-1 |
Pneumatic connection 4 | Sub-base, size 26 mm as per ISO 15407-1 | Pneumatic connection 5 | Sub-base, size 26 mm as per ISO 15407-1 |
Pilot interface | as per ISO 15218 | Note on materials | RoHS-compliant |
Seals material | FPM NBR | Housing material | Die-cast aluminum PA |
Material of screws | Steel, galvanized | Switching element function | N/C contact |
Manufacturer ID | 560726 |
Specifications may be subject to change without notice
