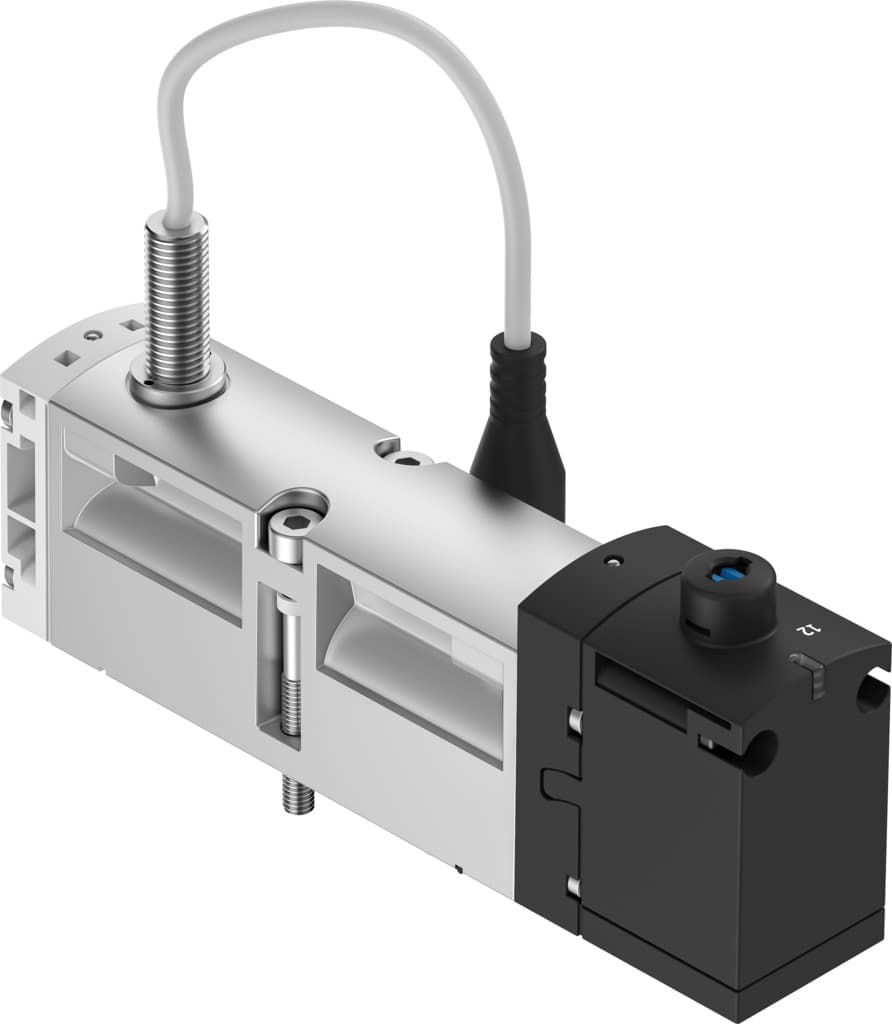

Product Model
vsva-b-m52-mzd-a1-1t1l-apx-0.5
Selling Points
- 11100 l/min standard nominal flow rate for efficient air control.
- 2Reliable and precise control with electrical actuation.
- 3IP65 NEMA 4 protection class for durability in harsh environments.
- 4Suitable for various industrial applications requiring precise airflow direction.
- 5Compatible with sub-base mounting for straightforward integration into pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Width | 26mm | Standard nominal flow rate | 1100l/min |
Pneumatic working port | Sub-base, size 26 mm as per ISO 15407-2 G1/4 | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Reset method | Mechanical spring | KC characters | KC EMC |
CE marking (see declaration of conformity) | As per EU EMC directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC |
Degree of protection | IP65 NEMA 4 | Nominal width | 9mm |
Exhaust air function | With flow control option Via throttle plate Via individual sub-base | Sealing principle | Soft |
Mounting position | Any | Manual override | Detenting Non-detenting Covered |
Type of control | Pilot-controlled | Pilot air supply port | External Internal |
Flow direction | Any | Symbol | 00997391 |
Measuring principle | Inductive | Lap | Overlap |
Sensor reverse polarity protection | For all electrical connections | Signal status display | LED |
Switching position sensing | Normal position with sensor | Sensor switching status indication | LED |
Pilot pressure MPa | 0.3MPa 1MPa | Pilot pressure | 3bar 10bar |
Flow rate of pneumatic valve | 1400l/min | Flow rate of pneumatic valve on individual sub-base | 1200l/min |
Optimized flow rate of pneumatic valve, pneumatically concatenated flow | 1350l/min | Optimized flow rate of pneumatic valve pneumatically concatenated flow | 1100l/min |
Switching time off | 54ms | On switching time | 20ms |
Pneumatic valve - sensor ON switching time | 60ms | Pneumatic valve - sensor switching time off | 11ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 1200μs |
Max. negative test pulse on 1 signal | 1100μs | Nominal operating voltage DC | 24V |
Switching output | PNP | Coil characteristics | 24 V DC: 1.6 W |
Surge resistance | 2.5kV | Contamination level | 3 |
Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
Relative air humidity | 0 - 90 % | Noise level | 85dB(A) |
Ambient temperature | -5°C 50°C | Max. tightening torque for valve mounting | 1.8Nm 2.2Nm |
Product weight | 281g | DC sensor operating voltage range | 10V 30V |
Sensor short circuit protection | Pulsed | Sensor idle current | 10mA |
Max. output current, sensor | 200mA | Sensor max. switching frequency | 5000Hz |
Sensor residual ripple | ± 10 % | Sensor voltage drop | 2V |
Electrical connection | 4-pin Plug as per ISO 15407-2 | Sensor connection | Plug Cable 4-pin M12x1 0.5 m |
Type of mounting | On sub-base | Pilot air port 12/14 | Sub-base, size 26 mm as per ISO 15407-2 |
Pilot exhaust air port 82/84 | Ducted Not ducted Optionally: | Pneumatic connection 1 | Sub-base, size 26 mm as per ISO 15407-2 |
Pneumatic connection 2 | Sub-base, size 26 mm as per ISO 15407-2 | Pneumatic connection 3 | Sub-base, size 26 mm as per ISO 15407-2 |
Pneumatic connection 4 | Sub-base, size 26 mm as per ISO 15407-2 | Pneumatic connection 5 | Sub-base, size 26 mm as per ISO 15407-2 |
Note on materials | RoHS-compliant | Seals material | FPM NBR |
Housing material | Die-cast aluminum PA | Material of screws | Steel, galvanized |
Switching element function | N/C contact | Manufacturer ID | 570850 |
