Product Model
vsva-b-m52-mzd-d1-1t1l
Selling Points

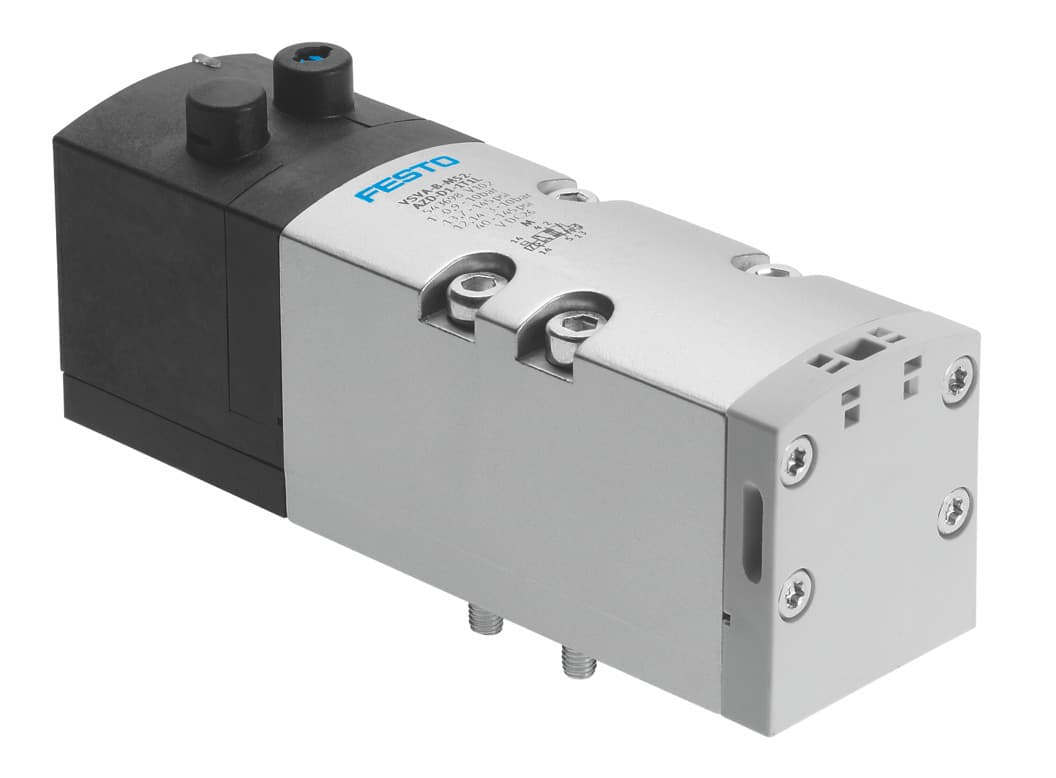

- 1The Festo VSVA-B-M52-MZD-D1-1T1L solenoid valve is a 5/2 monostable valve with electrical actuation, ensuring precise control in various automation processes.
- 2With a nominal flow rate of 1300 l/min and operating pressure ranging from -0.9 to 10 bar, this valve is suitable for a wide range of industrial applications.
- 3The valve features a mechanical spring return and is designed to withstand vibration and shock tests, ensuring reliability in harsh environments.
- 4The VSVA-B-M52-MZD-D1-1T1L is constructed with RoHS-compliant materials and has a protection category of IP65, making it suitable for various industrial settings.
- 5This solenoid valve supports external control air supply and offers LED signal condition display, providing clear and efficient operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Width | 42mm | Standard nominal flow rate | 1300l/min |
Pneumatic working port | Sub-base, size 1 as per ISO 5599-2 G3/8 | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Reset method | Mechanical spring | Certification | c UL us - Recognized (OL) |
Degree of protection | IP65 NEMA 4 | Exhaust air function | With flow control option Via throttle plate Via individual sub-base |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting Non-detenting Covered | Type of control | Pilot-controlled |
Pilot air supply port | External | Flow direction | Any |
Symbol | 00991190 | Signal status display | LED |
Pilot pressure MPa | 0.3MPa 1MPa | Pilot pressure | 3bar 10bar |
Flow rate of pneumatic valve | 1800l/min | Flow rate of pneumatic valve on individual sub-base | 1500l/min |
Optimized flow rate of pneumatic valve, pneumatically concatenated flow | 1860l/min | Optimized flow rate of pneumatic valve pneumatically concatenated flow | 1300l/min |
Switching time off | 60ms | On switching time | 22ms |
Max. positive test pulse with 0 signal | 1400μs | Max. negative test pulse on 1 signal | 900μs |
Nominal pick-up current per solenoid coil | 72 mA to 30 ms | Coil characteristics | 24 V DC: 1.6 W |
Surge resistance | 2.5kV | Contamination level | 3 |
Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Relative air humidity | 0 - 90 % |
Ambient temperature | -5°C 50°C | Product weight | 426g |
Electrical connection | Plug-in as per ISO 5599-2 | Type of mounting | On sub-base |
Pilot air port 12/14 | Sub-base, size 1 as per ISO 5599-2 | Pilot exhaust air port 82/84 | Ducted Not ducted as per standard Optionally: |
Pneumatic connection 1 | Sub-base, size 1 as per ISO 5599-2 | Pneumatic connection 2 | Sub-base, size 1 as per ISO 5599-2 |
Pneumatic connection 3 | Sub-base, size 1 as per ISO 5599-2 | Pneumatic connection 4 | Sub-base, size 1 as per ISO 5599-2 |
Pneumatic connection 5 | Sub-base, size 1 as per ISO 5599-2 | Note on materials | RoHS-compliant |
Seals material | FPM HNBR NBR | Housing material | Die-cast aluminum PA |
Material of screws | Steel, galvanized | Manufacturer ID | 543699 |
Specifications may be subject to change without notice
