Product Model

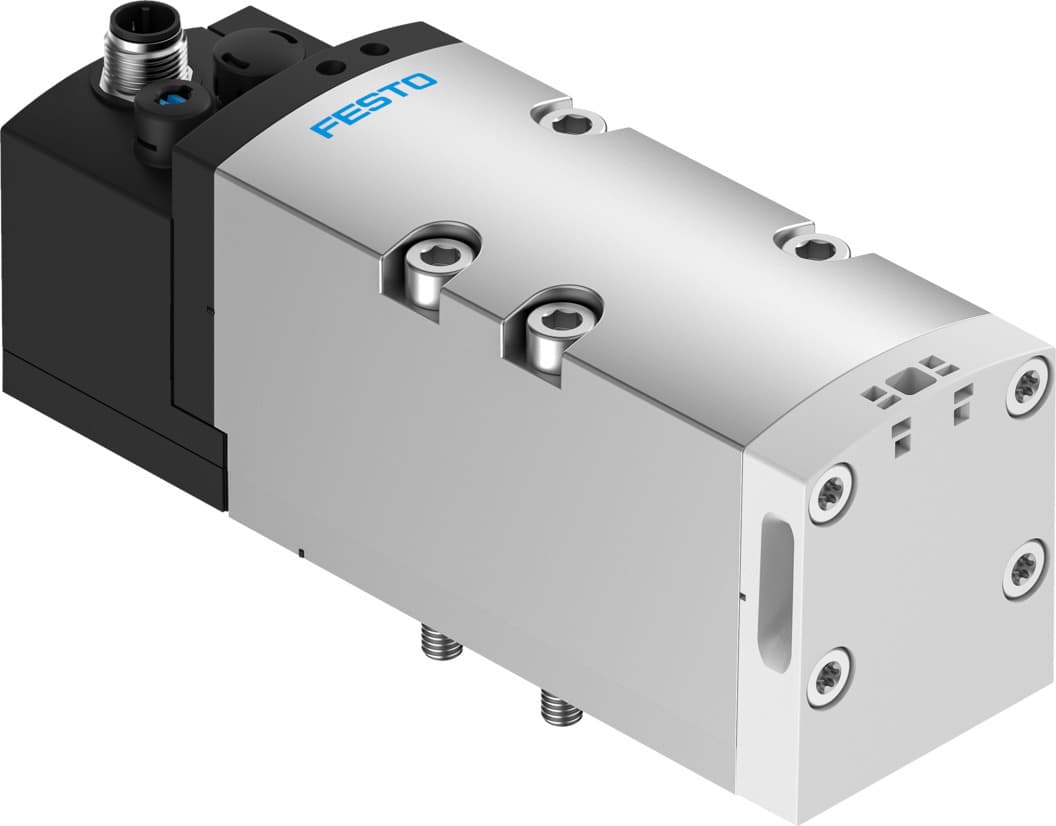

vsva-b-m52-mzd-d2-1r5l
Selling Points
- 1High-Flow Capability: Up to 2800 l/min standard nominal flow rate.
- 2Electric Actuation: Reliable and efficient electrical actuation for precise control.
- 3Compact Design: 52 mm width for easy integration into various systems.
- 4Versatile Functionality: 5/2 monostable valve function with throttleable exhaust-air function.
- 5Durable Construction: IP65 and NEMA 4 protection class for harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Width | 52mm | Standard nominal flow rate | 2800l/min |
Pneumatic working port | Sub-base, size 2 according to ISO 5599-1 G3/8 | Operating voltage | 24V DC |
Operating pressure | -0.9bar 16bar | Structural design | Piston gate valve |
Reset method | Mechanical spring | Certification | C-Tick c CSA us (OL) c UL us - Recognized (OL) |
KC characters | KC EMC | CE marking (see declaration of conformity) | As per EU EMC directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Degree of protection | IP65 NEMA 4 |
Nominal width | 15mm | Width dimension | 59mm |
Exhaust air function | With flow control option Via throttle plate Via individual sub-base | Sealing principle | Soft |
Mounting position | Any | Conforms to standard | ISO 5599-1 |
Manual override | Detenting Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | External | Flow direction | Any |
Symbol | 00991190 | Lap | Overlap |
Signal status display | LED | Pilot pressure MPa | 0.3MPa 1MPa |
Pilot pressure | 3bar 10bar | Flow rate of pneumatic valve | 4000l/min |
Flow rate of pneumatic valve on individual sub-base | 2400l/min | Optimized flow rate of pneumatic valve pneumatically concatenated flow | 2800l/min |
Switching time off | 60ms | On switching time | 20ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 1000μs |
Max. negative test pulse on 1 signal | 3500μs | Nominal pick-up current per solenoid coil | 165 mA to 30 ms |
Nominal current with current reduction | 35 mA after 30 ms | Coil characteristics | 24 V DC: 4.6 W |
Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
Relative air humidity | 0 - 90 % | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 50°C | Product weight | 702g |
Electrical connection | 3-pin M12x1 Central plug Round design | Type of mounting | On sub-base |
Pilot air port 12/14 | Sub-base, size 2 as per ISO 5599-1 | Pilot exhaust air port 82/84 | Ducted Not ducted as per standard Optionally: |
Pneumatic connection 1 | Sub-base, size 2 as per ISO 5599-1 | Pneumatic connection 2 | Sub-base, size 2 as per ISO 5599-1 |
Pneumatic connection 3 | Sub-base, size 2 as per ISO 5599-1 | Pneumatic connection 4 | Sub-base, size 2 as per ISO 5599-1 |
Pneumatic connection 5 | Sub-base, size 2 as per ISO 5599-1 | Note on materials | RoHS-compliant |
Seals material | FPM HNBR NBR | Housing material | Die-cast aluminum PA |
Material of screws | Steel Galvanized | Manufacturer ID | 567004 |
Specifications may be subject to change without notice
