Product Model

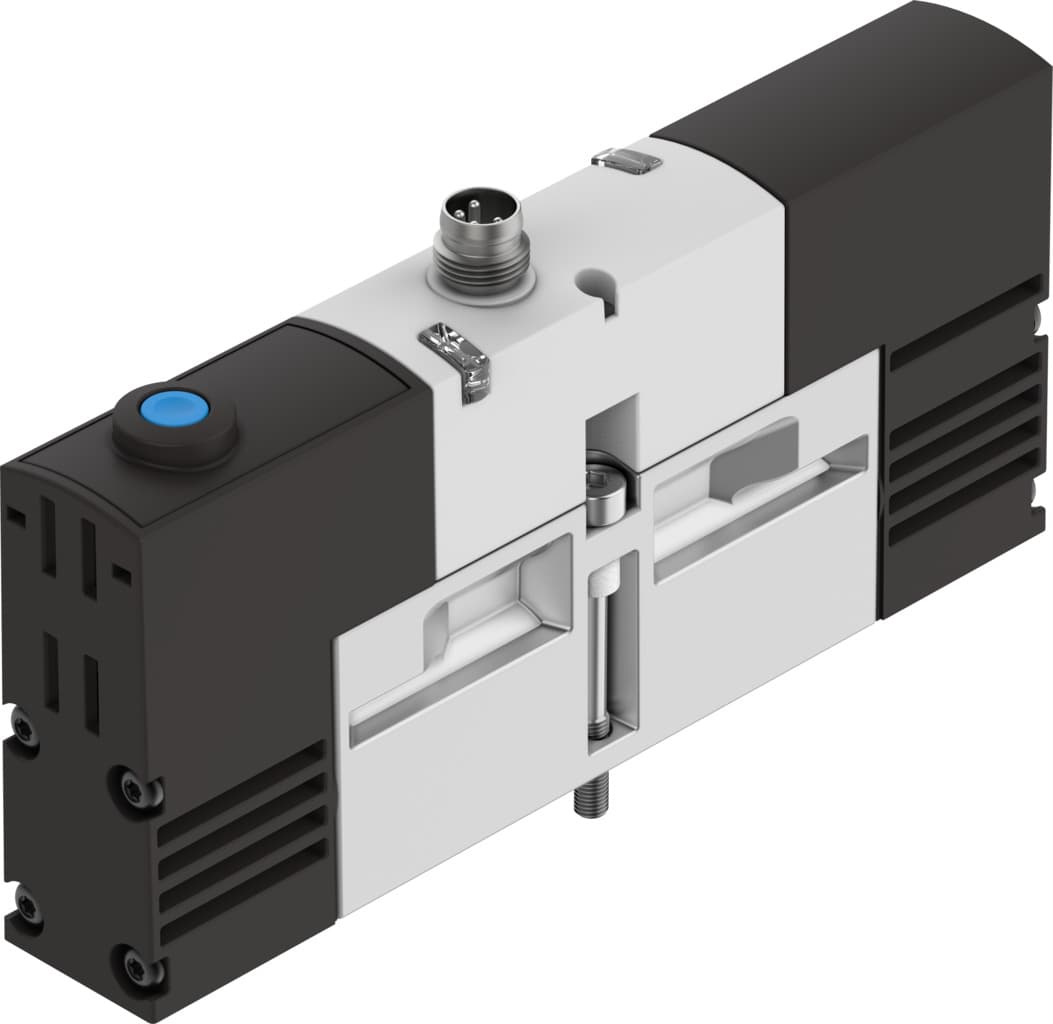

vsva-b-m52-mzh-a2-1r2l
Selling Points
- 1The Festo VSVA-B-M52-MZH-A2-1R2L solenoid valve offers a 5/2 monostable function, ensuring reliable and precise control in pneumatic systems. Its electrical actuation provides quick and efficient operation.
- 2With a standard nominal flow rate of 550 l/min, this valve is designed to handle high-pressure applications, making it suitable for demanding industrial environments.
- 3The valve operates within a wide pressure range of -0.9 to 10 bar, ensuring flexibility in various operating conditions. Its piston slide design enhances durability and performance.
- 4The VSVA-B-M52-MZH-A2-1R2L features a mechanical spring reset method, providing a secure and reliable mechanism for returning to the initial position after actuation.
- 5This solenoid valve is certified with multiple international standards, including C-Tick, CSA US (OL), and UL US – Recognized (OL), ensuring compliance with global safety regulations. It also meets the EU EMC directive and has CE marking for added assurance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Width | 18mm | Standard nominal flow rate | 550l/min |
Pneumatic working port | Sub-base, size 18 mm as per ISO 15407-1 Connecting plate size 02 according to VDMA 24563 | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Reset method | Mechanical spring | Certification | C-Tick c UL us - Recognized (OL) |
CE marking (see declaration of conformity) | As per EU EMC directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Degree of protection | IP65 | Nominal width | 5mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Conforms to standard | ISO 15407-1 VDMA 24563 |
Manual override | Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | External | Flow direction | Reversible |
Symbol | 00991190 | Lap | Overlap |
Reverse polarity protection | for all electrical connections | Additional functions | Holding current reduction Safety shut-down |
Signal status display | LED | Pilot pressure MPa | 0.3MPa 0.8MPa |
Pilot pressure | 3bar 8bar | Flow rate of pneumatic valve | 750l/min |
Flow rate of pneumatic valve on individual sub-base | 550l/min | Optimized flow rate of pneumatic valve pneumatically concatenated flow | 550l/min |
Switching time off | 34ms | On switching time | 12ms |
DC operating voltage range | 21.6V 26.4V | Duty cycle | 100% |
Max. positive test pulse with 0 signal | 500μs | Max. negative test pulse on 1 signal | 500μs |
Coil characteristics | 24 V DC: low-current phase 1.0 W, high-current phase 2.4 W | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
Relative air humidity | 0 - 90 % | Protection against direct and indirect contact | PELV |
Ambient temperature | -5°C 50°C | Max. tightening torque for valve mounting | 0.9Nm 1.1Nm |
Product weight | 140g | Electrical connection | 4-pin M8x1 Central plug Round design |
Type of mounting | On sub-base | Note on materials | RoHS-compliant |
Manufacturer ID | 534785 |
Specifications may be subject to change without notice
