Product Model
vsva-b-p53c-h-a2-1r2l
Selling Points
- 1The VSVA-B-P53C-H-A2-1R2L solenoid valve offers a standard nominal flow rate of 450 l/min, ensuring efficient operation in various industrial settings.
- 2This valve is electrically actuated, providing precise control and reliability in pneumatic systems. It operates within a voltage range of 21.6 to 26.4 V DC.
- 3With a width of 18 mm and a robust design structure, the VSVA-B-P53C-H-A2-1R2L is built to withstand harsh industrial environments. It features a piston slide and mechanical spring return for reliable operation.
- 4The valve conforms to international standards such as ISO 15407-1 and VDMA 24563, ensuring compliance with safety regulations. It also carries the CE mark and is recognized by UL and CSA.
- 5Suitable for a wide range of applications, this valve can be used in both throttleable and non-reversible configurations. It supports internal piloting and has a positive overlap, making it versatile for various industrial needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/3, closed | Actuation type | Electrical |
Width | 18mm | Standard nominal flow rate | 450l/min |
Pneumatic working port | Sub-base, size 18 mm as per ISO 15407-1 Connecting plate size 02 according to VDMA 24563 | Operating voltage | 24V DC |
Operating pressure | 3bar 8bar | Structural design | Piston gate valve |
Reset method | Mechanical spring | Certification | C-Tick c UL us - Recognized (OL) |
CE marking (see declaration of conformity) | As per EU EMC directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Degree of protection | IP65 | Nominal width | 5mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Conforms to standard | ISO 15407-1 VDMA 24563 |
Manual override | Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | Internal | Flow direction | Non-reversible |

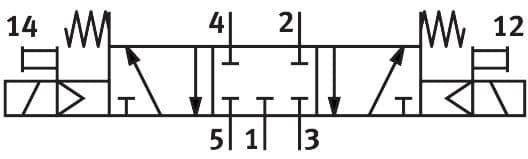

Symbol | 00991080 | Lap | Overlap |
Reverse polarity protection | for all electrical connections | Additional functions | Holding current reduction Safety shut-down |
Signal status display | LED | Flow rate of pneumatic valve | 650l/min |
Flow rate of pneumatic valve on individual sub-base | 500l/min | Optimized flow rate of pneumatic valve pneumatically concatenated flow | 450l/min |
Switching time off | 36ms | On switching time | 15ms |
DC operating voltage range | 21.6V 26.4V | Duty cycle | 100% |
Max. positive test pulse with 0 signal | 500μs | Max. negative test pulse on 1 signal | 500μs |
Coil characteristics | 24 V DC: low-current phase 1.0 W, high-current phase 2.4 W | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
Relative air humidity | 0 - 90 % | Protection against direct and indirect contact | PELV |
Ambient temperature | -5°C 50°C | Max. tightening torque for valve mounting | 0.9Nm 1.1Nm |
Product weight | 140g | Electrical connection | 4-pin M8x1 Central plug Round design |
Type of mounting | On sub-base | Note on materials | RoHS-compliant |
Manufacturer ID | 534778 |
Specifications may be subject to change without notice
