Product Model

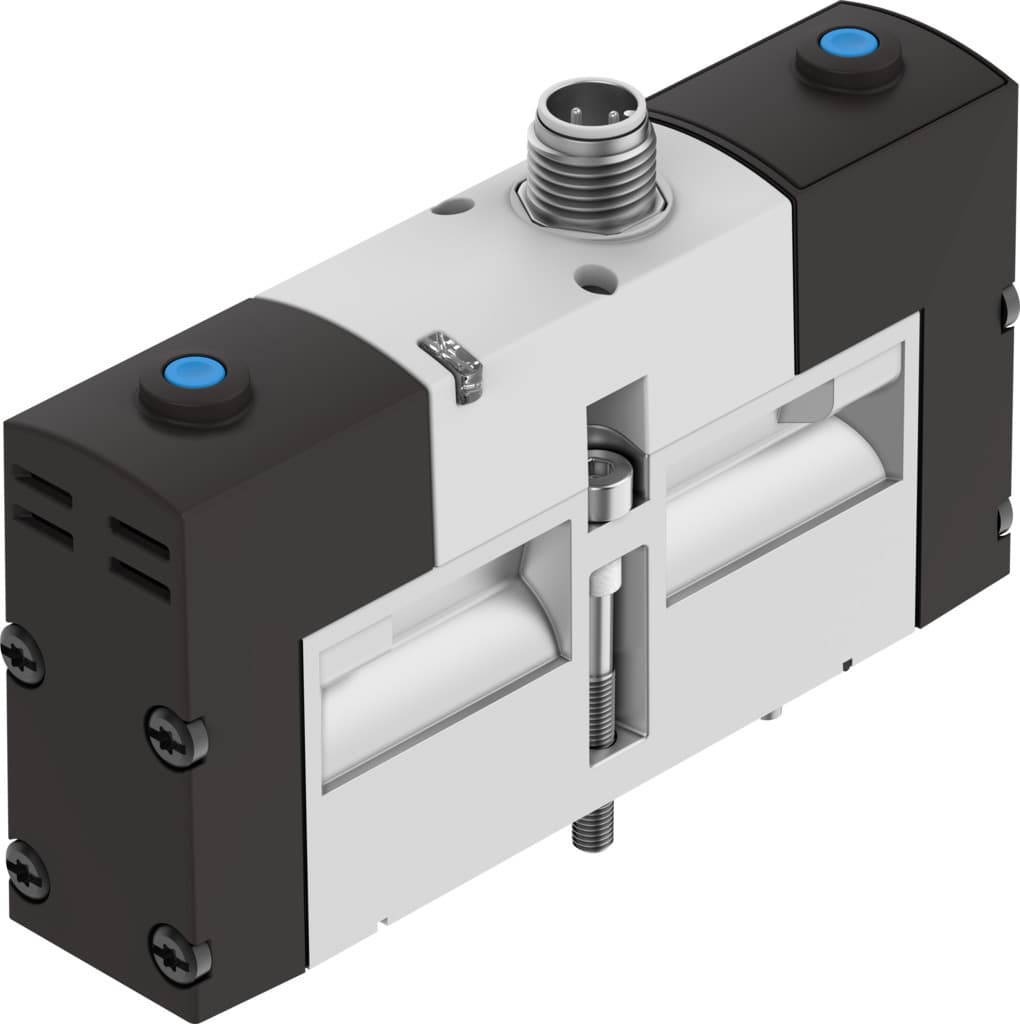

vsva-b-p53u-h-a1-1r5l
Selling Points
- 1High-Performance Pneumatic Control: The Festo VSVA-B-P53U-H-A1-1R5L solenoid valve offers reliable 5/3 pressurized function, ensuring precise control in various industrial applications.
- 2Electrical Actuation: With electrical actuation, this valve provides fast and efficient operation, making it suitable for demanding pneumatic systems.
- 3IP65 Protection: Featuring IP65 protection, the valve is designed to withstand harsh environments and maintain its performance in challenging conditions.
- 4Compact Design: The round design with a central plug and M12x1 connection ensures a compact footprint, making it easy to integrate into tight spaces.
- 5High Flow Rate: Capable of handling a standard nominal flow rate of 1000 l/min, this valve is ideal for applications requiring high airflow rates.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/3, pressurized | Actuation type | Electrical |
Width | 26mm | Standard nominal flow rate | 1000l/min |
Pneumatic working port | Sub-base, size 26 mm according to ISO 15407-1 | Operating voltage | 24V DC |
Operating pressure | 3bar 8bar | Structural design | Piston gate valve |
Reset method | Mechanical spring | Certification | RCM compliance mark c UL us - Recognized (OL) |
CE marking (see declaration of conformity) | As per EU EMC directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Degree of protection | IP65 NEMA 4 | Nominal width | 9mm |
Width dimension | 27mm | Exhaust air function | With flow control option Via throttle plate Via individual sub-base |
Sealing principle | Soft | Mounting position | Any |
Conforms to standard | ISO 15407-1 | Manual override | Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | Internal |
Flow direction | Non-reversible | Symbol | 00991083 |
Lap | Overlap | Reverse polarity protection | for all electrical connections |
Additional functions | Holding current reduction Safety shut-down | Signal status display | LED |
Flow rate of pneumatic valve | 1400l/min | Flow rate of pneumatic valve on individual sub-base | 1100l/min |
Optimized flow rate of pneumatic valve pneumatically concatenated flow | 1000l/min | Switching time off | 52ms |
On switching time | 20ms | Duty cycle | 100% |
Max. positive test pulse with 0 signal | 400μs | Max. negative test pulse on 1 signal | 100μs |
Nominal pick-up current per solenoid coil | 110 mA to 20 ms | Nominal current with current reduction | 30 mA after 20 ms |
Coil characteristics | 24 V DC: low-current phase 1.0 W, high-current phase 2.4 W | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 50°C | Relative air humidity | 0 - 90 % |
Protection against direct and indirect contact | PELV | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 50°C | Max. tightening torque for valve mounting | 1.8Nm 2.2Nm |
Product weight | 270g | Electrical connection | 3-pin M12x1 Central plug Round design |
Type of mounting | On sub-base With through-hole and screw | Note on materials | RoHS-compliant |
Seals material | FPM HNBR NBR | Housing material | Die-cast aluminum |
Manufacturer ID | 534561 |
Specifications may be subject to change without notice
