Product Model
vsva-b-p53u-zd-d2-1r5l
Selling Points
- 1High Flow Rate: Up to 2700 l/min for efficient fluid control.
- 2Electrical Actuation: Easy to operate with 24V DC power.
- 3Pressurized Function: 5/3-way valve design for precise control.
- 4Robust Construction: IP65 and NEMA 4 protection against dust and water.
- 5Compliance Certifications: C-Tick, CSA, UL, and KC EMC certified for global use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/3, pressurized | Actuation type | Electrical |
Width | 52mm | Standard nominal flow rate | 2700l/min |
Pneumatic working port | Sub-base, size 2 according to ISO 5599-1 G3/8 | Operating voltage | 24V DC |
Operating pressure | -0.9bar 16bar | Structural design | Piston gate valve |
Certification | C-Tick c CSA us (OL) c UL us - Recognized (OL) | KC characters | KC EMC |
CE marking (see declaration of conformity) | As per EU EMC directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Degree of protection | IP65 NEMA 4 | Nominal width | 15mm |
Width dimension | 59mm | Exhaust air function | With flow control option Via throttle plate Via individual sub-base |
Sealing principle | Soft | Mounting position | Any |
Conforms to standard | ISO 5599-1 | Manual override | Detenting Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | External |

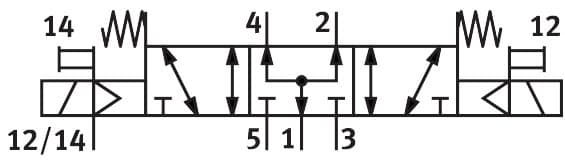

Flow direction | Any | Symbol | 00991753 |
Lap | Overlap | Signal status display | LED |
Pilot pressure MPa | 0.3MPa 1MPa | Pilot pressure | 3bar 10bar |
Flow rate of pneumatic valve | 3600l/min | Flow rate of pneumatic valve on individual sub-base | 2300l/min |
Optimized flow rate of pneumatic valve pneumatically concatenated flow | 2700l/min | Switching time off | 60ms |
On switching time | 23ms | Duty cycle | 100% |
Max. positive test pulse with 0 signal | 1000μs | Max. negative test pulse on 1 signal | 3500μs |
Max. current consumption | 72mA | Nominal pick-up current per solenoid coil | 165 mA to 30 ms |
Nominal current with current reduction | 35 mA after 30 ms | Coil characteristics | 24 V DC: 1.6 W |
Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
Relative air humidity | 0 - 90 % | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 50°C | Product weight | 780g |
Electrical connection | 3-pin M12x1 Central plug Round design | Type of mounting | On sub-base |
Pilot air port 12/14 | Sub-base, size 2 as per ISO 5599-1 | Pilot exhaust air port 82/84 | Ducted Not ducted as per standard Optionally: |
Pneumatic connection 1 | Sub-base, size 2 as per ISO 5599-1 | Pneumatic connection 2 | Sub-base, size 2 as per ISO 5599-1 |
Pneumatic connection 3 | Sub-base, size 2 as per ISO 5599-1 | Pneumatic connection 4 | Sub-base, size 2 as per ISO 5599-1 |
Pneumatic connection 5 | Sub-base, size 2 as per ISO 5599-1 | Note on materials | RoHS-compliant |
Seals material | FPM HNBR NBR | Housing material | Die-cast aluminum PA |
Material of screws | Steel Galvanized | Manufacturer ID | 567009 |
Specifications may be subject to change without notice
