Product Model

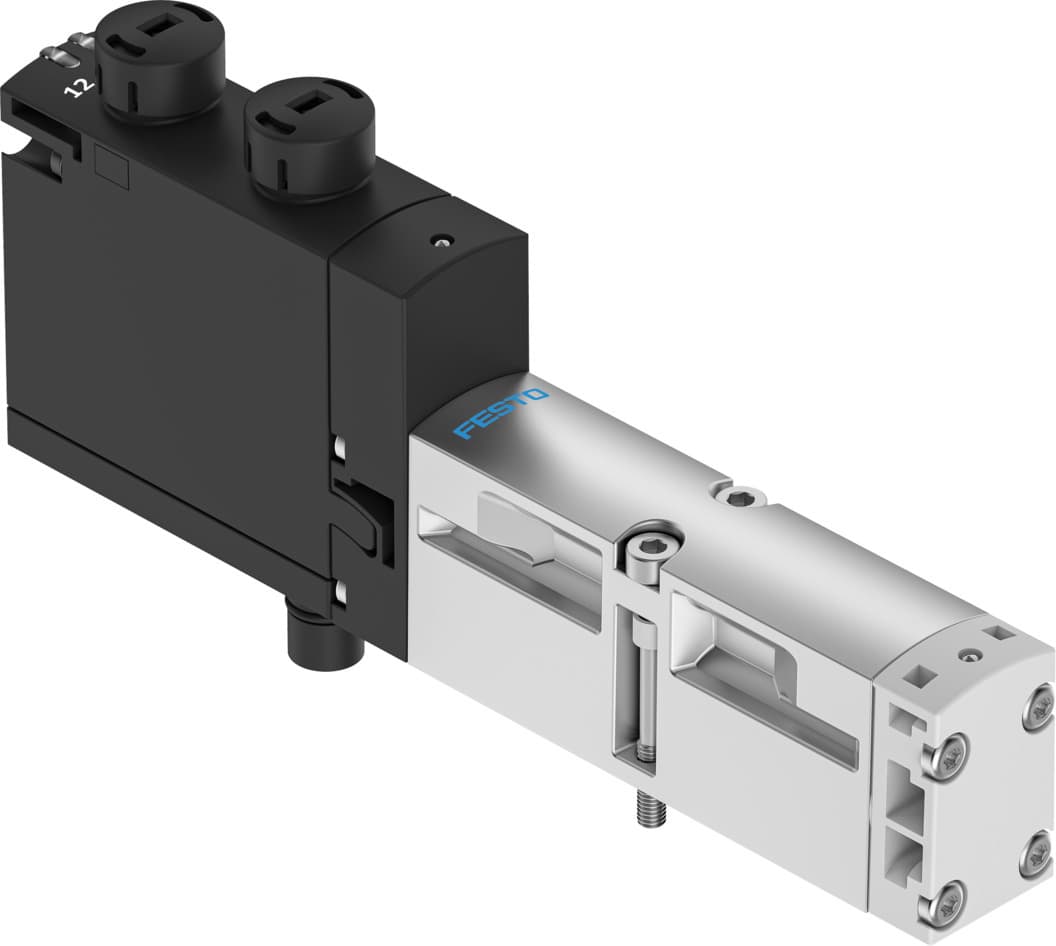

vsva-b-t22c-azh-a2-1t1l
Selling Points
- 1High-Performance Operation: 2x2/2-way monostable operation ensures reliable control.
- 2Electrical Actuation: Easy to integrate with electrical systems for precise control.
- 3High Flow Rate: Standard nominal flow rate of 500 l/min for efficient air management.
- 4Durable Design: IP65 and NEMA 4 protection against dust and water, ensuring long-lasting performance.
- 5Versatile Mounting Options: Compatible with various mounting positions, including on sub-base, for flexible installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 2x2/2 closed, monostable | Actuation type | Electrical |
Width | 18mm | Standard nominal flow rate | 500l/min |
Pneumatic working port | Sub-base, size 18 mm as per ISO 15407-1 Connecting plate size 02 according to VDMA 24563 G1/8 | Operating voltage | 24V DC |
Operating pressure | 3bar 10bar | Structural design | Piston gate valve |
Reset method | Pneumatic spring | Certification | c UL us - Recognized (OL) |
Degree of protection | IP65 NEMA 4 | Exhaust air function | With flow control option Via individual sub-base |
Sealing principle | Soft | Mounting position | Any |
Manual override | Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | External Internal | Flow direction | Non-reversible |
Symbol | 00992246 | Lap | Overlap |
Signal status display | LED | Pilot pressure MPa | 0.3MPa 1MPa |
Pilot pressure | 3bar 10bar | Flow rate of pneumatic valve | 700l/min |
Flow rate of pneumatic valve on individual sub-base | 500l/min | Optimized flow rate of pneumatic valve, pneumatically concatenated flow | 650l/min |
Optimized flow rate of pneumatic valve pneumatically concatenated flow | 500l/min | Switching time off | 38ms |
On switching time | 20ms | Duty cycle | 100% |
Max. positive test pulse with 0 signal | 1700μs | Max. negative test pulse on 1 signal | 1200μs |
Max. current consumption | 60mA | Nominal operating voltage DC | 24V |
Coil characteristics | 24 V DC: 1.3 W | Surge resistance | 2.5kV |
Contamination level | 3 | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Relative air humidity | 0 - 90 % | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 50°C | Product weight | 190g |
Electrical connection | Plug-in as per ISO 15407-2 | Type of mounting | On sub-base |
Pilot air port 12/14 | Sub-base, size 18 mm as per ISO 15407-2 | Pilot exhaust air port 82/84 | Ducted Not ducted as per standard Optionally: |
Pneumatic connection 1 | Sub-base, size 18 mm as per ISO 15407-2 | Pneumatic connection 2 | Sub-base, size 18 mm as per ISO 15407-2 |
Pneumatic connection 3 | Sub-base, size 18 mm as per ISO 15407-2 | Pneumatic connection 4 | Sub-base, size 18 mm as per ISO 15407-2 |
Pneumatic connection 5 | Sub-base, size 18 mm as per ISO 15407-2 | Note on materials | RoHS-compliant |
Seals material | FPM HNBR NBR | Housing material | Die-cast aluminum PA |
Material of screws | Steel, galvanized | Manufacturer ID | 8033475 |
Specifications may be subject to change without notice
