Product Model
vsva-b-t32c-azd-a1-1t1l
Selling Points

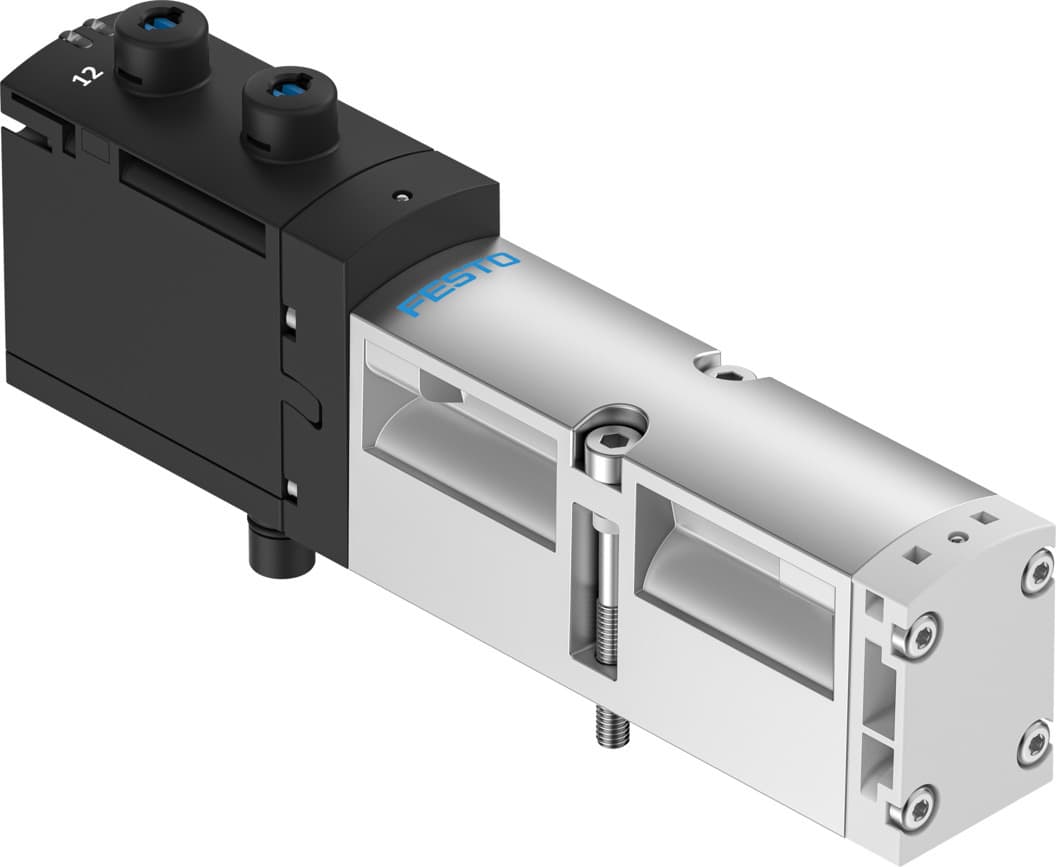

- 1The Festo VSVA-B-T32C-AZD-A1-1T1L is a high-performance solenoid valve designed for 3/2-way pneumatic control, ensuring precise flow rates and reliable operation.
- 2This valve features an external pilot operation, making it suitable for a variety of applications including valve terminals VTSA and VTSA-F.
- 3With a standard nominal flow rate of 900 l/min and operating pressure range of 3 to 10 bar, it offers efficient and durable performance.
- 4The valve is constructed with soft sealing principles, ensuring minimal leakage and maximum reliability in harsh environments.
- 5Equipped with an LED signal condition display, this valve provides clear visual feedback for easy monitoring and control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 2x3/2, closed, monostable | Actuation type | Electrical |
Width | 26mm | Standard nominal flow rate | 900l/min |
Pneumatic working port | Sub-base, size 26 mm according to ISO 15407-1 Connecting plate size 01 according to VDMA 24563 G1/4 | Operating voltage | 24V DC |
Operating pressure | 3bar 10bar | Structural design | Piston gate valve |
Certification | c UL us - Recognized (OL) | Degree of protection | IP65 NEMA 4 |
Exhaust air function | With flow control option Via throttle plate Via individual sub-base | Sealing principle | Soft |
Mounting position | Any | Manual override | Detenting Non-detenting Covered |
Type of control | Pilot-controlled | Pilot air supply port | External Internal |
Flow direction | Non-reversible | Symbol | 00991817 |
Lap | Overlap | Signal status display | LED |
Pilot pressure MPa | 0.3MPa 1MPa | Pilot pressure | 3bar 10bar |
Flow rate of pneumatic valve | 1250l/min | Flow rate of pneumatic valve on individual sub-base | 1100l/min |
Optimized flow rate of pneumatic valve, pneumatically concatenated flow | 1150l/min | Optimized flow rate of pneumatic valve pneumatically concatenated flow | 900l/min |
Switching time off | 38ms | On switching time | 20ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 1500μs |
Max. negative test pulse on 1 signal | 1200μs | Max. current consumption | 60mA |
Nominal operating voltage DC | 24V | Coil characteristics | 24 V DC: 1.3 W |
Surge resistance | 2.5kV | Contamination level | 3 |
Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Relative air humidity | 0 - 90 % |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
Product weight | 335g | Electrical connection | Plug-in as per ISO 15407-2 |
Type of mounting | On sub-base | Pilot air port 12/14 | Sub-base, size 26 mm as per ISO 15407-2 |
Pilot exhaust air port 82/84 | Ducted Not ducted as per standard Optionally: | Pneumatic connection 1 | Sub-base, size 26 mm as per ISO 15407-2 |
Pneumatic connection 2 | Sub-base, size 26 mm as per ISO 15407-2 | Pneumatic connection 3 | Sub-base, size 26 mm as per ISO 15407-2 |
Pneumatic connection 4 | Sub-base, size 26 mm as per ISO 15407-2 | Pneumatic connection 5 | Sub-base, size 26 mm as per ISO 15407-2 |
Note on materials | RoHS-compliant | Seals material | FPM HNBR NBR |
Housing material | Die-cast aluminum PA | Material of screws | Steel, galvanized |
Manufacturer ID | 539150 |
Specifications may be subject to change without notice
