Product Model
vsva-b-t32u-ah-a2-1r2l
Selling Points
- 1The Festo VSVA-B-T32U-AH-A2-1R2L air solenoid valve features a 2x3/2-way, open, monostable valve function, ensuring precise control in industrial automation applications.
- 2With an electrical actuation type and a compact 18mm width, this valve is ideal for applications requiring high precision and space efficiency.
- 3The valve operates at a standard nominal flow rate of 400 l/min and supports operating pressures of 0.3 MPa to 0.8 MPa, making it suitable for various industrial conditions.
- 4The Festo VSVA-B-T32U-AH-A2-1R2L is designed with a piston gate valve and features a pneumatic spring reset method, ensuring reliable operation and easy maintenance.
- 5This valve is certified to meet international safety standards, including C-Tick, c UL us – Recognized (OL), and CE marking, ensuring compliance with EU EMC directives and UK RoHS instructions. It also features IP65 degree of protection and soft sealing principles for enhanced durability and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 2x3/2, open, monostable | Actuation type | Electrical |
Width | 18mm | Standard nominal flow rate | 400l/min |
Pneumatic working port | Sub-base, size 18 mm as per ISO 15407-1 Connecting plate size 02 according to VDMA 24563 | Operating voltage | 24V DC |
Operating pressure | 3bar 8bar | Structural design | Piston gate valve |
Reset method | Pneumatic spring | Certification | C-Tick c UL us - Recognized (OL) |
CE marking (see declaration of conformity) | As per EU EMC directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Degree of protection | IP65 | Nominal width | 5mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Conforms to standard | ISO 15407-1 VDMA 24563 |
Manual override | Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | Internal | Flow direction | Non-reversible |

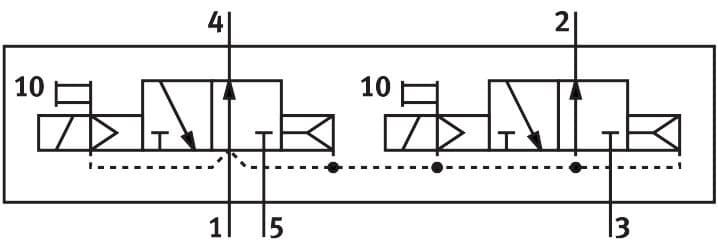

Symbol | 00991807 | Lap | Overlap |
Reverse polarity protection | for all electrical connections | Additional functions | Holding current reduction Safety shut-down |
Signal status display | LED | Flow rate of pneumatic valve | 600l/min |
Flow rate of pneumatic valve on individual sub-base | 450l/min | Optimized flow rate of pneumatic valve pneumatically concatenated flow | 400l/min |
Switching time off | 22ms | On switching time | 10ms |
DC operating voltage range | 21.6V 26.4V | Duty cycle | 100% |
Max. positive test pulse with 0 signal | 500μs | Max. negative test pulse on 1 signal | 500μs |
Coil characteristics | 24 V DC: low-current phase 1.0 W, high-current phase 2.4 W | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
Relative air humidity | 0 - 90 % | Protection against direct and indirect contact | PELV |
Ambient temperature | -5°C 50°C | Max. tightening torque for valve mounting | 0.9Nm 1.1Nm |
Product weight | 140g | Electrical connection | 4-pin M8x1 Central plug Round design |
Type of mounting | On sub-base | Note on materials | RoHS-compliant |
Manufacturer ID | 534772 |
Specifications may be subject to change without notice
