Product Model

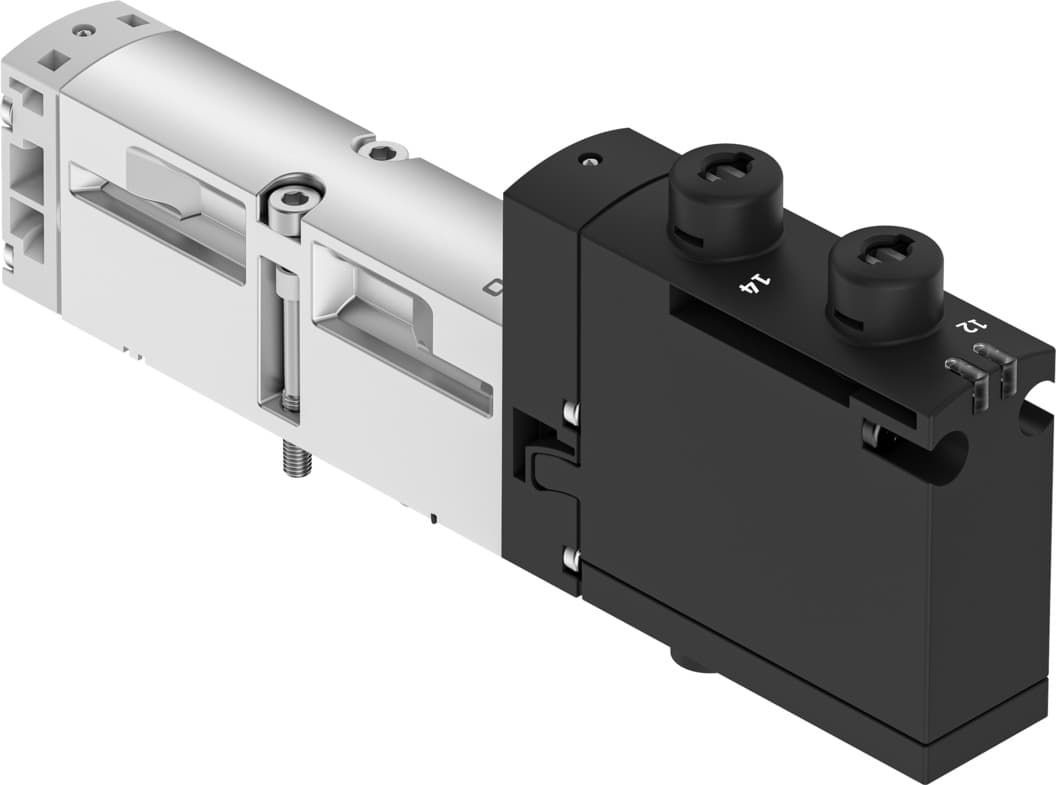

vsva-b-t32u-azd-a2-1t1l
Selling Points
- 1The Festo VSVA-B-T32U-AZD-A2-1T1L air solenoid valve offers a standard nominal flow rate of 400 l/min, ensuring efficient operation in various pneumatic applications.
- 2With a protection class of IP65 and NEMA 4, this valve is designed to withstand harsh environments and maintain its performance over time.
- 3The valve is actuated electrically, providing precise control and quick switching times of 12 ms on and 30 ms off, making it suitable for demanding applications.
- 4The VSVA-B-T32U-AZD-A2-1T1L can be mounted on any sub-base, offering flexibility in installation and integration with various pneumatic systems.
- 5Compliant with ISO 13849-2 and designed for safety-related applications, this valve ensures reliable operation and meets stringent safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 2x3/2, open, monostable | Actuation type | Electrical |
Width | 18mm | Standard nominal flow rate | 400l/min |
Pneumatic working port | Sub-base, size 18 mm as per ISO 15407-1 Connecting plate size 02 according to VDMA 24563 G1/8 | Operating voltage | 24V DC |
Operating pressure | 3bar 10bar | Structural design | Piston gate valve |
Certification | c UL us - Recognized (OL) | Degree of protection | IP65 NEMA 4 |
Exhaust air function | With flow control option Via throttle plate Via individual sub-base | Sealing principle | Soft |
Mounting position | Any | Manual override | Detenting Non-detenting Covered |
Type of control | Pilot-controlled | Pilot air supply port | External Internal |
Flow direction | Non-reversible | Symbol | 00991819 |
Lap | Overlap | Signal status display | LED |
Pilot pressure MPa | 0.3MPa 1MPa | Pilot pressure | 3bar 10bar |
Flow rate of pneumatic valve | 600l/min | Flow rate of pneumatic valve on individual sub-base | 500l/min |
Optimized flow rate of pneumatic valve, pneumatically concatenated flow | 550l/min | Optimized flow rate of pneumatic valve pneumatically concatenated flow | 400l/min |
Switching time off | 30ms | On switching time | 12ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 1700μs |
Max. negative test pulse on 1 signal | 1200μs | Max. current consumption | 60mA |
Nominal operating voltage DC | 24V | Coil characteristics | 24 V DC: 1.3 W |
Surge resistance | 2.5kV | Contamination level | 3 |
Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Relative air humidity | 0 - 90 % |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
Product weight | 190g | Electrical connection | Plug-in as per ISO 15407-2 |
Type of mounting | On sub-base | Pilot air port 12/14 | Sub-base, size 18 mm as per ISO 15407-2 |
Pilot exhaust air port 82/84 | Ducted Not ducted as per standard Optionally: | Pneumatic connection 1 | Sub-base, size 18 mm as per ISO 15407-2 |
Pneumatic connection 2 | Sub-base, size 18 mm as per ISO 15407-2 | Pneumatic connection 3 | Sub-base, size 18 mm as per ISO 15407-2 |
Pneumatic connection 4 | Sub-base, size 18 mm as per ISO 15407-2 | Pneumatic connection 5 | Sub-base, size 18 mm as per ISO 15407-2 |
Note on materials | RoHS-compliant | Seals material | FPM HNBR NBR |
Housing material | Die-cast aluminum PA | Material of screws | Steel, galvanized |
Manufacturer ID | 539178 |
Specifications may be subject to change without notice
