Product Model

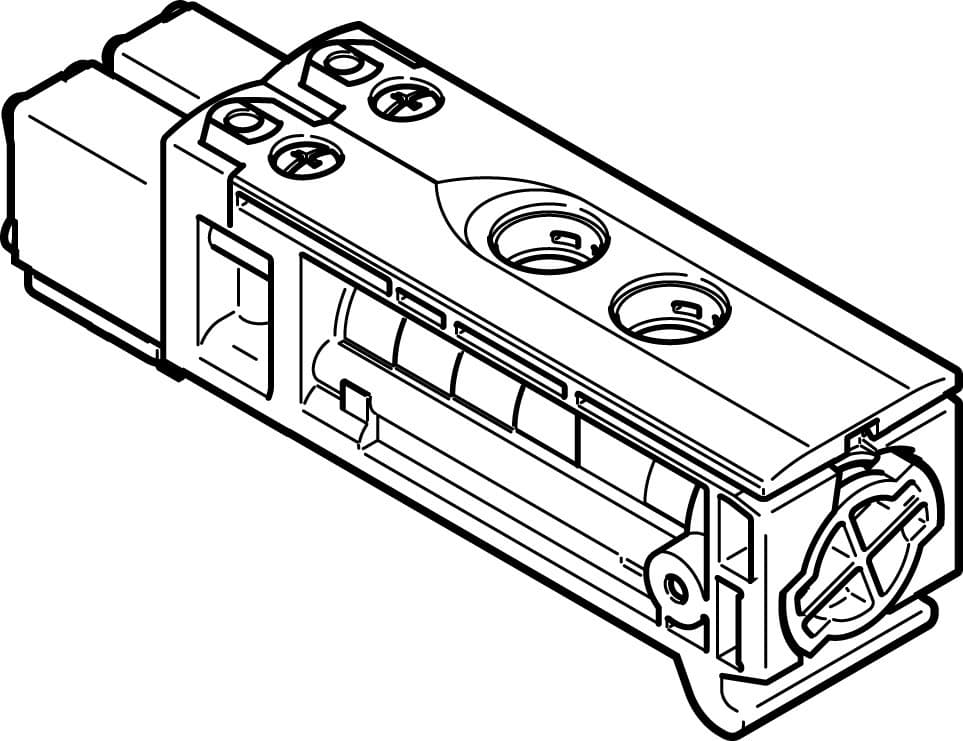

vuvb-st12-b52-zh-qx-1t1
Selling Points
- 1The VUVB-ST12-B52-ZH-QX-1T1 offers a reliable 5/2 bistable valve function for precise control.
- 2This solenoid valve is electrically actuated, providing quick and efficient operation.
- 3With a standard nominal flow rate of 260-450 l/min, it ensures optimal performance in various applications.
- 4The valve is designed with IP65 protection, ensuring durability and resistance to environmental factors.
- 5The soft sealing principle ensures reliable operation and minimal maintenance requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, bistable | Actuation type | Electrical |
Valve size | 24mm | Standard nominal flow rate | 260l/min 450l/min |
Pneumatic working port | QS-4 QS-6 | Operating pressure | 2.8bar 8bar |
Structural design | Poppet valve with self-holding function | Degree of protection | IP65 |
Nominal width | 4mm | Exhaust air function | Without flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | External | Flow direction | Non-reversible |
Symbol | 00995756 | Information on operating pressure | 0 – 0.8 bar with external pilot air 0 - 8 bar with external pilot air |
Pilot pressure MPa | 0.28MPa 0.8MPa | Pilot pressure | 2.8bar 8bar |
Changeover time | 10ms | Duty cycle | 100% |
Max. positive test pulse with 0 signal | 800μs | Max. negative test pulse on 1 signal | 300μs |
Coil characteristics | 24 V DC: 1.0 W | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 60°C | Noise level | 85dB(A) |
Ambient temperature | -5°C 60°C | Product weight | 57.1g |
Electrical connection | Via sub-base | Type of mounting | On sub-base |
Auxiliary pilot air port 14 | Sub-base | Pneumatic connection 1 | Sub-base |
Pneumatic connection 3 | Sub-base | Pneumatic connection 5 | Sub-base |
Note on materials | RoHS-compliant | Seals material | NBR TPE-U(PU) |
Housing material | PA-reinforced | Piston slide material | Wrought aluminum alloy |
Manufacturer ID | 557650 |
Specifications may be subject to change without notice
