Product Model

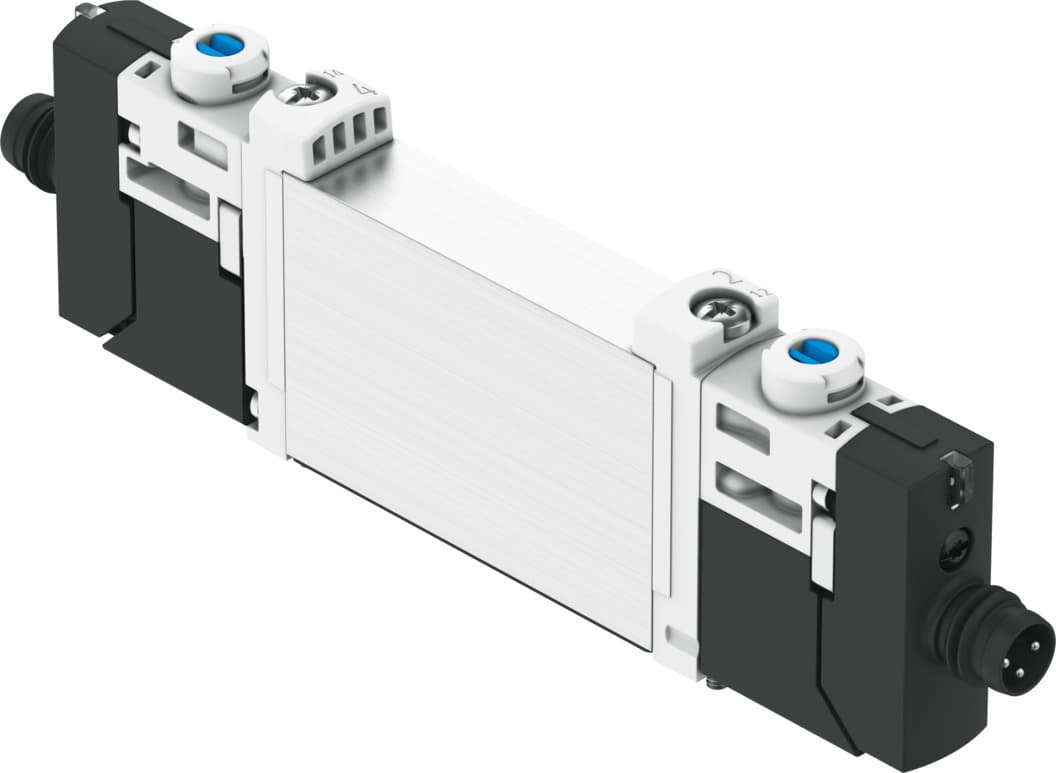

vuvg-b10-b52-zt-f-1r8l
Selling Points
- 1Standard nominal flow rate of 210 l/min.
- 2Reliable and precise control with electric actuation.
- 3Valve size of 10 mm for space-saving installations.
- 4Built to withstand demanding industrial conditions.
- 5Suitable for various pneumatic systems and applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, bistable | Actuation type | Electrical |
Valve size | 10mm | Standard nominal flow rate | 210l/min 330l/min |
Pneumatic working port | Flange | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Certification | RCM compliance mark c UL us - Recognized (OL) | Degree of protection | IP65 With plug socket |
Nominal width | 4mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting Non-detenting Covered | Type of control | Pilot-controlled |
Pilot air supply port | External | Symbol | 00991125 |
Lap | Overlap | Pilot pressure MPa | 0.15MPa 0.8MPa |
Pilot pressure | 1.5bar 8bar | Suitability for vacuum | yes |
Changeover time | 8ms | Duty cycle | 100% |
Max. positive test pulse with 0 signal | 700μs | Max. negative test pulse on 1 signal | 900μs |
Coil characteristics | 24 V DC: 1.0 W | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Restricted ambient and media temperature | -5 - 50 °C Without holding power reduction |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 5 according to ISO 14644-1 |
Temperature of medium | -5°C 60°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 60°C | Product weight | 45g |
Electrical connection | Via electrical sub-base | Type of mounting | On terminal strip |
Note on materials | RoHS-compliant | Seals material | HNBR NBR |
Housing material | Wrought aluminum alloy | Manufacturer ID | 574238 |
Specifications may be subject to change without notice
