Product Model

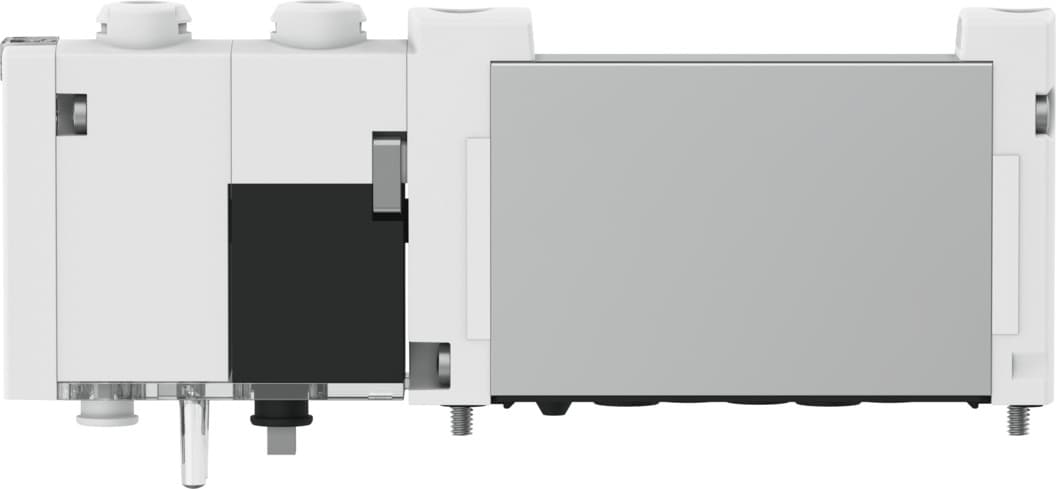

vuvg-b10-m52-rzt-f-1t1l
Selling Points
- 1Compact and Versatile Design: The VUVG-B10-M52-RZT-F-1T1L is a compact, all-purpose solenoid valve designed for various industrial applications.
- 2High Flow Rate: Standard nominal flow rate of 220 l/min ensures efficient operation in demanding environments.
- 3Electrical Actuation: Easily controlled with an electrical actuation type, making it simple to integrate into your system.
- 4Durable Construction: Built with a piston gate valve design and IP65/IP67 degree of protection for reliable performance.
- 5Flexible Mounting Options: Can be mounted in any position, offering flexibility in system design and installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Valve size | 10mm | Standard nominal flow rate | 220l/min |
Pneumatic working port | Flange | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Reset method | Mechanical spring Pneumatic spring | Certification | c UL us - Recognized (OL) |
Degree of protection | IP65 IP67 | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | External | Flow direction | Reversible |
Symbol | 00992849 | Lap | Overlap |
Signal status display | LED | Pilot pressure MPa | 0.15MPa 0.8MPa |
Pilot pressure | 1.5bar 8bar | Max. switching frequency | 3Hz |
Switching time off | 21ms | On switching time | 9ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 1600μs |
Max. negative test pulse on 1 signal | 3000μs | Coil characteristics | 22 V DC: 1.0 W |
Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 60°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 60°C |
Product weight | 53g | Electrical connection | Via sub-base |
Type of mounting | On terminal strip | Note on materials | RoHS-compliant |
Seals material | HNBR NBR | Housing material | Wrought aluminum alloy |
Manufacturer ID | 573416 |
Specifications may be subject to change without notice
