Product Model
vuvg-b10-p53e-zt-f-1t1l
Selling Points
- 1Compact Design: 10 mm valve size for space-efficient installations.
- 2High Flow Rate: Standard nominal flow rate of 200 l/min for efficient air control.
- 3Versatile Operation: Operating pressure range from -0.09 MPa to 1 MPa, suitable for various applications.
- 4Advanced Safety Features: C UL us - Recognized (OL) approval and IP65/IP67 degree of protection for safe operation.
- 5Long Service Life: B10 value of 36 million cycles, ensuring reliable performance over time.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/3, exhausted | Actuation type | Electrical |
Valve size | 10mm | Standard nominal flow rate | 200l/min |
Pneumatic working port | Flange | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Reset method | Mechanical spring | Certification | c UL us - Recognized (OL) |
Degree of protection | IP65 IP67 | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | External | Flow direction | Reversible |

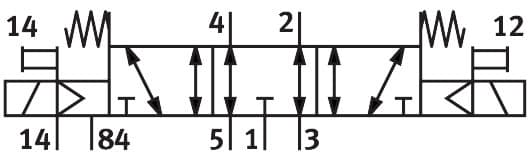

Symbol | 00991127 | Lap | Indefinite overlap |
Signal status display | LED | Pilot pressure MPa | 0.3MPa 0.8MPa |
Pilot pressure | 3bar 8bar | Max. switching frequency | 3Hz |
Switching time off | 38ms | On switching time | 12ms |
Changeover time | 16ms | Duty cycle | 100% |
Max. positive test pulse with 0 signal | 1600μs | Max. negative test pulse on 1 signal | 3000μs |
Coil characteristics | 22 V DC: 1.0 W | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 60°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 60°C | Product weight | 58g |
Electrical connection | Via sub-base | Type of mounting | On terminal strip |
Note on materials | RoHS-compliant | Seals material | HNBR NBR |
Housing material | Wrought aluminum alloy | Manufacturer ID | 573420 |
Specifications may be subject to change without notice
