Product Model

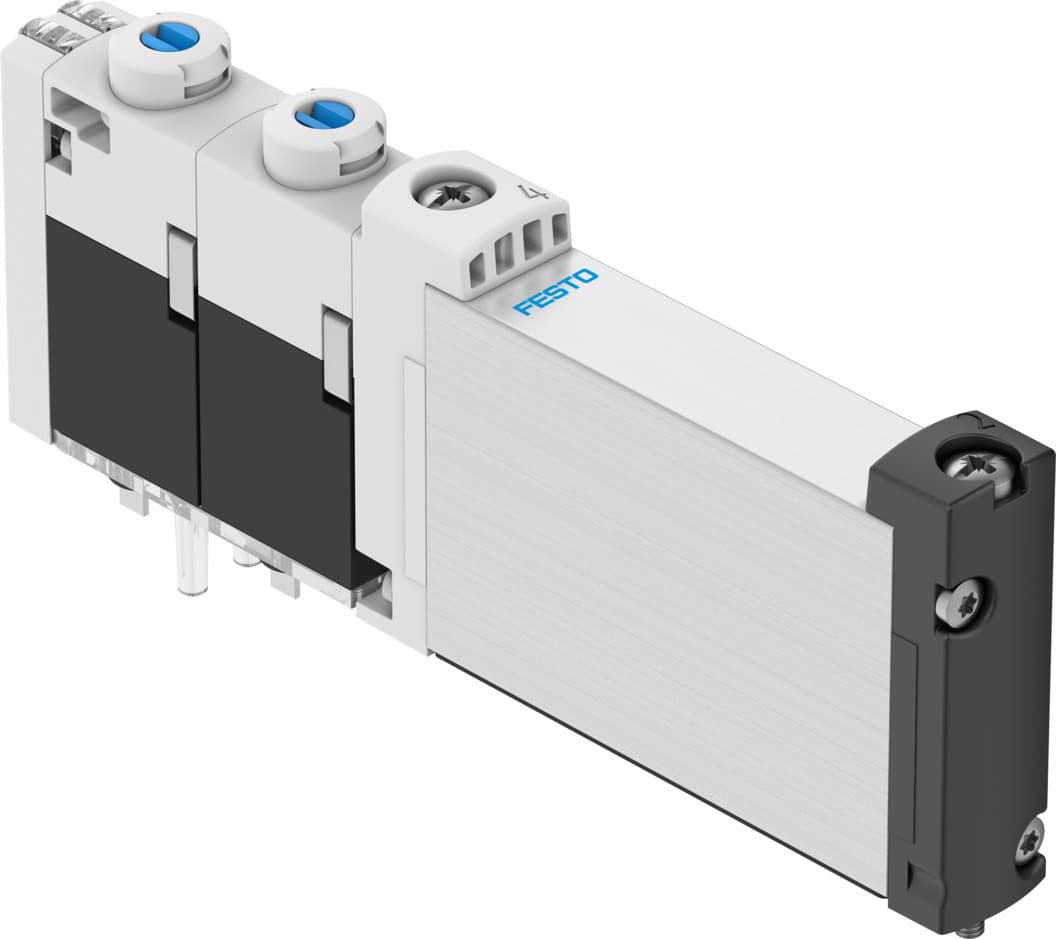

vuvg-b10-t32h-mzt-f-1t1l-ex2c
Selling Points
- 1130 l/min standard nominal flow rate ensures efficient operation.
- 2Monostable 2x3/2-way valve function with mechanical spring reset.
- 3Constructed with wrought aluminum alloy housing and HNBR/NBR seals.
- 4Can be mounted on manifold rail or terminal strip for flexibility.
- 5IP65/67 degree of protection and moderate corrosion resistance class (CRC 2).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 2x3/2, open/closed, monostable | Actuation type | Electrical |
Valve size | 10mm | Standard nominal flow rate | 130l/min |
Pneumatic working port | Flange | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Reset method | Mechanical spring | Certification | c UL us - Recognized (OL) |
Degree of protection | IP65 IP67 | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | External | Flow direction | Reversible |
Symbol | 00992947 | Lap | Overlap |
Signal status display | LED | Pilot pressure MPa | 0.2MPa 0.8MPa |
Pilot pressure | 2bar 8bar | Max. switching frequency | 3Hz |
Switching time off | 20ms | On switching time | 8ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 1600μs |
Max. negative test pulse on 1 signal | 3000μs | Coil characteristics | 22 V DC: 1.0 W |
Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Temperature of medium | -5°C 60°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 60°C |
Product weight | 59g | Electrical connection | Via sub-base |
Type of mounting | On terminal strip | Note on materials | RoHS-compliant |
Seals material | HNBR NBR | Housing material | Wrought aluminum alloy |
Manufacturer ID | 8041899 |
Specifications may be subject to change without notice
