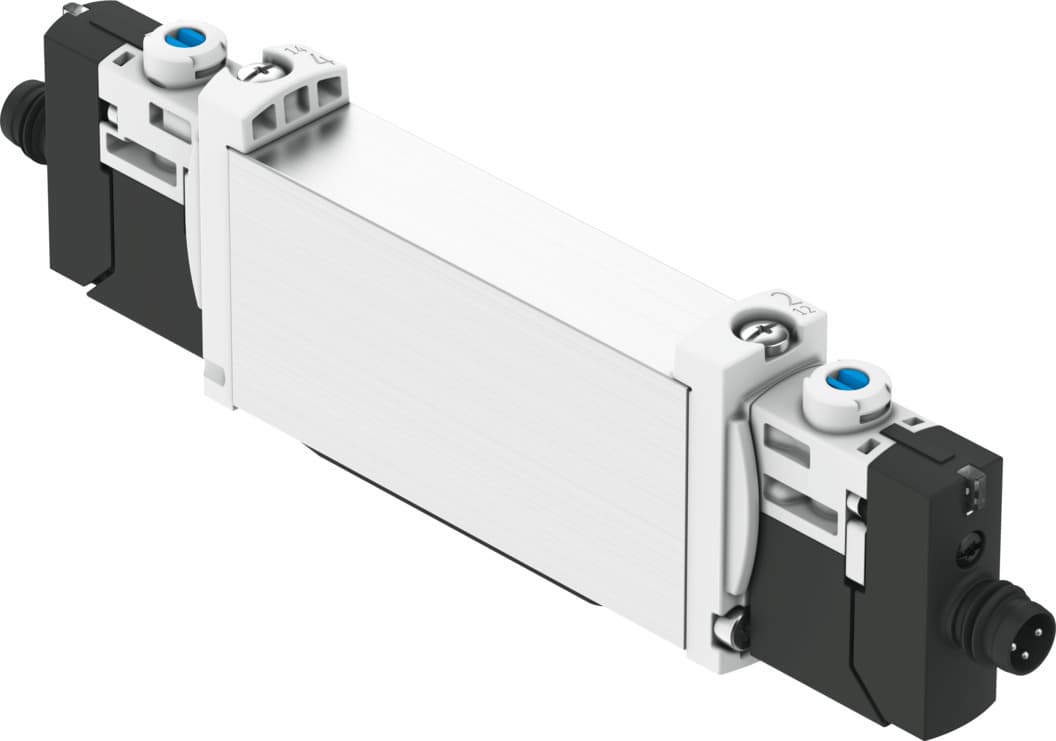

Product Model
vuvg-b14-b52-zt-f-1r8l
Selling Points
- 1Reliable Pneumatic Control: The Festo VUVG-B14-B52-ZT-F-1R8L offers precise and reliable pneumatic control with a 5/2 bistable operation.
- 2High Flow Rate: With a standard nominal flow rate of 570-680 l/min, this valve ensures efficient air flow in various applications.
- 3Compact Design: The valve size is 14mm, making it compact and suitable for space-constrained environments.
- 4Robust Construction: Constructed with wrought aluminum alloy and featuring IP65 degree of protection, this valve is durable and resistant to environmental factors.
- 5Versatile Mounting Options: Available for any mounting position and compatible with external pilot air supply, offering flexibility in installation and operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, bistable | Actuation type | Electrical |
Valve size | 14mm | Standard nominal flow rate | 570l/min 680l/min |
Pneumatic working port | Flange | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Certification | RCM compliance mark c UL us - Recognized (OL) | Degree of protection | IP65 With plug socket |
Nominal width | 5.6mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting Non-detenting Covered | Type of control | Pilot-controlled |
Pilot air supply port | External | Symbol | 00991125 |
Lap | Overlap | Pilot pressure MPa | 0.15MPa 0.8MPa |
Pilot pressure | 1.5bar 8bar | Suitability for vacuum | yes |
Changeover time | 8ms | Duty cycle | 100% |
Max. positive test pulse with 0 signal | 700μs | Max. negative test pulse on 1 signal | 900μs |
Coil characteristics | 24 V DC: 1.0 W | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Restricted ambient and media temperature | -5 - 50 °C Without holding power reduction |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 5 according to ISO 14644-1 |
Temperature of medium | -5°C 60°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 60°C | Product weight | 89g |
Electrical connection | Via electrical sub-base | Type of mounting | On terminal strip |
Note on materials | RoHS-compliant | Seals material | HNBR NBR |
Housing material | Wrought aluminum alloy | Manufacturer ID | 574246 |
