Product Model

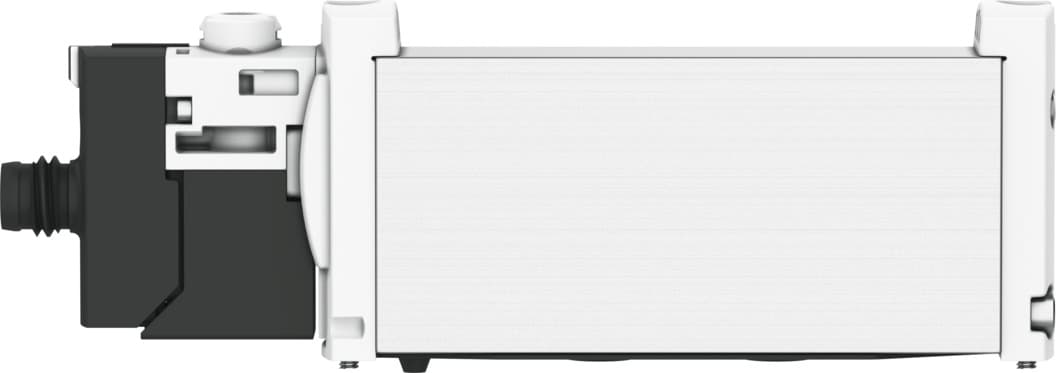

vuvg-b14-m52-azt-f-1r8l
Selling Points
- 1Compliant with ISO 13849-2 and ISO 19973 standards for reliable performance.
- 2Designed for 5/2-way valve function with a standard nominal flow rate of 520-630 l/min.
- 3Features a pneumatic spring return mechanism for consistent operation.
- 4Tested to severity level 2 according to EN 60068-2-6 and EN 60068-2-27 standards.
- 5Meets all relevant basic and well-tried safety principles as per ISO 13849-2.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Valve size | 14mm | Standard nominal flow rate | 520l/min 630l/min |
Pneumatic working port | Flange | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Reset method | Pneumatic spring | Certification | RCM compliance mark c UL us - Recognized (OL) |
Degree of protection | IP65 With plug socket | Nominal width | 5.6mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Detenting Non-detenting Covered |
Type of control | Pilot-controlled | Pilot air supply port | External |
Symbol | 00991053 | Lap | Overlap |
Pilot pressure MPa | 0.25MPa 0.8MPa | Pilot pressure | 2.5bar 8bar |
Suitability for vacuum | yes | Switching time off | 22ms |
On switching time | 14ms | Duty cycle | 100% |
Max. positive test pulse with 0 signal | 700μs | Max. negative test pulse on 1 signal | 900μs |
Coil characteristics | 24 V DC: 1.0 W | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Restricted ambient and media temperature | -5 - 50 °C Without holding power reduction |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 5 according to ISO 14644-1 |
Temperature of medium | -5°C 60°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 60°C | Product weight | 78g |
Electrical connection | Via electrical sub-base | Type of mounting | On terminal strip |
Note on materials | RoHS-compliant | Seals material | HNBR NBR |
Housing material | Wrought aluminum alloy | Manufacturer ID | 574245 |
Specifications may be subject to change without notice
