Product Model

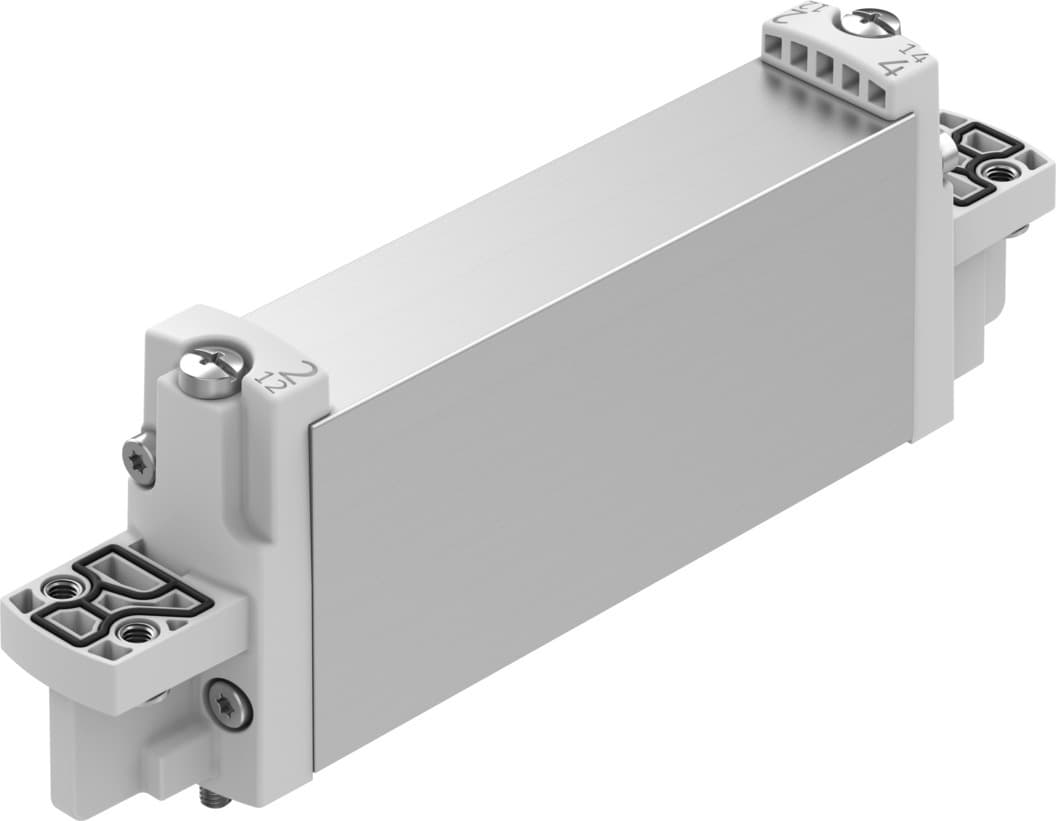

vuvg-b18-b52-z-f-p1
Selling Points
- 1Reliable Automation Solution: Designed for consistent performance in various industrial applications.
- 2Electrical Actuation: Easy to install and control with external pilot air supply.
- 3Robust Design: Built with durable materials, including wrought aluminum alloy and HNBR seals.
- 4High Flow Rate: Standard nominal flow rate of 1000 l/min for efficient pneumatic systems.
- 5Comprehensive Certifications: UL recognized and IP65 rated for enhanced safety and protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, bistable | Actuation type | Electrical |
Valve size | 18mm | Standard nominal flow rate | 1000l/min |
Pneumatic working port | Flange | Operating pressure | -0.9bar 10bar |
Structural design | Piston gate valve | Reset method | Mechanical spring |
Certification | c UL us - Recognized (OL) | Certificate issuing authority | UL MH19482 |
Degree of protection | IP65 With electrical pilot valve and plug socket | Nominal width | 7.3mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Type of control | Pilot-controlled |
Pilot air supply port | External | Symbol | 00991125 |
Lap | Overlap | Pilot pressure MPa | 0.15MPa 0.8MPa |
Pilot pressure | 1.5bar 8bar | Changeover time | 12ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 700μs |
Max. negative test pulse on 1 signal | 900μs | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 5 according to ISO 14644-1 |
Temperature of medium | -5°C 60°C | Ambient temperature | -5°C 60°C |
Product weight | 140g | Electrical connection | Via electric pilot valve |
Type of mounting | On terminal strip | Pilot interface | as per ISO 15218 |
Note on materials | RoHS-compliant | Seals material | HNBR NBR |
Housing material | Wrought aluminum alloy | Manufacturer ID | 8033567 |
Specifications may be subject to change without notice
