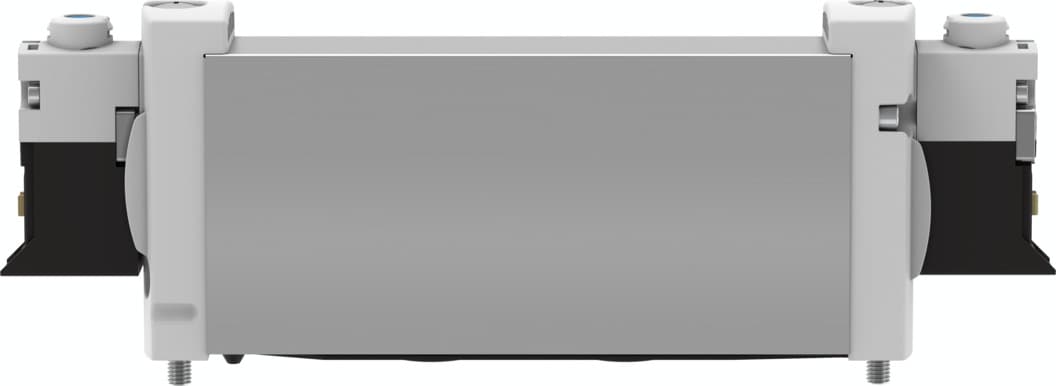

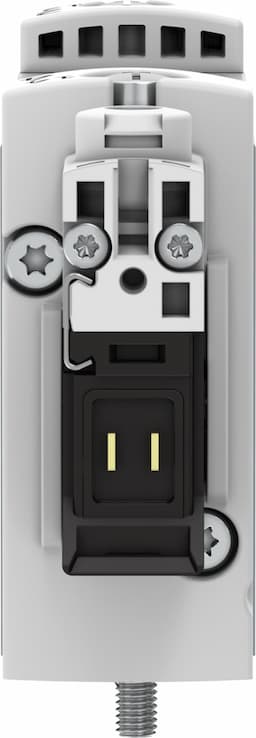

Product Model
vuvg-b18-b52-zt-f-1p3
Selling Points
- 15/2 Bistable Function: Ideal for applications requiring precise control.
- 21000 l/min Flow Rate: High standard nominal flow rate for efficient air management.
- 3Robust Design: Built with piston gate valve and soft sealing principle for durability.
- 4RCM and UL Compliance: Meets stringent safety standards with RCM trademark approval and UL recognition.
- 5Wide Operating Pressure Range: Operates from -0.09 MPa to 1 MPa, suitable for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, bistable | Actuation type | Electrical |
Valve size | 18mm | Standard nominal flow rate | 1000l/min |
Pneumatic working port | Flange | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Certification | RCM compliance mark c UL us - Recognized (OL) | Degree of protection | IP40 IP65 With plug socket |
Nominal width | 7.3mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting Non-detenting Covered | Type of control | Pilot-controlled |
Pilot air supply port | External | Symbol | 00991125 |
Lap | Overlap | Pilot pressure MPa | 0.15MPa 0.8MPa |
Pilot pressure | 1.5bar 8bar | Changeover time | 11ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 700μs |
Max. negative test pulse on 1 signal | 900μs | Coil characteristics | 24 V DC: 1.0 W 24 V DC: low-current phase 0.3 W, high-current phase 1.0 W |
Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Restricted ambient and media temperature | -5 - 50 °C Without holding power reduction | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 5 according to ISO 14644-1 | Temperature of medium | -5°C 60°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 60°C |
Product weight | 160g | Electrical connection | Via electrical sub-base |
Type of mounting | On terminal strip | Note on materials | RoHS-compliant |
Seals material | HNBR NBR | Housing material | Wrought aluminum alloy |
Manufacturer ID | 574451 |
Specifications may be subject to change without notice
