Product Model

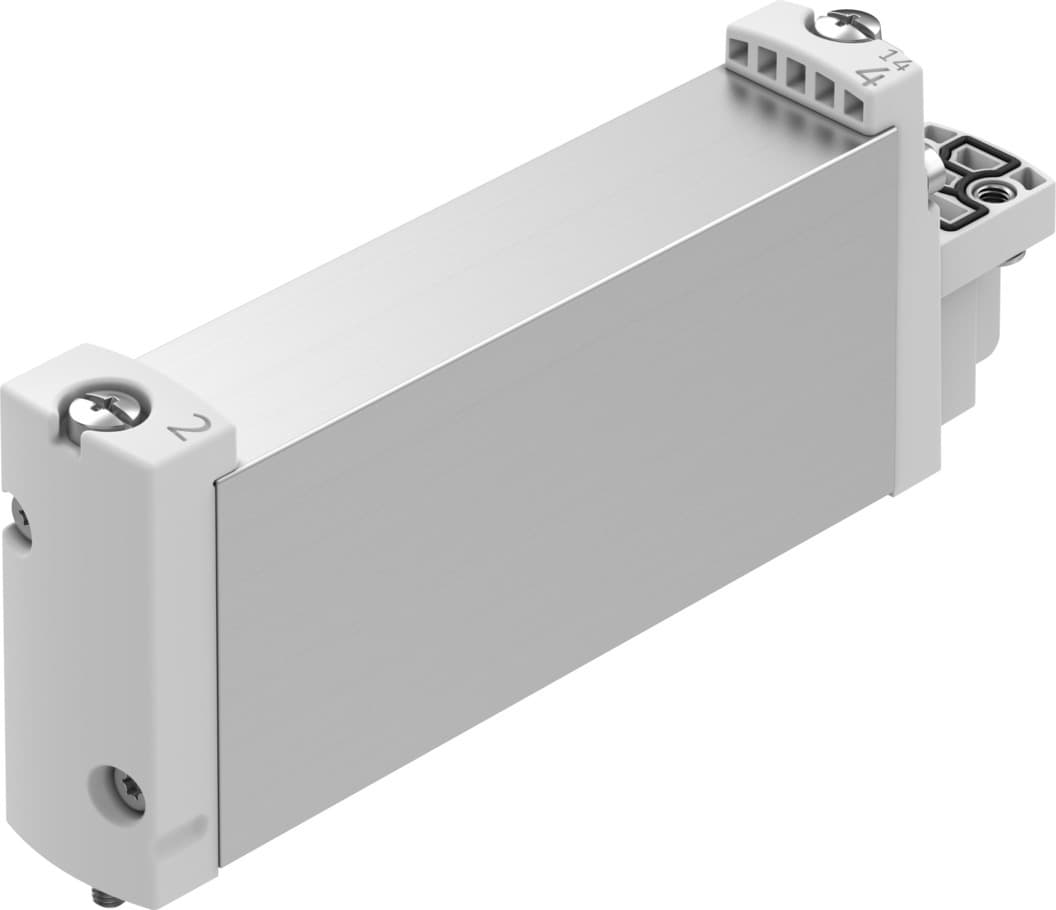

vuvg-b18-m52-mz-f-p1
Selling Points
- 1High flow rate of 1000 l/min for efficient operation.
- 25/2-way monostable valve function for precise control.
- 3Electric actuation with a compact 18 mm valve size.
- 4Robust design with mechanical spring reset and IP65 protection.
- 5Compatible with compressed air to ISO 8573-1:2010 [7:4:4] for reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Valve size | 18mm | Standard nominal flow rate | 1000l/min |
Pneumatic working port | Flange | Operating pressure | -0.9bar 10bar |
Structural design | Piston gate valve | Reset method | Mechanical spring |
Certification | c UL us - Recognized (OL) | Certificate issuing authority | UL MH19482 |
Degree of protection | IP65 With electrical pilot valve and plug socket | Nominal width | 6.9mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Type of control | Pilot-controlled |
Pilot air supply port | External | Symbol | 00991025 |
Lap | Indefinite overlap | Pilot pressure MPa | 0.3MPa 0.8MPa |
Pilot pressure | 3bar 8bar | Switching time off | 26ms |
On switching time | 14ms | Duty cycle | 100% |
Max. positive test pulse with 0 signal | 700μs | Max. negative test pulse on 1 signal | 900μs |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 5 according to ISO 14644-1 | Temperature of medium | -5°C 60°C |
Ambient temperature | -5°C 60°C | Product weight | 142g |
Electrical connection | Via electric pilot valve | Type of mounting | On terminal strip |
Pilot interface | as per ISO 15218 | Note on materials | RoHS-compliant |
Seals material | HNBR NBR | Housing material | Wrought aluminum alloy |
Manufacturer ID | 8033566 |
