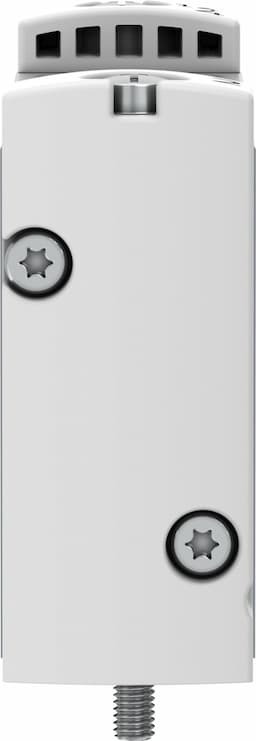

Product Model
vuvg-b18-m52-mzt-f-1p3
Selling Points
- 1High-Performance Pneumatic Solution: Designed for precise control with a 5/2 monostable function and indefinite overlap lap.
- 2Robust Design: Built with a piston gate valve and mechanical spring return for reliable operation.
- 3Versatile Mounting Options: Suitable for any mounting position with external pilot air supply port.
- 4Compliant with Safety Standards: Meets ISO 13849-2 safety principles and has a vibration resistance test with severity level 2.
- 5Efficient Flow Control: Standard nominal flow rate of 1000 l/min with soft sealing principle for minimal leakage.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Valve size | 18mm | Standard nominal flow rate | 1000l/min |
Pneumatic working port | Flange | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Reset method | Mechanical spring | Certification | RCM compliance mark c UL us - Recognized (OL) |
Degree of protection | IP40 IP65 With plug socket | Nominal width | 6.9mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Detenting Non-detenting Covered |
Type of control | Pilot-controlled | Pilot air supply port | External |
Symbol | 00991025 | Lap | Indefinite overlap |
Pilot pressure MPa | 0.3MPa 0.8MPa | Pilot pressure | 3bar 8bar |
Switching time off | 45ms | On switching time | 10ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 700μs |
Max. negative test pulse on 1 signal | 900μs | Coil characteristics | 24 V DC: 1.0 W 24 V DC: low-current phase 0.3 W, high-current phase 1.0 W |
Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Restricted ambient and media temperature | -5 - 50 °C Without holding power reduction | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 5 according to ISO 14644-1 | Temperature of medium | -5°C 60°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 60°C |
Product weight | 154g | Electrical connection | Via electrical sub-base |
Type of mounting | On terminal strip | Note on materials | RoHS-compliant |
Seals material | HNBR NBR | Housing material | Wrought aluminum alloy |
Manufacturer ID | 574450 |
Specifications may be subject to change without notice
