Product Model

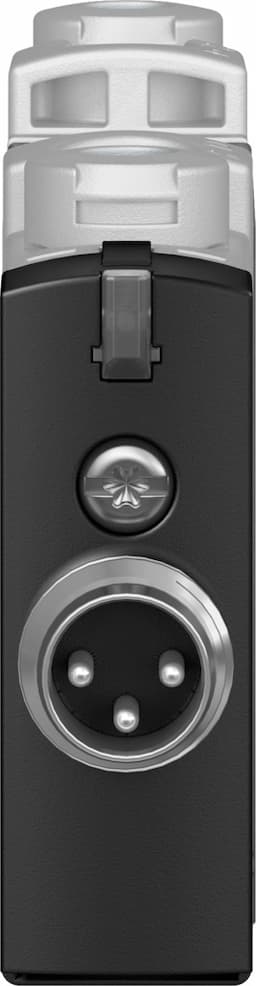

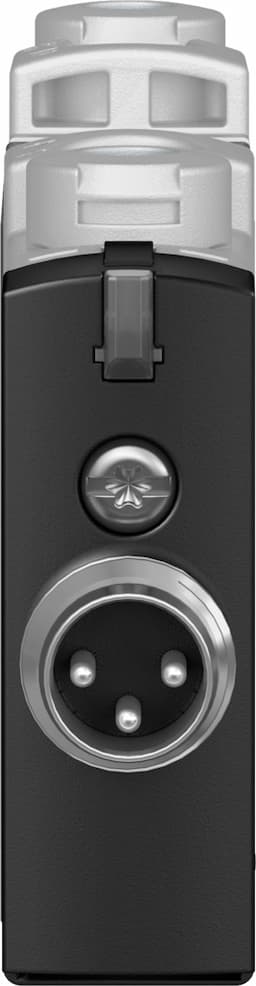

vuvg-bk10-t32c-at-f-1r8l-s
Selling Points
- 1Reliable Operation: Designed for 10 million cycles with a B10 service-life value, ensuring long-lasting performance.
- 2Precise Control: 2x3/2-way monostable valve function for precise air control and flow management.
- 3Robust Design: Compliant with ISO 13849-1 safety standards and IP65 degree of protection for durability.
- 4High Flow Rate: Standard nominal flow rate of 160L/min for efficient air handling.
- 5Versatile Mounting: Compatible with manifold rail and through-hole mounting options for flexible installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 2x3/2, closed, monostable | Actuation type | Electrical |
Valve size | 10mm | Standard nominal flow rate | 160l/min |
Pneumatic working port | Flange | Operating voltage | 24V DC |
Operating pressure | 1.5bar 7bar | Structural design | Piston slide with sealing ring |
Reset method | Pneumatic spring | Certification | c UL us - Recognized (OL) |
Certificate issuing authority | UL MH19482 | Degree of protection | IP65 |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Detenting Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | Internal |
Flow direction | Non-reversible | Symbol | 00992904 |
Lap | Overlap | Signal status display | LED |
Max. switching frequency | 2Hz | Switching time off | 14ms |
On switching time | 12ms | Duty cycle | 100% |
Max. positive test pulse with 0 signal | 1600μs | Max. negative test pulse on 1 signal | 3000μs |
Coil characteristics | 24 V DC: 0.8 W | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
Temperature of medium | -5°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 50°C | Product weight | 55g |
Electrical connection | 3-pin M8x1 A-coded as per EN 61076-2-104 Plug | Type of mounting | On terminal strip With through-hole |
Pneumatic connection 2 | Flange | Pneumatic connection 4 | Flange |
Note on materials | RoHS-compliant | Seals material | HNBR NBR |
Housing material | Wrought aluminum alloy | Manufacturer ID | 8042558 |
Specifications may be subject to change without notice
