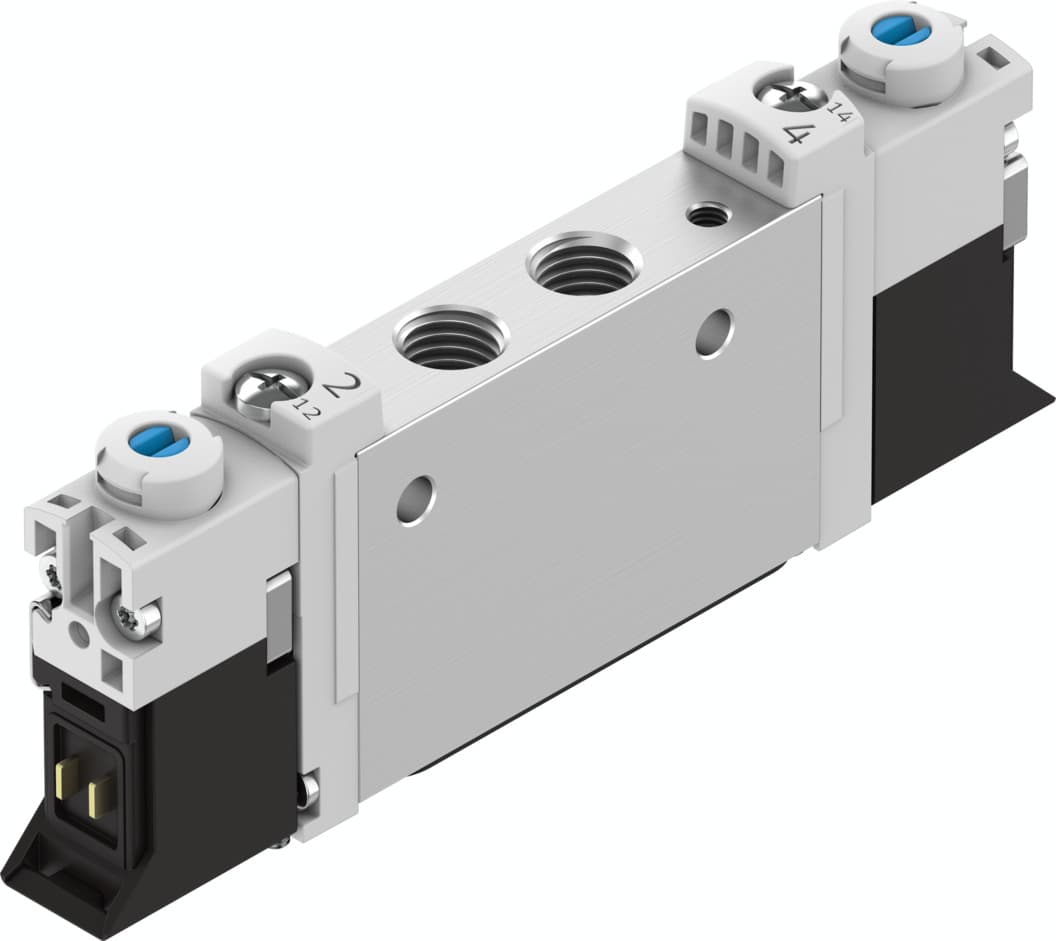

Product Model
vuvg-l10-t32c-mzt-m7-1p3
Selling Points
- 1155 l/min standard nominal flow rate ensures efficient operation.
- 210 mm valve size with soft sealing principle for reduced space requirements.
- 3Electric actuation with 24V DC operating voltage for precise control.
- 4Mountable on manifold rail or through-hole with optional manual override.
- 5Made from RoHS-compliant wrought aluminum alloy with HNBR seals for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 2x3/2, closed, monostable | Actuation type | Electrical |
Valve size | 10mm | Standard nominal flow rate | 155l/min |
Pneumatic working port | M7 | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Reset method | Mechanical spring | Certification | RCM compliance mark c UL us - Recognized (OL) |
Degree of protection | IP40 IP65 With plug socket | Nominal width | 2mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Detenting Non-detenting Covered |
Type of control | Pilot-controlled | Pilot air supply port | External |
Symbol | 00992948 | Lap | Overlap |
Pilot pressure MPa | 0.2MPa 0.8MPa | Pilot pressure | 2bar 8bar |
Suitability for vacuum | yes | Switching time off | 11ms |
On switching time | 8ms | Duty cycle | 100% |
Max. positive test pulse with 0 signal | 700μs | Max. negative test pulse on 1 signal | 900μs |
Coil characteristics | 24 V DC: 1.0 W 24 V DC: low-current phase 0.3 W, high-current phase 1.0 W | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Restricted ambient and media temperature | -5 - 50 °C Without holding power reduction |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 5 according to ISO 14644-1 |
Temperature of medium | -5°C 60°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 60°C | Product weight | 54g |

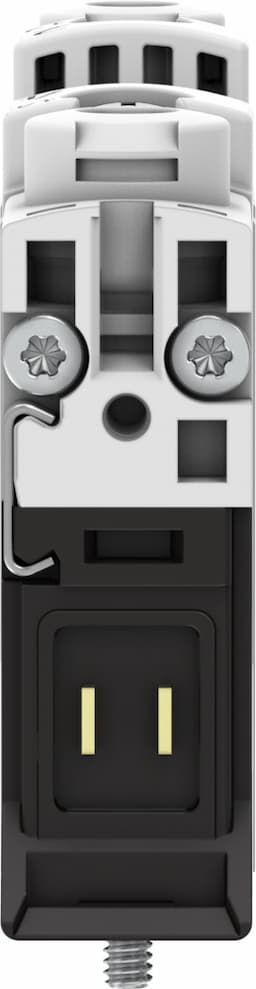

Electrical connection | Via electrical sub-base | Type of mounting | Optionally: On terminal strip With through-hole |
Pilot air port 12/14 | M3 | Pneumatic connection 1 | M7 |
Pneumatic connection 2 | M7 | Pneumatic connection 4 | M7 |
Pneumatic connection 5 | M7 | Note on materials | RoHS-compliant |
Seals material | HNBR NBR | Housing material | Wrought aluminum alloy |
Manufacturer ID | 574360 |
Specifications may be subject to change without notice
