Product Model

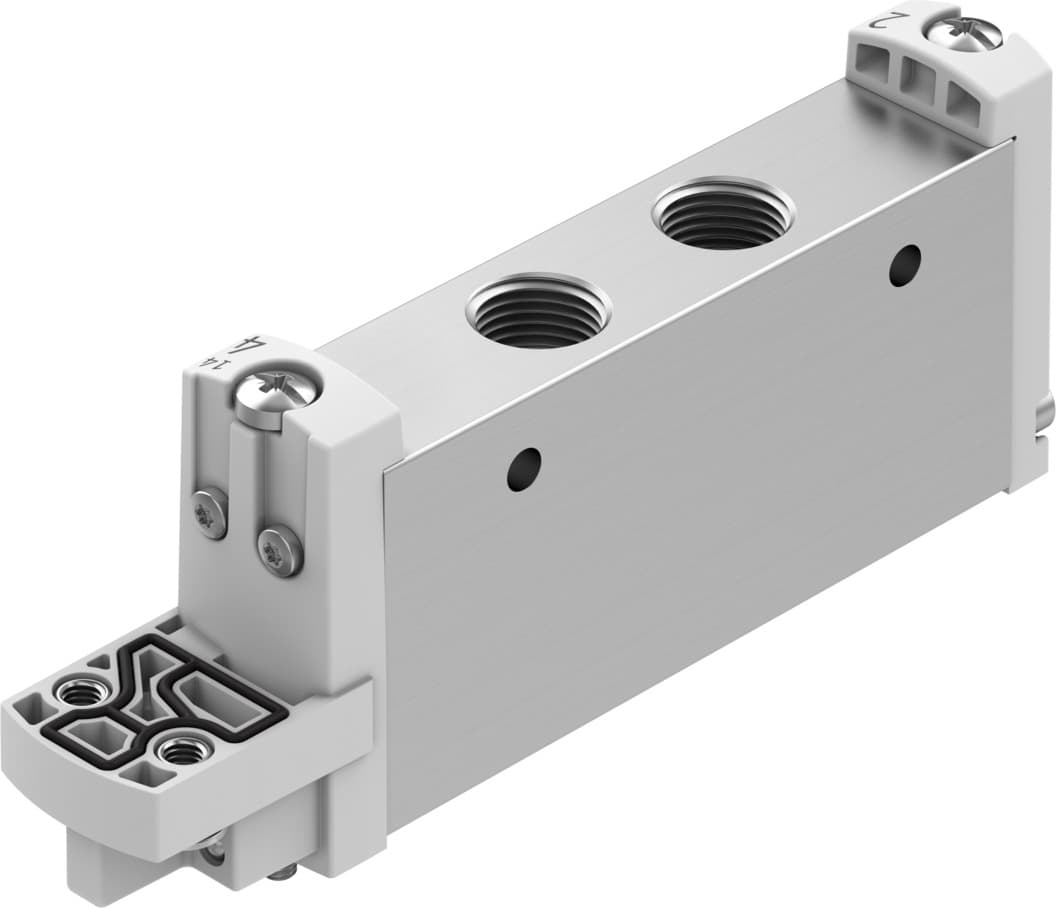

vuvg-l14-m52-a-g18-p1
Selling Points
- 1High Flow Rate: 700 l/min to 780 l/min standard nominal flow rate.
- 2Electrical Actuation: Easy to control with an electric pilot valve.
- 3Robust Design: Constructed with a piston gate valve for durability.
- 4IP65 Protection: Ensures reliable operation in harsh environments.
- 5Versatile Mounting: Can be mounted on terminal strips or through-holes for flexibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Valve size | 14mm | Standard nominal flow rate | 700l/min 780l/min |
Pneumatic working port | G1/8 | Operating pressure | 2.5bar 8bar |
Structural design | Piston gate valve | Reset method | Pneumatic spring |
Certification | c UL us - Recognized (OL) | Certificate issuing authority | UL MH19482 |
Degree of protection | IP65 With electrical pilot valve and plug socket | Nominal width | 5.6mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Type of control | Pilot-controlled |
Pilot air supply port | Internal | Symbol | 00992908 |
Lap | Overlap | Pilot pressure MPa | 0.25MPa 0.8MPa |
Pilot pressure | 2.5bar 8bar | Suitability for vacuum | no |
Switching time off | 16ms | On switching time | 16ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 700μs |
Max. negative test pulse on 1 signal | 900μs | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 5 according to ISO 14644-1 |
Temperature of medium | -5°C 60°C | Ambient temperature | -5°C 60°C |
Product weight | 66g | Electrical connection | Via electric pilot valve |
Type of mounting | Optionally: On terminal strip With through-hole | Pneumatic connection 1 | G1/8 |
Pneumatic connection 2 | G1/8 | Pneumatic connection 3 | G1/8 |
Pneumatic connection 4 | G1/8 | Pneumatic connection 5 | G1/8 |
Pilot interface | as per ISO 15218 | Note on materials | RoHS-compliant |
Seals material | HNBR NBR | Housing material | Wrought aluminum alloy |
Manufacturer ID | 8033529 |
Specifications may be subject to change without notice
