Product Model

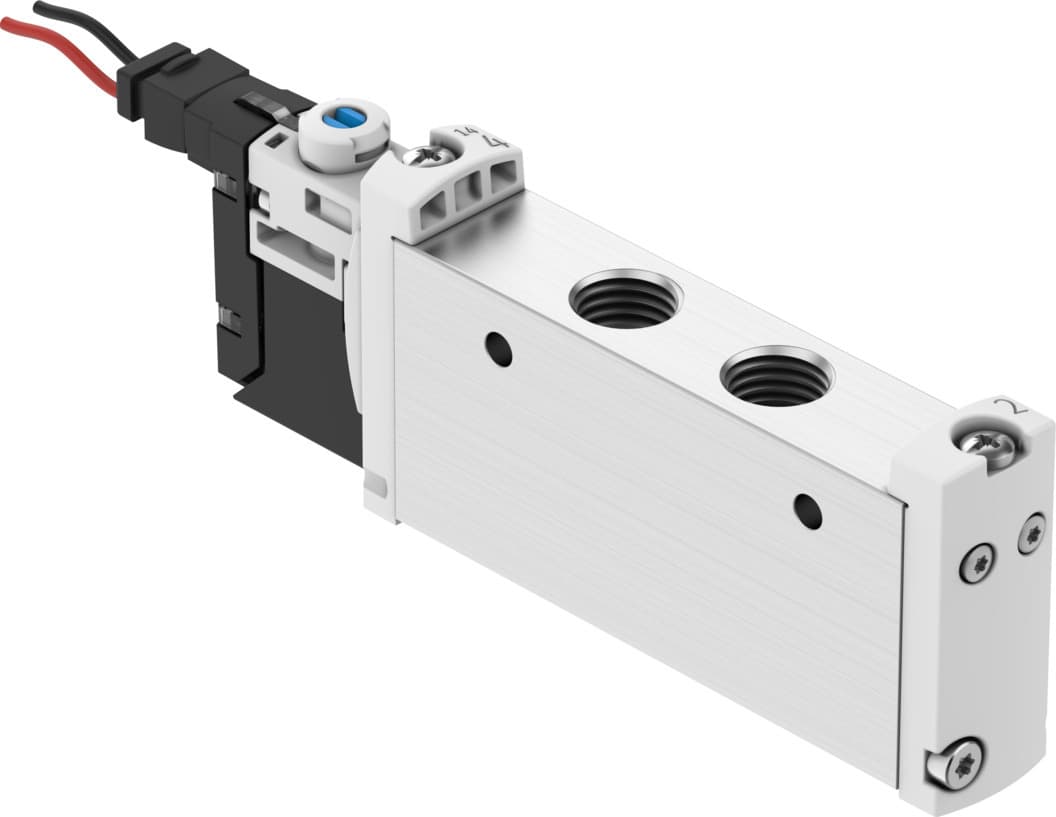

vuvg-l14-m52-at-g18-1h2l-w1
Selling Points
- 1High Flow Rate: 680-730 l/min standard nominal flow rate for efficient operation.
- 2Compact Design: 14 mm valve size for space-saving applications.
- 3Reliable Actuation: Electrical actuation ensures precise control and durability.
- 4Wide Operating Pressure Range: 2.5-8 bar operating pressure for versatile use in various environments.
- 5Robust Construction: IP40 protection class with soft sealing principle for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Valve size | 14mm | Standard nominal flow rate | 680l/min 730l/min |
Pneumatic working port | G1/8 | Operating voltage | 24V DC |
Operating pressure | 2.5bar 8bar | Structural design | Piston gate valve |
Reset method | Pneumatic spring | Certification | c UL us - Recognized (OL) |
Degree of protection | IP40 With plug socket | Nominal width | 5.6mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Detenting Non-detenting Covered |
Type of control | Pilot-controlled | Pilot air supply port | Internal |
Symbol | 00992908 | Lap | Overlap |
Pilot pressure MPa | 0.25MPa 0.8MPa | Pilot pressure | 2.5bar 8bar |
Suitability for vacuum | no | Switching time off | 22ms |
On switching time | 14ms | Duty cycle | 100% |
Max. positive test pulse with 0 signal | 700μs | Max. negative test pulse on 1 signal | 900μs |
Coil characteristics | 24 V DC: 1.0 W | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Restricted ambient and media temperature | -5 - 50 °C Without holding power reduction |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 5 according to ISO 14644-1 |
Temperature of medium | -5°C 60°C | Ambient temperature | -5°C 60°C |
Product weight | 78g | Electrical connection | Via electrical sub-base |
Type of mounting | Optionally: On terminal strip With through-hole | Pneumatic connection 1 | G1/8 |
Pneumatic connection 2 | G1/8 | Pneumatic connection 3 | G1/8 |
Pneumatic connection 4 | G1/8 | Pneumatic connection 5 | G1/8 |
Note on materials | RoHS-compliant | Seals material | HNBR NBR |
Housing material | Wrought aluminum alloy | Manufacturer ID | 576256 |
Specifications may be subject to change without notice
