Product Model

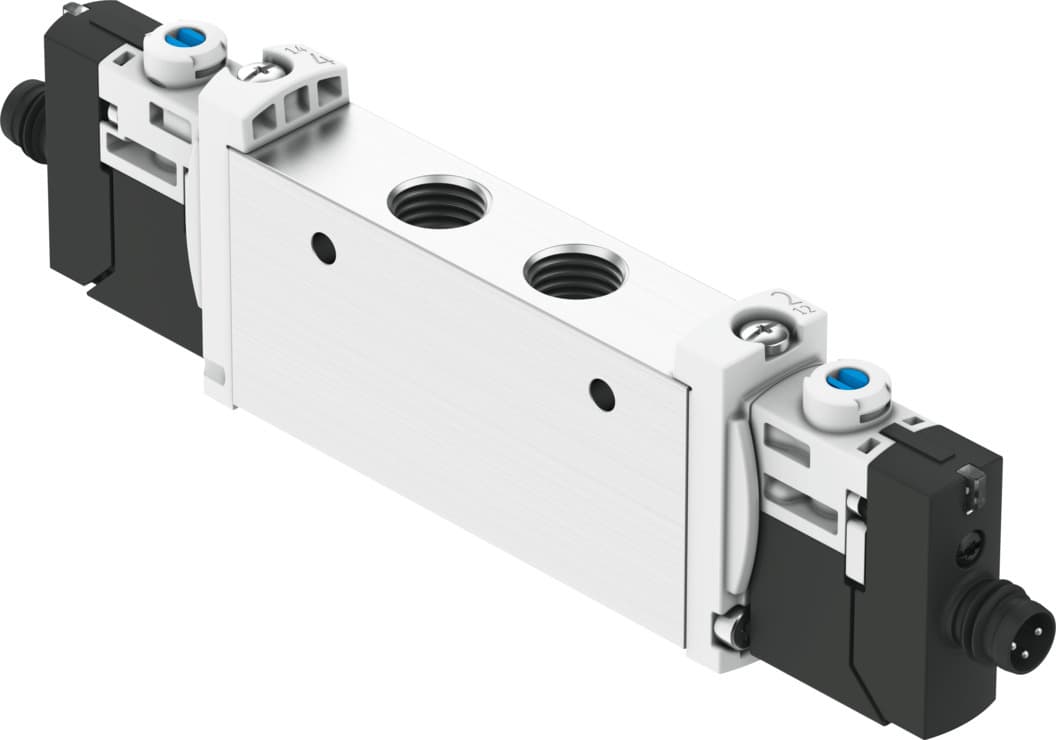

vuvg-l14-t32c-mt-g18-1r8l
Selling Points
- 1High Flow Rate: Up to 550 l/min standard nominal flow rate.
- 2Robust Design: Constructed with a piston gate valve for durability and reliability.
- 3Precise Control: Pilot-controlled operation with internal lap overlap for precise valve control.
- 4Wide Operating Range: Compatible with operating pressures from 3 bar to 8 bar and temperatures from -5°C to 60°C.
- 5Compliance and Safety: Meets RCM compliance mark c UL us – Recognized (OL) and IP65 degree of protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 2x3/2, closed, monostable | Actuation type | Electrical |
Valve size | 14mm | Standard nominal flow rate | 520l/min 550l/min |
Pneumatic working port | G1/8 | Operating voltage | 24V DC |
Operating pressure | 3bar 8bar | Structural design | Piston gate valve |
Reset method | Mechanical spring | Certification | RCM compliance mark c UL us - Recognized (OL) |
Degree of protection | IP65 With plug socket | Nominal width | 4.3mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Detenting Non-detenting Covered |
Type of control | Pilot-controlled | Pilot air supply port | Internal |
Symbol | 00995242 | Lap | Overlap |
Pilot pressure MPa | 0.35MPa 0.8MPa | Pilot pressure | 3.5bar 8bar |
Suitability for vacuum | no | Switching time off | 18ms |
On switching time | 12ms | Duty cycle | 100% |
Max. positive test pulse with 0 signal | 700μs | Max. negative test pulse on 1 signal | 900μs |
Coil characteristics | 24 V DC: 1.0 W | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Restricted ambient and media temperature | -5 - 50 °C Without holding power reduction |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 5 according to ISO 14644-1 |
Temperature of medium | -5°C 60°C | Ambient temperature | -5°C 60°C |
Product weight | 80g | Electrical connection | Via electrical sub-base |
Type of mounting | Optionally: On terminal strip With through-hole | Pneumatic connection 1 | G1/8 |
Pneumatic connection 2 | G1/8 | Pneumatic connection 4 | G1/8 |
Pneumatic connection 5 | G1/8 | Note on materials | RoHS-compliant |
Seals material | HNBR NBR | Housing material | Wrought aluminum alloy |
Manufacturer ID | 8031504 |
Specifications may be subject to change without notice
