Product Model

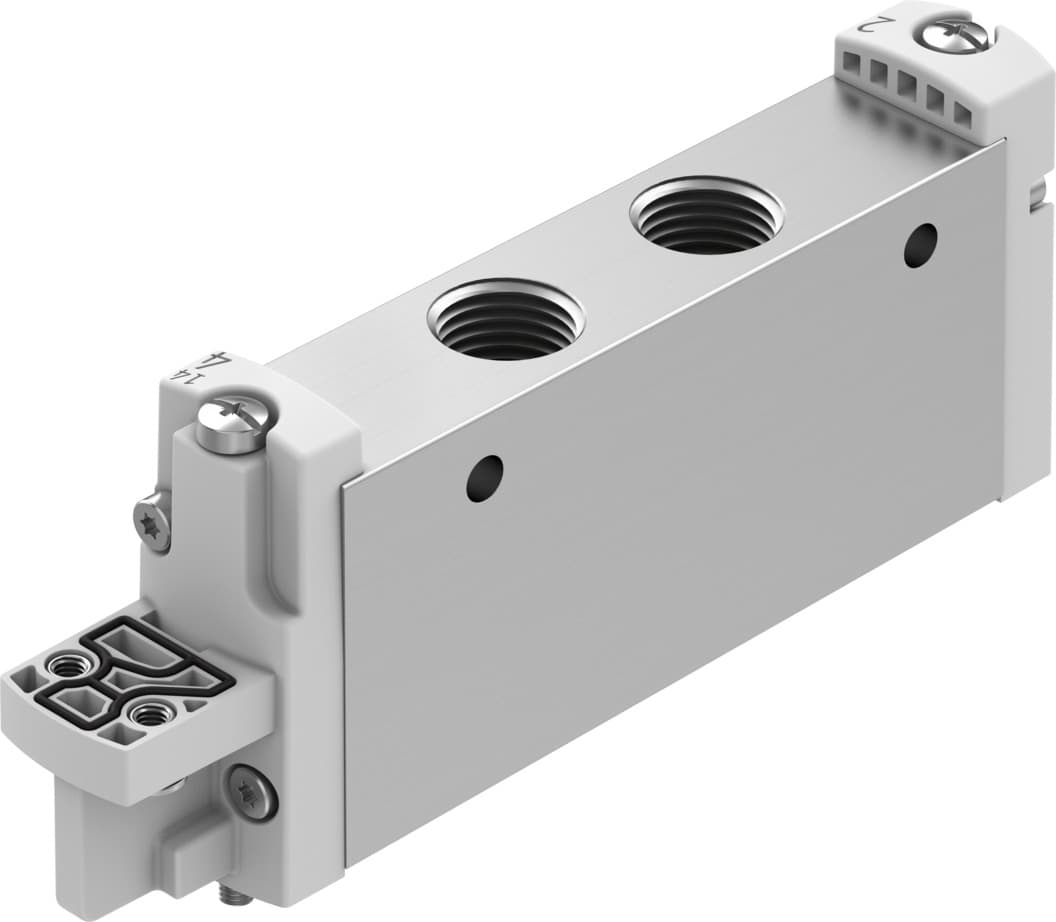

vuvg-l18-m52-r-g14-p1
Selling Points
- 15/2-way Monostable Valve Function: Efficiently controls airflow with a single solenoid.
- 2Electric Actuation: Easy to integrate with electric pilot valves for precise control.
- 3Robust Design: Built with a piston gate valve and mechanical spring reset for durability.
- 4High Flow Rate: Standard nominal flow rate of 1300 l/min for fast operation.
- 5IP65 Protection: Ensures reliable performance in harsh environments with IP65 degree of protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Valve size | 18mm | Standard nominal flow rate | 1300l/min |
Pneumatic working port | G1/4 | Operating pressure | 2.5bar 8bar |
Structural design | Piston gate valve | Reset method | Mechanical spring Pneumatic spring |
Certification | c UL us - Recognized (OL) | Certificate issuing authority | UL MH19482 |
Degree of protection | IP65 With electrical pilot valve and plug socket | Nominal width | 6.9mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Type of control | Pilot-controlled |
Pilot air supply port | Internal | Symbol | 00992233 |
Lap | Indefinite overlap | Pilot pressure MPa | 0.25MPa 0.8MPa |
Pilot pressure | 2.5bar 8bar | Switching time off | 22ms |
On switching time | 16ms | Duty cycle | 100% |
Max. positive test pulse with 0 signal | 700μs | Max. negative test pulse on 1 signal | 900μs |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 5 according to ISO 14644-1 | Temperature of medium | -5°C 60°C |
Ambient temperature | -5°C 60°C | Product weight | 142g |
Electrical connection | Via electric pilot valve | Type of mounting | Optionally: On terminal strip With through-hole |
Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G? |
Pneumatic connection 3 | G1/4 | Pneumatic connection 4 | G1/4 |
Pneumatic connection 5 | G1/4 | Pilot interface | as per ISO 15218 |
Note on materials | RoHS-compliant | Seals material | HNBR NBR |
Housing material | Wrought aluminum alloy | Manufacturer ID | 8033553 |
Specifications may be subject to change without notice
