Product Model

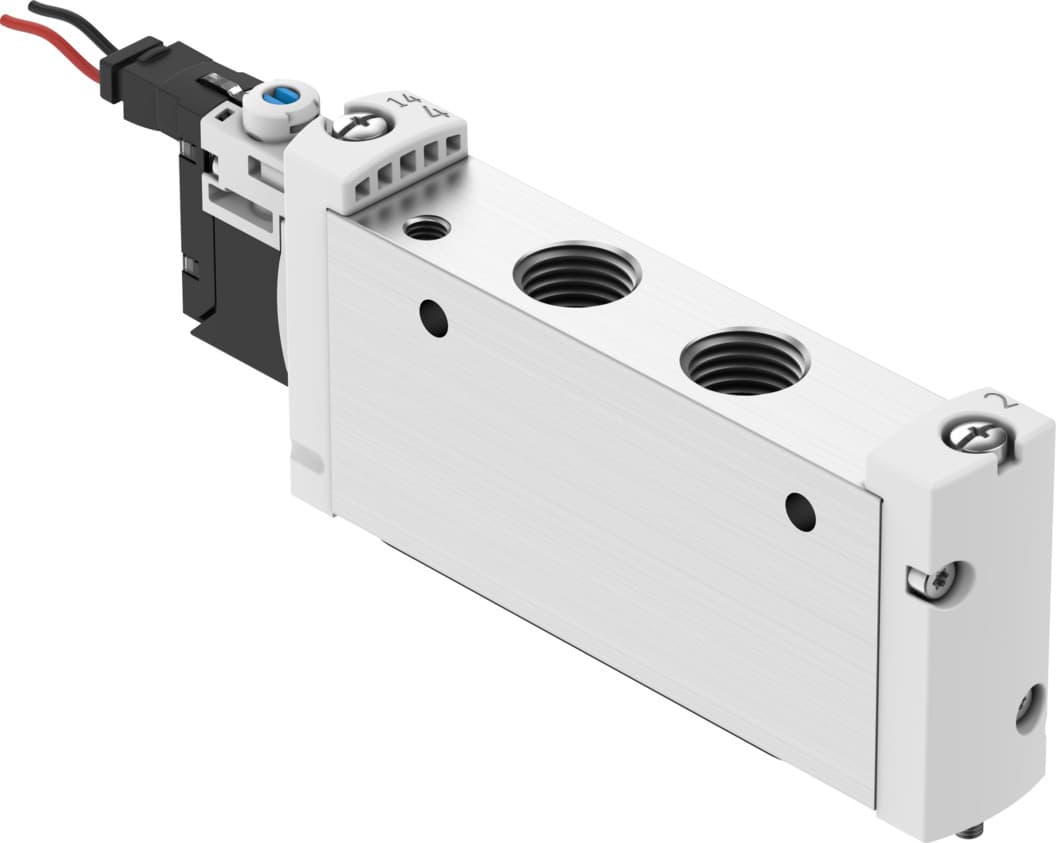

vuvg-l18-m52-rt-g14-1h2l-w1
Selling Points
- 1High flow rate of 1300 L/min for efficient operation.
- 2Compact design for space-saving installation and versatile mounting options.
- 3Electrical actuation with 24V DC, ensuring reliable and precise control.
- 4Pressure range of 2.5 to 8 bar, offering flexibility in various operating conditions.
- 5Durable construction with IP40 protection and easy maintenance features.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Valve size | 18mm | Standard nominal flow rate | 1300l/min |
Pneumatic working port | G1/4 | Operating voltage | 24V DC |
Operating pressure | 2.5bar 8bar | Structural design | Piston gate valve |
Reset method | Mechanical spring Pneumatic spring | Certification | RCM compliance mark c UL us - Recognized (OL) |
Degree of protection | IP40 With plug socket | Nominal width | 6.9mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Detenting Non-detenting Covered |
Type of control | Pilot-controlled | Pilot air supply port | Internal |
Symbol | 00992233 | Lap | Indefinite overlap |
Pilot pressure MPa | 0.25MPa 0.8MPa | Pilot pressure | 2.5bar 8bar |
Switching time off | 31ms | On switching time | 8ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 700μs |
Max. negative test pulse on 1 signal | 900μs | Coil characteristics | 24 V DC: 1.0 W |
Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Restricted ambient and media temperature | -5 - 50 °C Without holding power reduction | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 5 according to ISO 14644-1 | Temperature of medium | -5°C 60°C |
Ambient temperature | -5°C 60°C | Product weight | 154g |
Electrical connection | Via electrical sub-base | Type of mounting | Optionally: On terminal strip With through-hole |
Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G? |
Pneumatic connection 3 | G1/4 | Pneumatic connection 4 | G1/4 |
Pneumatic connection 5 | G1/4 | Note on materials | RoHS-compliant |
Seals material | HNBR NBR | Housing material | Wrought aluminum alloy |
Manufacturer ID | 578823 |
Specifications may be subject to change without notice
