Product Model

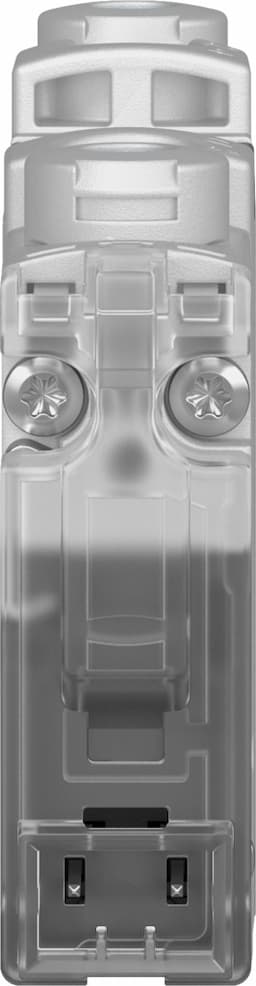

vuvg-lk10-b52-t-m7-1h2l-s
Selling Points
- 1High Flow Rate: 340 l/min standard nominal flow rate for efficient operation.
- 2Compact Design: Optimized for space-saving applications with a 10 mm valve size.
- 3Bistable Function: 5/2 valve function with bistable operation for precise control.
- 4Electric Actuation: Easy to integrate with electrical actuation for reliable operation.
- 5Wide Pressure Range: Operates between 1.5 bar and 7 bar, suitable for various industrial conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, bistable | Actuation type | Electrical |
Valve size | 10mm | Standard nominal flow rate | 340l/min |
Pneumatic working port | M7 | Operating voltage | 24V DC |
Operating pressure | 1.5bar 7bar | Structural design | Piston slide with sealing ring |
Certification | c UL us - Recognized (OL) | Certificate issuing authority | UL MH19482 |
Degree of protection | IP40 | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | Internal | Flow direction | Non-reversible |
Symbol | 00992897 | Lap | Overlap |
Signal status display | LED | Max. switching frequency | 2Hz |
Changeover time | 8ms | Duty cycle | 100% |
Max. positive test pulse with 0 signal | 1600μs | Max. negative test pulse on 1 signal | 3000μs |
Coil characteristics | 24 V DC: 0.8 W | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
Temperature of medium | -5°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 50°C | Product weight | 57g |
Electrical connection | 2-pin Connection diagram H, horizontal connection Plug | Type of mounting | On terminal strip With through-hole |
Pneumatic connection 2 | M7 | Pneumatic connection 4 | M7 |
Note on materials | RoHS-compliant | Seals material | HNBR NBR |
Housing material | Wrought aluminum alloy | Manufacturer ID | 8042548 |
Specifications may be subject to change without notice
