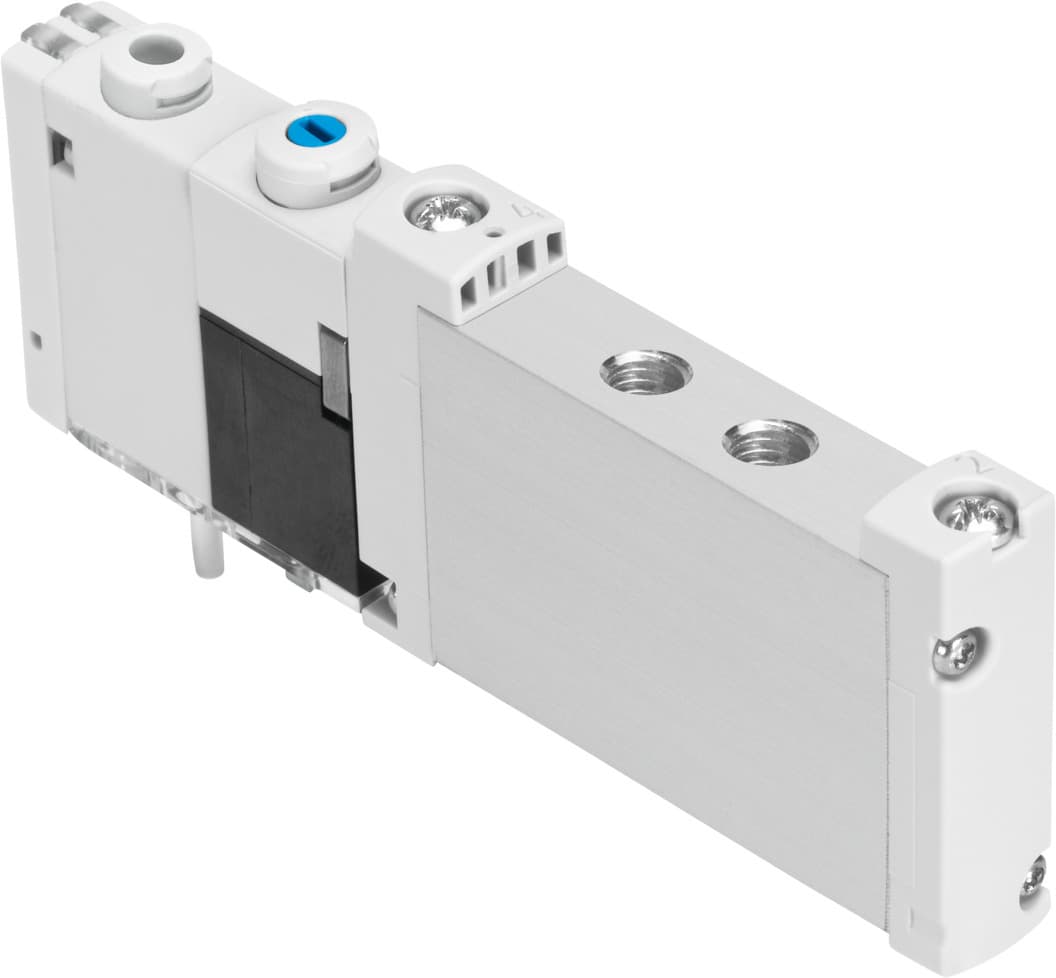

Product Model
vuvg-s10-m52-mzt-m5-1t1l
Selling Points
- 15/2-way monostable valve function for precise control.
- 2Electric actuation for efficient operation.
- 310 mm valve size for compact installations.
- 4230 l/min standard nominal flow rate for high performance.
- 5IP65 and IP67 protection for durability in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Valve size | 10mm | Standard nominal flow rate | 230l/min |
Pneumatic working port | M5 | Operating voltage | 24V DC |
Operating pressure | -0.9bar 8bar | Structural design | Piston gate valve |
Reset method | Mechanical spring | Certification | c UL us - Recognized (OL) |
Degree of protection | IP65 IP67 | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | External | Flow direction | Reversible |
Symbol | 00991025 | Lap | Overlap |
Signal status display | LED | Pilot pressure MPa | 0.3MPa 0.8MPa |
Pilot pressure | 3bar 8bar | Max. switching frequency | 3Hz |
Switching time off | 30ms | On switching time | 12ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 1600μs |
Max. negative test pulse on 1 signal | 3000μs | Coil characteristics | 22 V DC: 1.0 W |
Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 60°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 60°C |
Product weight | 53g | Electrical connection | Via sub-base |
Type of mounting | On terminal strip | Pneumatic connection 2 | M5 |
Pneumatic connection 4 | M5 | Note on materials | RoHS-compliant |
Seals material | HNBR NBR | Housing material | Wrought aluminum alloy |
Manufacturer ID | 573393 |
