Product Model
vuvg-s10-m52-rzt-m7-1t1l
Selling Points
- 1High Flow Rate: 330 l/min standard nominal flow rate for efficient operation.
- 2Electrical Actuation: Easy to control with 24V DC, ensuring precise valve operation.
- 3Robust Design: Constructed with a piston gate valve and mechanical/pneumatic spring reset method for durability.
- 4IP65 and IP67 Protection: Durable in harsh environments with high protection against dust and water.
- 5Reversible Flow Direction: Suitable for applications requiring reversible airflow control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Valve size | 10mm | Standard nominal flow rate | 330l/min |
Pneumatic working port | M7 | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Reset method | Mechanical spring Pneumatic spring | Certification | c UL us - Recognized (OL) |
Degree of protection | IP65 IP67 | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | External | Flow direction | Reversible |

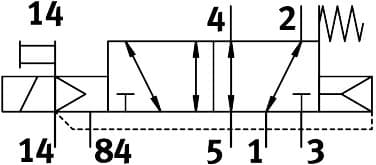

Symbol | 00992849 | Lap | Overlap |
Signal status display | LED | Pilot pressure MPa | 0.15MPa 0.8MPa |
Pilot pressure | 1.5bar 8bar | Max. switching frequency | 3Hz |
Switching time off | 21ms | On switching time | 9ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 1600μs |
Max. negative test pulse on 1 signal | 3000μs | Coil characteristics | 22 V DC: 1.0 W |
Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 60°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 60°C |
Product weight | 53g | Electrical connection | Via sub-base |
Type of mounting | On terminal strip | Pneumatic connection 2 | M7 |
Pneumatic connection 4 | M7 | Note on materials | RoHS-compliant |
Seals material | HNBR NBR | Housing material | Wrought aluminum alloy |
Manufacturer ID | 573404 |
Specifications may be subject to change without notice
