Product Model
vuvg-s10-t32c-azt-m7-1t1l
Selling Points
- 110 mm valve size for space-efficient installations.
- 2Standard nominal flow rate of 160 l/min for efficient pneumatic operations.
- 3Built with wrought aluminum alloy and soft seals for durability and reliability.
- 4External lap overlap control with LED signal status display for precise control.
- 5Compatible with operating pressures from 1.5 bar to 10 bar and temperatures from -5°C to 60°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 2x3/2, closed, monostable | Actuation type | Electrical |
Valve size | 10mm | Standard nominal flow rate | 160l/min |
Pneumatic working port | M7 | Operating voltage | 24V DC |
Operating pressure | 1.5bar 10bar | Structural design | Piston gate valve |
Reset method | Pneumatic spring | Certification | c UL us - Recognized (OL) |
Degree of protection | IP65 IP67 | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting Non-detenting | Type of control | Pilot-controlled |

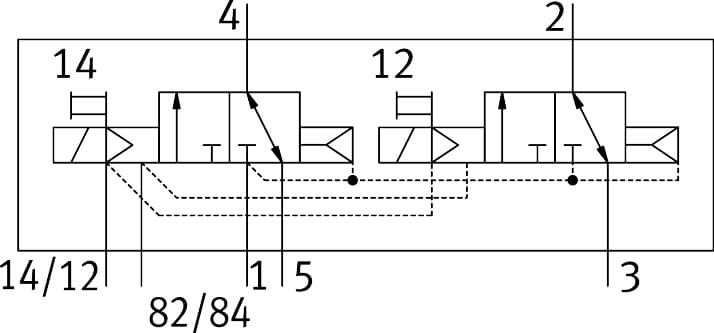

Pilot air supply port | External | Symbol | 00992905 |
Lap | Overlap | Signal status display | LED |
Pilot pressure MPa | 0.15MPa 0.8MPa | Pilot pressure | 1.5bar 8bar |
Max. switching frequency | 3Hz | Switching time off | 20ms |
On switching time | 8ms | Duty cycle | 100% |
Max. positive test pulse with 0 signal | 1600μs | Max. negative test pulse on 1 signal | 3000μs |
Coil characteristics | 22 V DC: 1.0 W | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 60°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 60°C | Product weight | 59g |
Electrical connection | Via sub-base | Type of mounting | On terminal strip |
Pneumatic connection 2 | M7 | Pneumatic connection 4 | M7 |
Note on materials | RoHS-compliant | Seals material | HNBR NBR |
Housing material | Wrought aluminum alloy | Manufacturer ID | 573398 |
Specifications may be subject to change without notice
