Product Model
vuvg-s10-t32h-azt-m5-1t1l
Selling Points
- 1High Performance: 2x3/2-way operation with a standard nominal flow rate of 150 l/min.
- 2Robust Design: Constructed with a piston gate valve and pneumatic spring return for reliable operation.
- 3Wide Pressure Range: Compatible with operating pressures from 1.5 bar to 10 bar.
- 4Advanced Sealing: Soft sealing principle ensures efficient and reliable operation.
- 5Versatile Mounting: Suitable for any mounting position with detenting and non-detenting manual override options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 2x3/2, open/closed, monostable | Actuation type | Electrical |
Valve size | 10mm | Standard nominal flow rate | 150l/min |
Pneumatic working port | M5 | Operating voltage | 24V DC |
Operating pressure | 1.5bar 10bar | Structural design | Piston gate valve |
Reset method | Pneumatic spring | Certification | c UL us - Recognized (OL) |
Degree of protection | IP65 IP67 | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting Non-detenting | Type of control | Pilot-controlled |

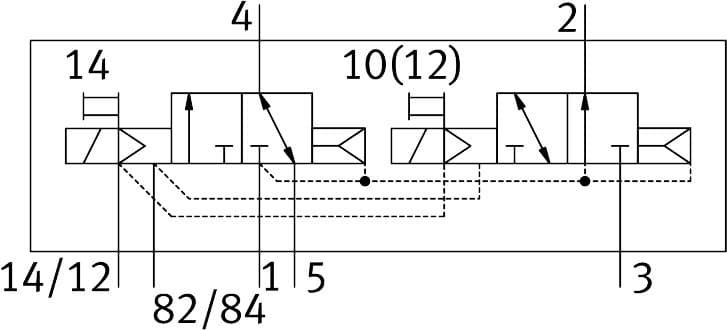

Pilot air supply port | External | Symbol | 00992909 |
Lap | Overlap | Signal status display | LED |
Pilot pressure MPa | 0.15MPa 0.8MPa | Pilot pressure | 1.5bar 8bar |
Max. switching frequency | 3Hz | Switching time off | 20ms |
On switching time | 8ms | Duty cycle | 100% |
Max. positive test pulse with 0 signal | 1600μs | Max. negative test pulse on 1 signal | 3000μs |
Coil characteristics | 22 V DC: 1.0 W | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 60°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 60°C | Product weight | 59g |
Electrical connection | Via sub-base | Type of mounting | On terminal strip |
Pneumatic connection 2 | M5 | Pneumatic connection 4 | M5 |
Note on materials | RoHS-compliant | Seals material | HNBR NBR |
Housing material | Wrought aluminum alloy | Manufacturer ID | 573388 |
Specifications may be subject to change without notice
