Product Model
vuvg-s14-b52-zt-g18-1t1l
Selling Points
- 1The VUVG-S14-B52-ZT-G18-1T1L is a compact, all-purpose solenoid valve designed for easy integration into various systems.
- 2With a standard nominal flow rate of 630 l/min, this valve ensures efficient fluid control in demanding applications.
- 3Electrically actuated for precise control and reliability, making it ideal for automated processes.
- 4Built with a piston gate valve design and IP65/IP67 protection, ensuring durability and resistance to harsh environments.
- 5Can be mounted on manifold rails or any other suitable surface, offering flexibility in installation options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, bistable | Actuation type | Electrical |
Valve size | 14mm | Standard nominal flow rate | 630l/min |
Pneumatic working port | G1/8 | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Certification | c UL us - Recognized (OL) | Degree of protection | IP65 IP67 |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Detenting Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | External |

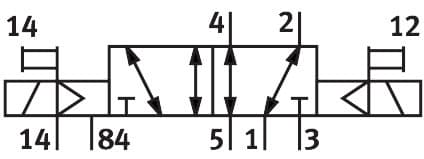

Flow direction | Reversible | Symbol | 00991125 |
Lap | Overlap | Signal status display | LED |
Pilot pressure MPa | 0.15MPa 0.8MPa | Pilot pressure | 1.5bar 8bar |
Max. switching frequency | 3Hz | Changeover time | 9ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 1600μs |
Max. negative test pulse on 1 signal | 3000μs | Coil characteristics | 22 V DC: 1.0 W |
Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 60°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 60°C |
Product weight | 98g | Electrical connection | Via sub-base |
Type of mounting | On terminal strip | Pneumatic connection 2 | G1/8 |
Pneumatic connection 4 | G1/8 | Note on materials | RoHS-compliant |
Seals material | HNBR NBR | Housing material | Wrought aluminum alloy |
Manufacturer ID | 573472 |
Specifications may be subject to change without notice
