Product Model
vuvg-s14-p53c-zt-g18-1t1l
Selling Points
- 1High Flow Rate: 590 l/min standard nominal flow rate for efficient air control.
- 2Robust Design: Constructed with a piston gate valve and mechanical spring reset for durability.
- 3Electrical Actuation: Easy to operate with 24V DC electrical actuation.
- 4IP65/IP67 Protection: Durable against dust and water, ensuring reliable operation in harsh environments.
- 5Versatile Mounting: Can be mounted on manifold rails or via sub-base for flexible installation options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/3, closed | Actuation type | Electrical |
Valve size | 14mm | Standard nominal flow rate | 590l/min |
Pneumatic working port | G1/8 | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Reset method | Mechanical spring | Certification | c UL us - Recognized (OL) |
Degree of protection | IP65 IP67 | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | External | Flow direction | Reversible |

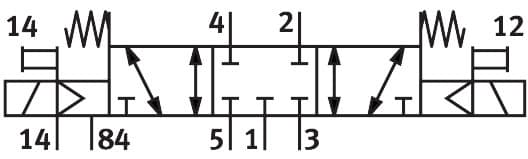

Symbol | 00991126 | Lap | Overlap |
Signal status display | LED | Pilot pressure MPa | 0.3MPa 0.8MPa |
Pilot pressure | 3bar 8bar | Max. switching frequency | 3Hz |
Switching time off | 42ms | On switching time | 15ms |
Changeover time | 25ms | Duty cycle | 100% |
Max. positive test pulse with 0 signal | 1600μs | Max. negative test pulse on 1 signal | 3000μs |
Coil characteristics | 22 V DC: 1.0 W | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -5°C 60°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 60°C | Product weight | 95g |
Electrical connection | Via sub-base | Type of mounting | On terminal strip |
Pneumatic connection 2 | G1/8 | Pneumatic connection 4 | G1/8 |
Note on materials | RoHS-compliant | Seals material | HNBR NBR |
Housing material | Wrought aluminum alloy | Manufacturer ID | 573473 |
Specifications may be subject to change without notice
